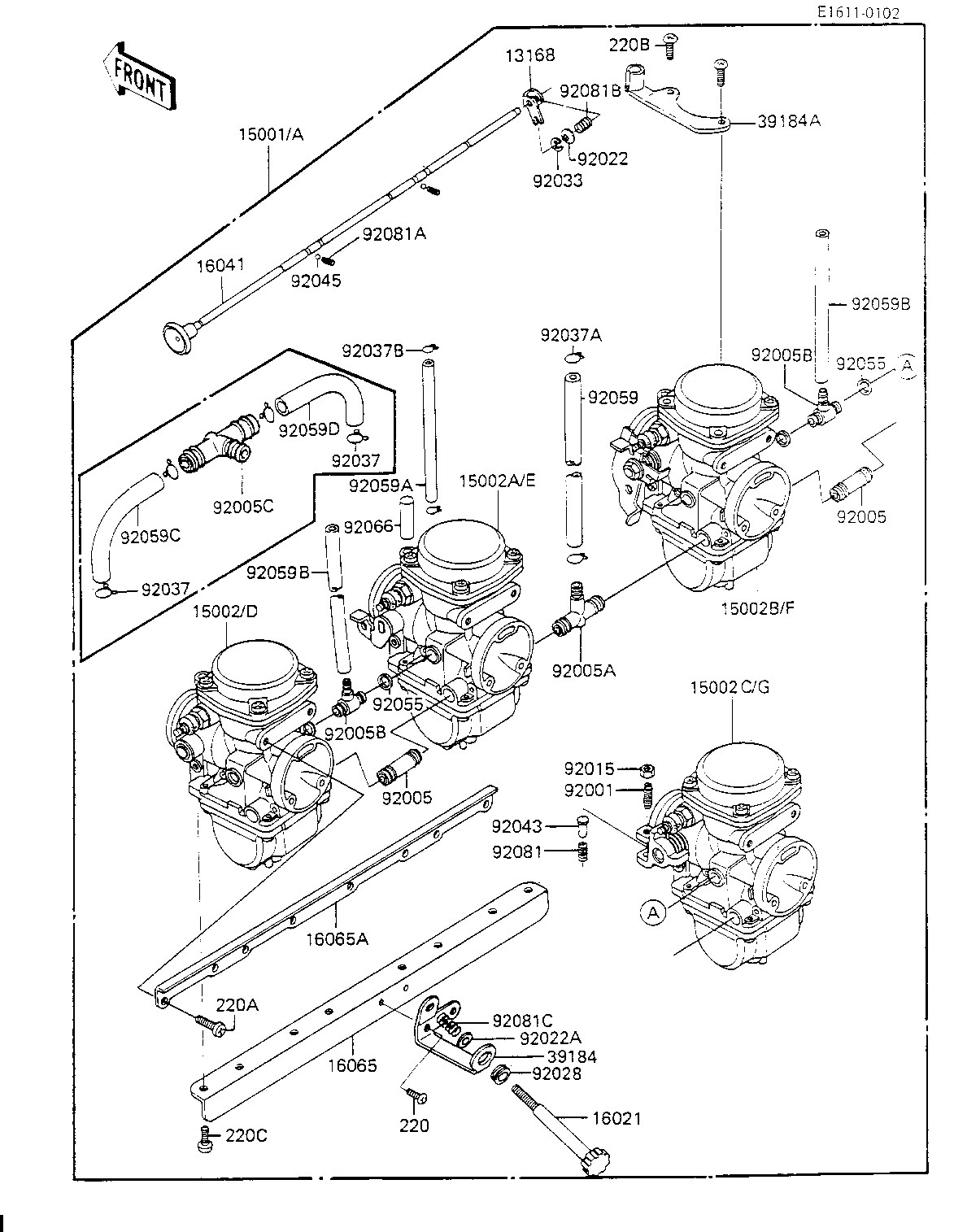

1984 KZ700-A1 - CARBURETOR ASSY

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER,CHOCK 13168 13168-1091 4
CARBURETOR-ASSY 15001 15001-1088 1 US
CARBURETOR-ASSY 15001A 15001-1089 1 CA
CARBURETOR,LH,OUTSID 15002 15002-1114 1 US
CARBURETOR,LH,INSIDE 15002A 15002-1115 1 US
CARBURETOR,RH,INSIDE 15002B 15002-1116 1 US
CARBURETOR,RH,OUTSID 15002C 15002-1117 1 US
CARBURETOR,LH,OUTSID 15002D 15002-1118 1 CA
CARBURETOR,LH,INSIDE 15002E 15002-1119 1 CA
CARBURETOR,RH,INSIDE 15002F 15002-1120 1 CA
CARBURETOR,RH,OUTSID 15002G 15002-1121 1 CA
SCREW-THROTTLE STOP 16021 16021-1103 1
SHAFT-CARBURETOR,CHO 16041 16041-1024 1
HOLDER-CARBURETOR,LW 16065 16065-1043 1
HOLDER-CARBURETOR,UP 16065A 16065-1044 1
BRACKET-ASSY,IDLING 39184 39184-1007 1
BRACKET-ASSY,THROTTL 39184A 39184-1009 1
BOLT,ADJUSTING 92001 92001-1447 3
FITTING,FUEL 92005 92005-1035 2
FITTING,FUEL 92005A 92005-1036 1
FITTING,AIR VENT 92005B 92005-1045 2
FITTING,T-TYPE 92005C 92005-1135 1 CA
NUT,THROTTLE VLV ADS 92015 92015-1119 3
WASHER,SPRING 92022 92022-1255 4
WASHER,THROTTLE STOP 92022A 92022-1491 1
BUSHING,IDLING ADJUS 92028 92028-1266 1
RING-SNAP,E 92033 92033-1066 4
CLAMP-PIPE 92037 92037-072 4 CA
CLAMP,HOSE 92037A 92037-1184 2
CLAMP,BREATHER HOSE 92037B 92037-174 2
PIN,THROTTLE VALVE 92043 92043-1079 3
BALL,STEEL,1/8" 92045 600A0400 2
"0" RING 92055 92055-510 4
TUBE,7.5X12.5X225 92059 92059-1123 1
TUBE,5X9X150 92059A 92059-1188 1
TUBE,6.5X9.5X220 92059B 92059-1261 2 US
TUBE,6.5X10.5X175 92059C 92059-1446 1 CA
TUBE,6.5X10.5X125 92059D 92059-1447 1 CA
RUBBER PLUG 92066 92068-006 1 US
SPRING,THROTTLE VALV 92081 92081-1259 3
SPRING,FAST IDLE SHF 92081A 92081-1260 2
SPRING,CHOCK SHAFT 92081B 92081-1364 4
SPRING,IDLING ADJUST 92081C 92081-1377 1
SCREW PAN HEAD 5X8 220 220B0508 1
SCREW PAN HEAD 5X10 220A 220B0510 8
SCREW PAN HEAD 5X12 220B 220B0512 2
SCREW PAN HEAD 6X14 220C 220B0614 8
