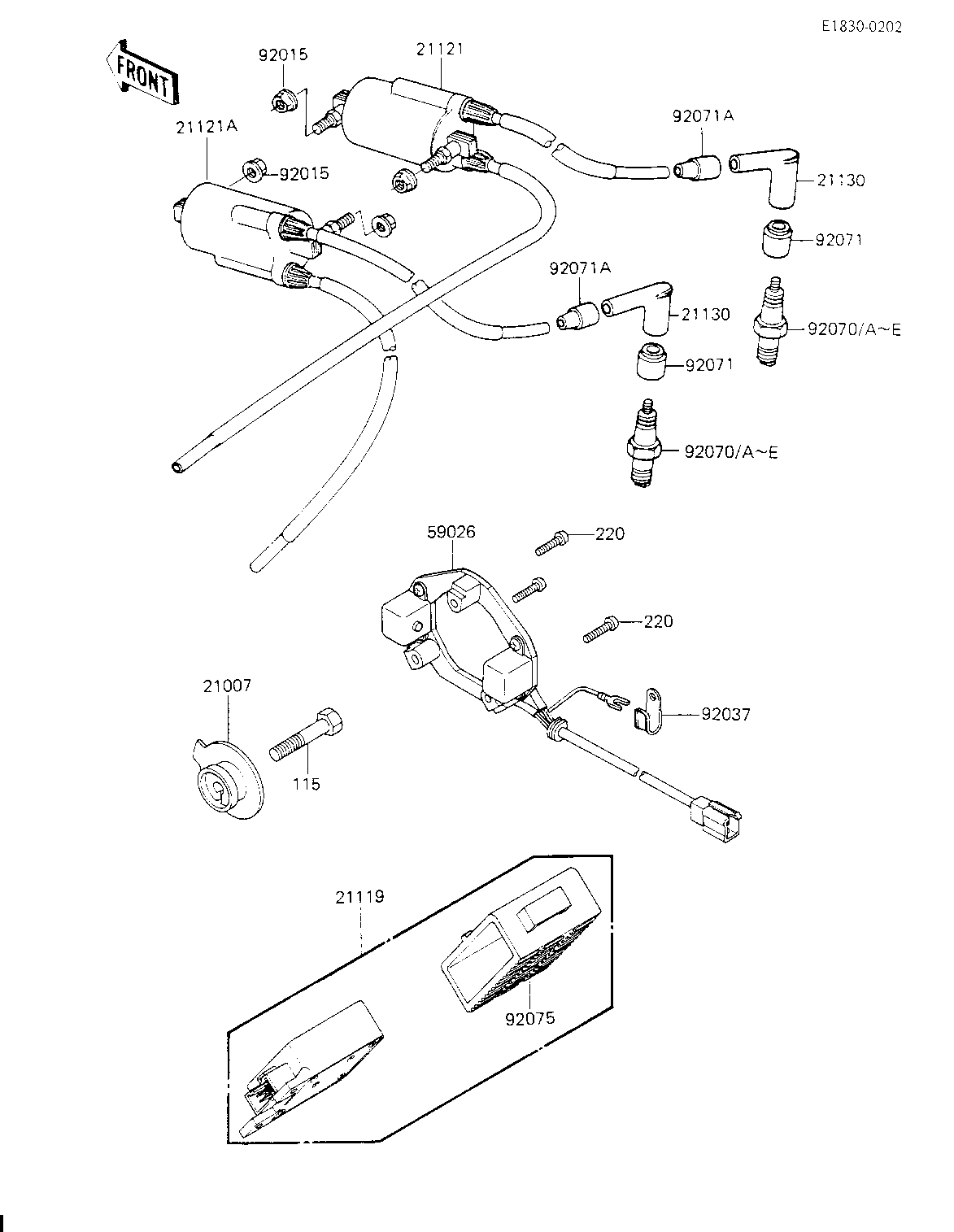

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROTOR,PULSING COIL 21007 21007-1108 1
IGNITER 21119 21119-1109 1
COIL,IGNITION #1.#4 21121 21121-1027 1
COIL,IGNITION #2.#3 21121A 21121-1028 1
CAP-SPARK PLUG,RTFM2 21130 21130-1007 4
COIL-PULSING 59026 59026-1058 1
NUT-6MM 92015 92015-1078 4
CLAMP,WIRING HARNESS 92037 21126-008 2
SPARK PLUG B8ES 92070 B8ES 4
SPARK PLUG B9ES 92070A B9ES AR (OPTION)
SPARK PLUG B7ES 92070B B7ES AR (OPTION)
GROMMET-PLUG CAP,A 92071 21131-004 4
GROMMET,SPARK PLG CA 92071A 21132-005 4
DAMPER,IGNITER 92075 92075-1504 1
BOLT-SMALL-UPSET 115 115G0845 1
SCREW-PAN-CROS,5X25 220 220B0525 3
