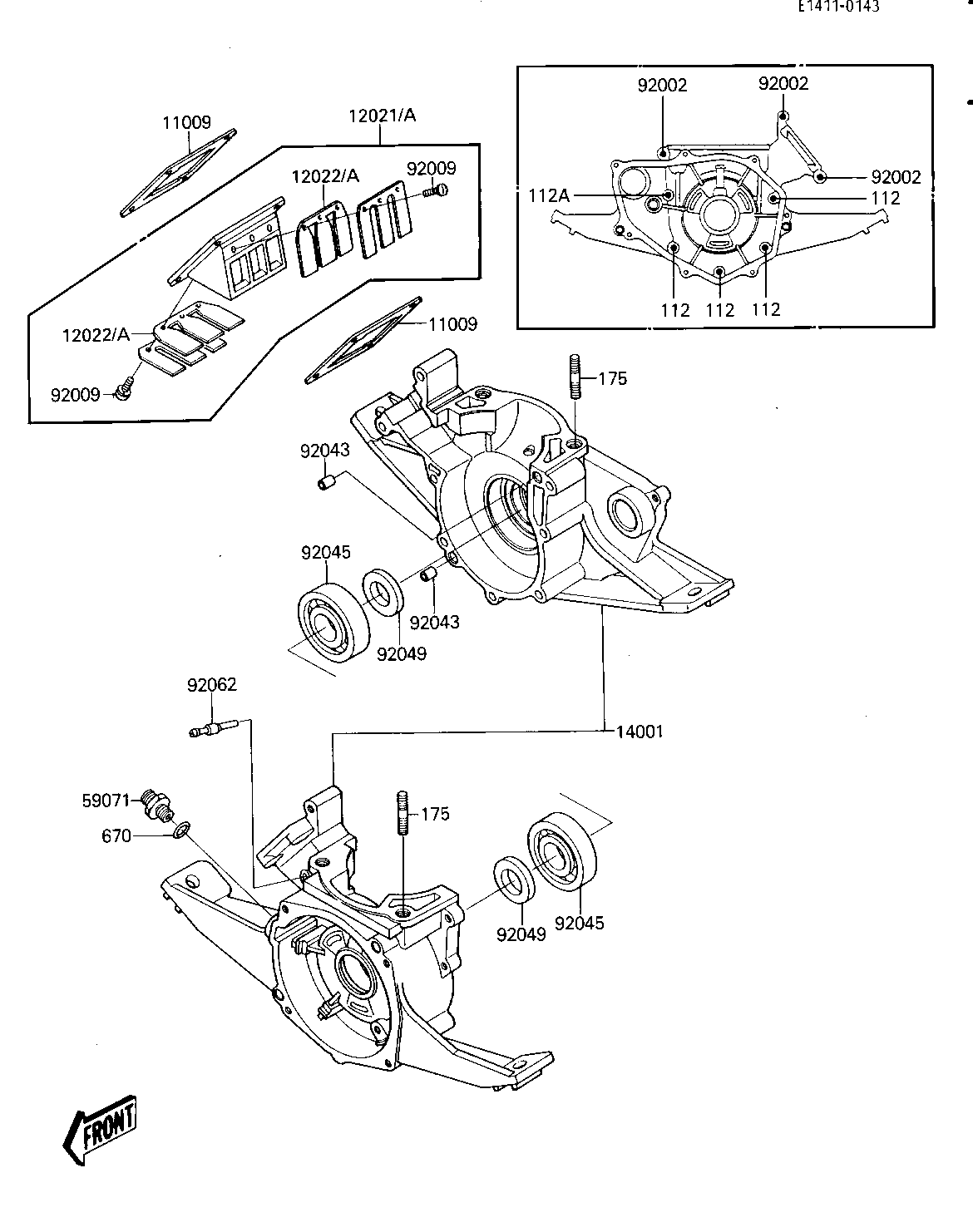

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,REED VALVE 11009 11060-3703 2
VALVE ASSY,REED 12021 12021-1007 1
VALVE-REED 12022 12022-1001 2
SET-CRANKCASE 14001 14001-5199 1
JOINT 59071 59071-3001 1
BOLT,6X45 92002 92002-3717 3
SCREW,REED VALVE 92009 92009-1014 6
PIN-DOWEL 92043 92042-007 2
BEARING,BALL,#6305SH2 92045 92045-1024 2
OIL SEAL 92049 92049-1047 2
NOZZLE 92062 92062-3703 1
BOLT-UPSET 112 112H0645 4
BOLT-UPSET 112A 112H0665 1
BOLT-STUD-FINE 175 175R1035 4
"0" RING,16MM 670 670B2016 1
