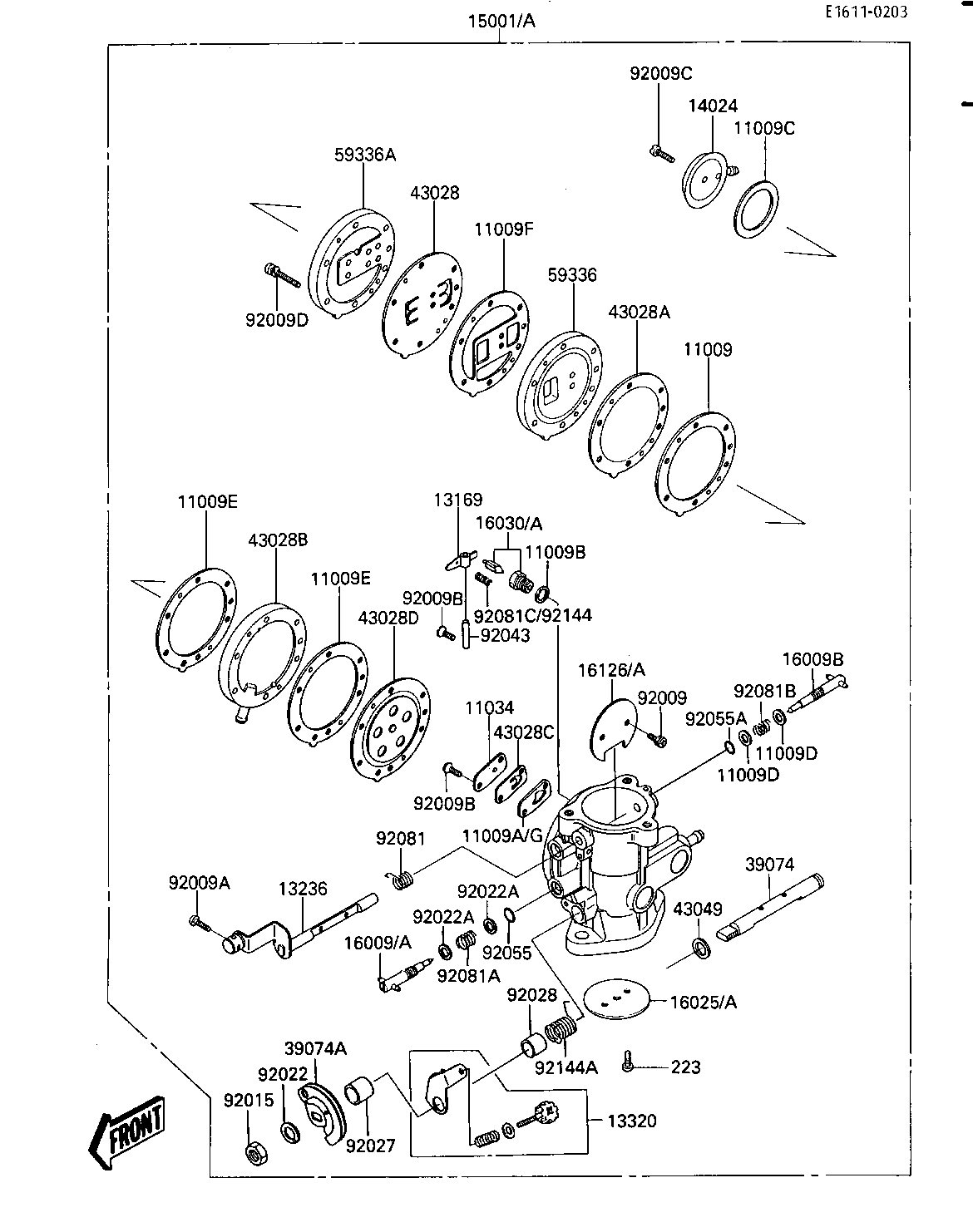

1987 JS300 - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11009 11009-3036 1
GASKET 11009A 11009-3734 1
WASHER FLOAT VLV SEAT 11009B 16029-004 1
GASKET 11009C 92065-526 1
WASHER 11009D 92065-528 2
GASKET 11009E 11060-3704 2
GASKET 11009F 11060-3705 1
PLATE-CARB. SIDE 11034 59086-541 1
ARM 13169 59001-506 1
LEVER-COMP,CHOKE 13236 13236-3701 1
LEVER-ASSY,THROTTLE 13320 13320-3701 1
COVER,CARBURETOR 14024 14024-3721 1
CARBURETOR-ASSY 15001 15001-3728 1
NEEDLE-JET,PILOT SCRE 16009 16009-2092 1
SCREW,HIGH SPEED 16009B 16009-3002 1
VALVE-THROTTLE,#140 16025A 16025-3702 1
VALVE-FLOAT,#1.8 16030A 16030-3702 1
VALVE,CHOKE 16126A 16126-3701 1
LEVER-ASSY-THROTTLE,S 39074 39074-3703 1
LEVER-ASSY-THROTTLE,T 39074A 39074-3704 1
DIAPHRAGM,PUMP 43028 43028-3001 1
DIAPHRAGM,PUMP 43028A 43028-3002 1
DIAPHRAGM,PUMP 43028B 43028-3701 1
DIAPHRAGM,CHECK SEAT 43028C 51069-501 1
DIAPHRAGM,MAIN 43028D 51069-502 1
PACKING 43049 43049-3702 1
BODY,DIAPHRAGM(2) 59336 59336-3002 1
BODY,DIAPHRAGM(3) 59336A 59336-3003 1
SCREW,CHOKE VALVE 92009 92009-3704 2
SCREW,CHOKE LEVER 92009A 92009-3705 1
SCREW 92009B 92009-3714 3
SCREW 4X12 92009C 92011-510 1
SCREW 4X30 92009D 92011-515 6
NUT,THROTTLE LEVER 92015 92015-3717 1
WASHER,THROTTLE LEVER 92022 92022-3722 1
WASHER 92022A 92022-537 2
COLLAR,THROTTLE SHAFT 92027 92027-3709 1
BUSH 92028 92028-3730 1
FLOAT PIN 92043 16032-006 1
"0" RING 92055 92055-510 1
"0" RING,DRAIN PLUG 92055A 92055-1093 1
SPRING,CHOKE SHAFT 92081 92081-3705 1
SPRING 92081A 92081-528 1
SPRING 92081B 92081-534 1
SPRING 92144 92144-3709 1
SPRING 92144A 92144-3715 1
SCREW-PAN-WS-CROS 223 223B0307 2
