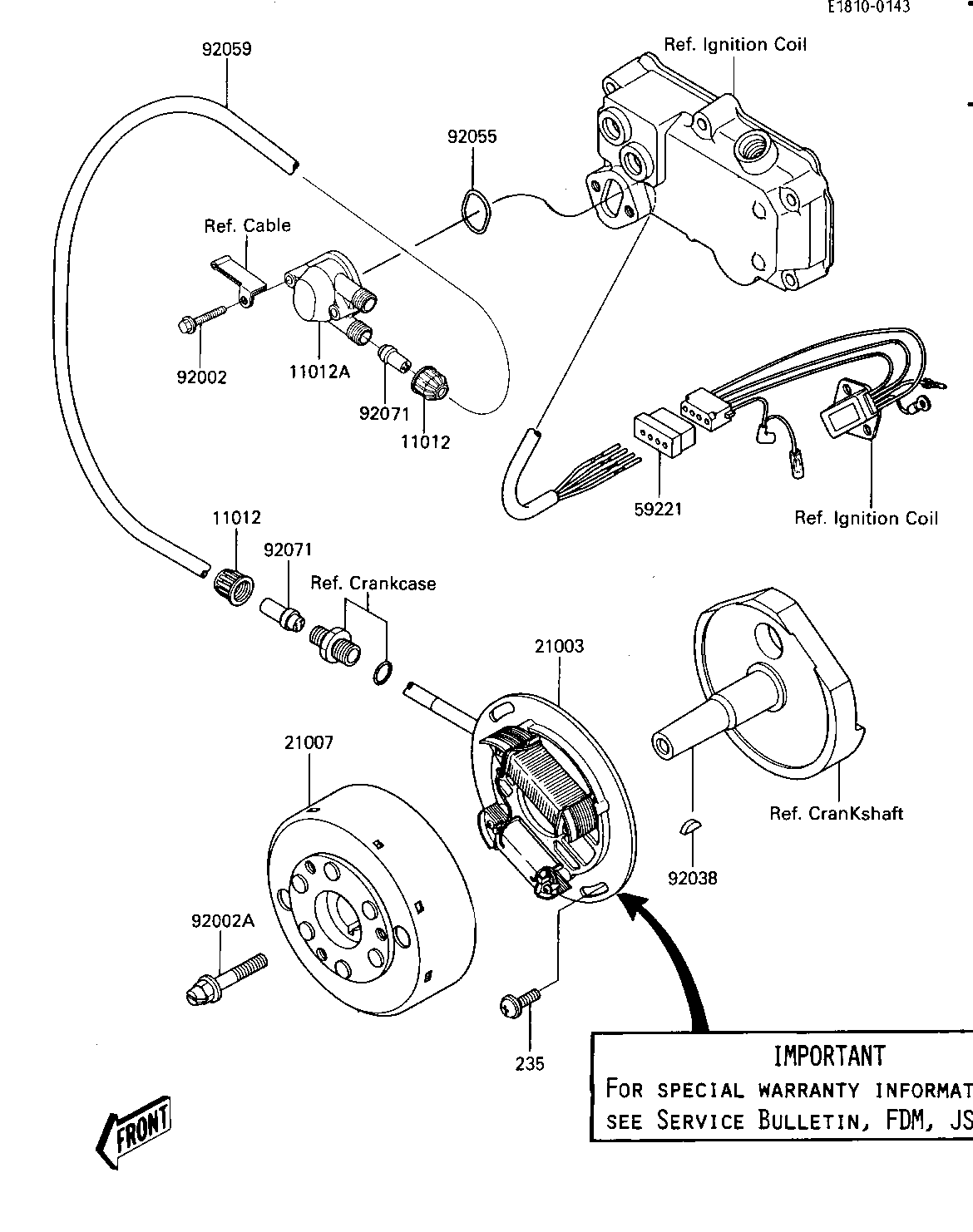

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-3005 2
CAP,ELECTRIC CASE 11012A 11012-3704 1
STATOR 21003 21003-3704 1
ROTOR 21007 21007-3703 1
CONNECTOR-CORD 59221 59221-3701 1
BOLT,6X35 92002 92002-3715 2
BOLT 92002A 92150-3726 1
WOODRUFF KEY 92038 92038-001 1
RING-O 92055 92055-3706 1
TUBE,10X12X630 92059 92059-3717 1
GROMMET 92071 92071-3711 2
SCREW-PAN-WP-CROS 235 235B0616 2
