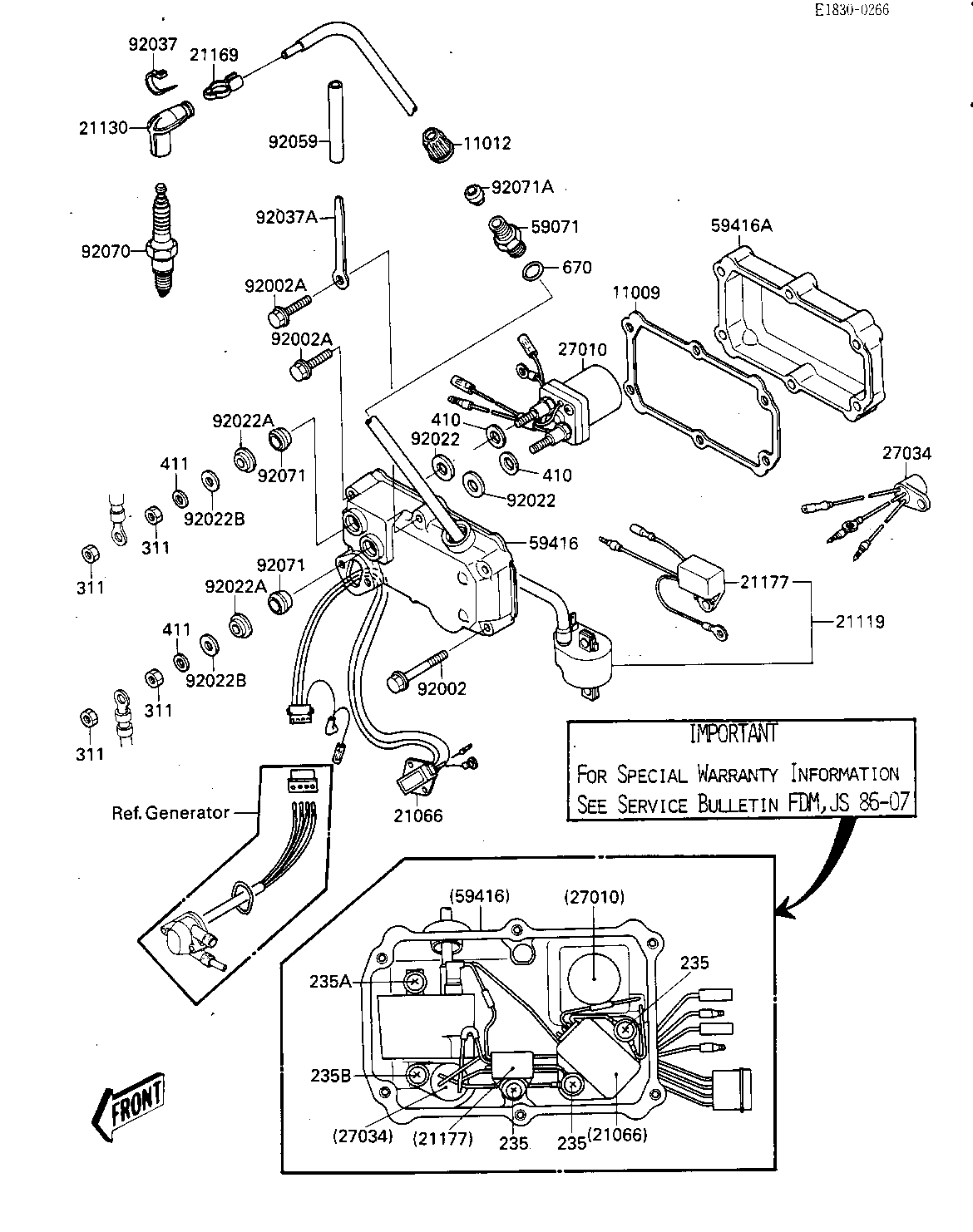

1987 JS300 - IGNITION/ELECTRIC CASE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,ELECTRIC CASE 11009 11009-3711 1
CAP 11012 11012-3005 1
REGULATOR-VOLTAGE 21066 21066-3701 1
IGNITER 21119 21119-3707 1
CAP,SPARK PLUG 21130 21130-1006 1
TERMINAL,PLUG CAP 21169 21169-001 1
CONTROLLER 21177 21177-3701 1
SWITCH,STARTER RELAY 27010 27010-3703 1
RELAY 27034 27034-3002 1
JOINT 59071 59071-3001 1
CASE-ELECTRICAL,FR 59416 59416-3702 1
CASE-ELECTRICAL,RR 59416A 59416-3703 1
BOLT,6X35 92002 92002-3715 2
BOLT,6X65 92002A 92002-3720 4
WASHER,10.5X24X2.5 92022 92022-3035 2
WASHER 92022A 92022-3708 2
WASHER,6.5X19X2 92022B 92022-3709 2
CLAMP,SPARK PLUG CAP 92037 92037-1173 1
CLAMP,L=100 92037A 92037-3736 1
TUBE,VINYL,5X73 92059 92059-3017 1
SPARK PLUG B7ES 92070 92070-3003 1
GROMMET 92071 92071-3004 2
GROMMET 92071A 92071-527 1
SCREW-PAN-WP-CROS 235 235B0616 3
SCREW-PAN-WP-CROS 235A 235B0620 1
SCREW-PAN-WP-CROS 235B 235B0625 1
NUT,6M/M 311 311R0600 4
WASHER PLAIN 10MM 410 410B1000 2
WASHER 411 411S0600 2
"0" RING,16MM 670 670B2016 1
