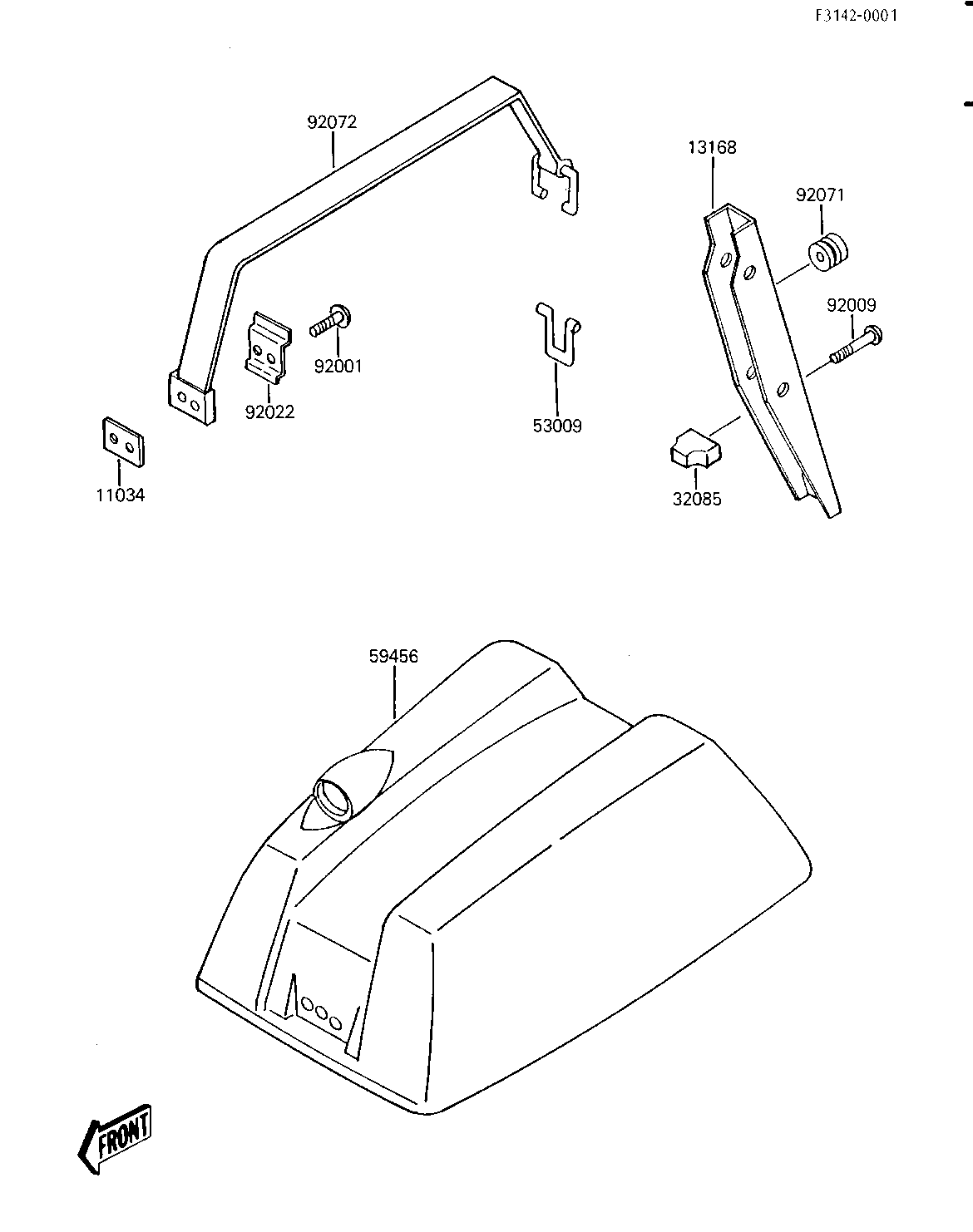

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE-ENG. CVR. STRAP 11034 59086-501 1
LEVER 13168 13168-3701 1
DETENT-HOOD LEVER 32085 59346-503 1
HINGE-HOOD LEVER 53009 53009-503 1
HOOD-COMP-ENGINE,JET 59456 59456-3719-8C 1
BOLT,6X30 92001 92001-3022 2
SCREW 0.16X0.5 92009 92011-562 1
WASHER,BAND 92022 92022-509 1
GROMMET 92071 92071-056 1
BAND,HOOD 92072 92072-3746 1
