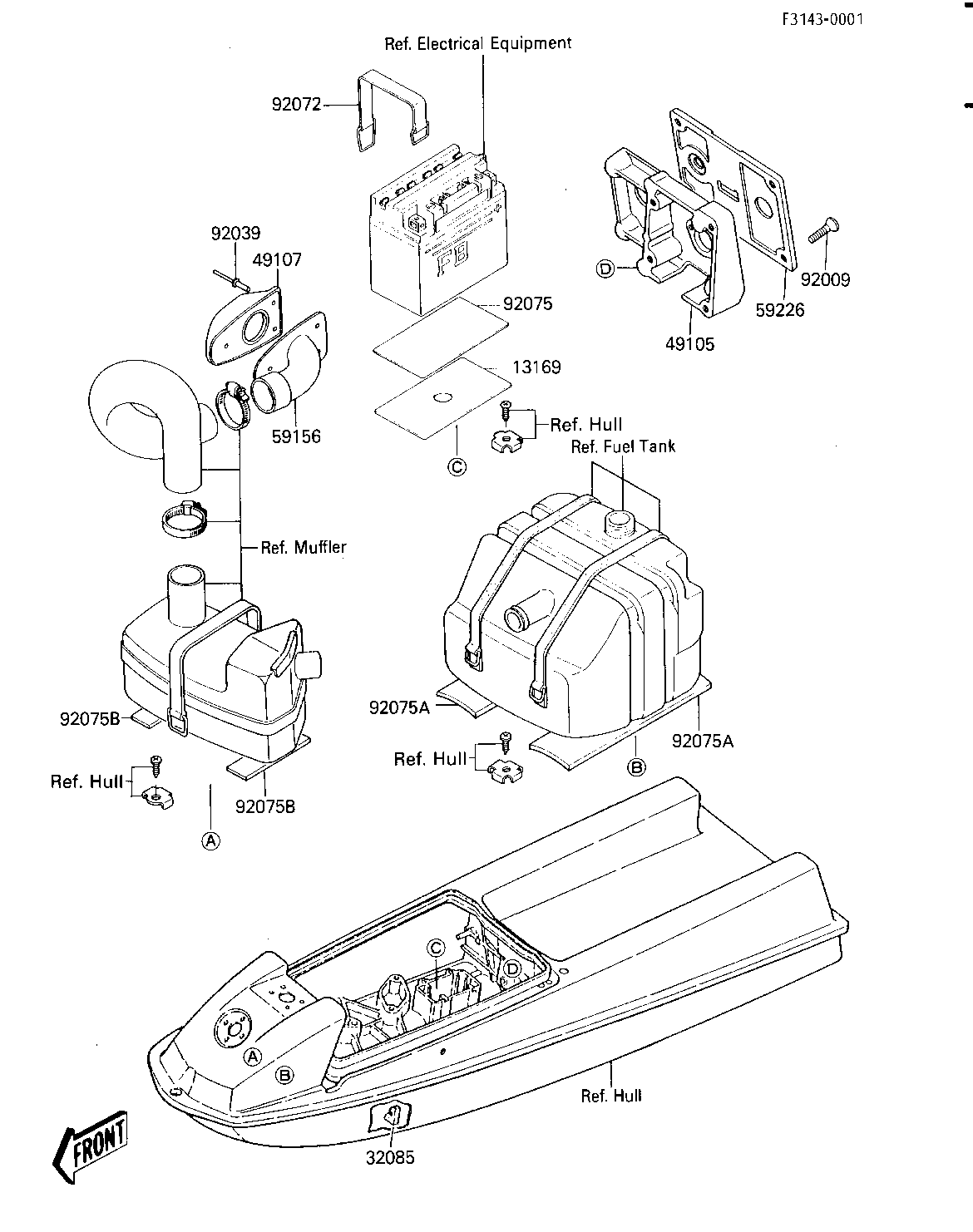

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE-BATTERY 13169 13169-3014 1
DETENT,STEERING CABLE 32085 59346-504 3
BRACKET-TAP 49105 49105-3703 1
COVER-EXHAUST PIPE 49107 49107-3701 1
PIPE-TAIL 59156 59156-3702 1
PANEL-CONTROL 59226 59226-3702 1
SCREW,CNTSNK HEAD8X22 92009 92009-3004 4
RIVET 92039 92039-3002 3
BAND,BATTERY 92072 92072-3749 2
CUSHION,BATTERY 92075 92075-509 1
DAMPER,6.0TX90X300 92075A 92075-521 2
DAMPER,3.OTX90X200 92075B 92075-522 2
