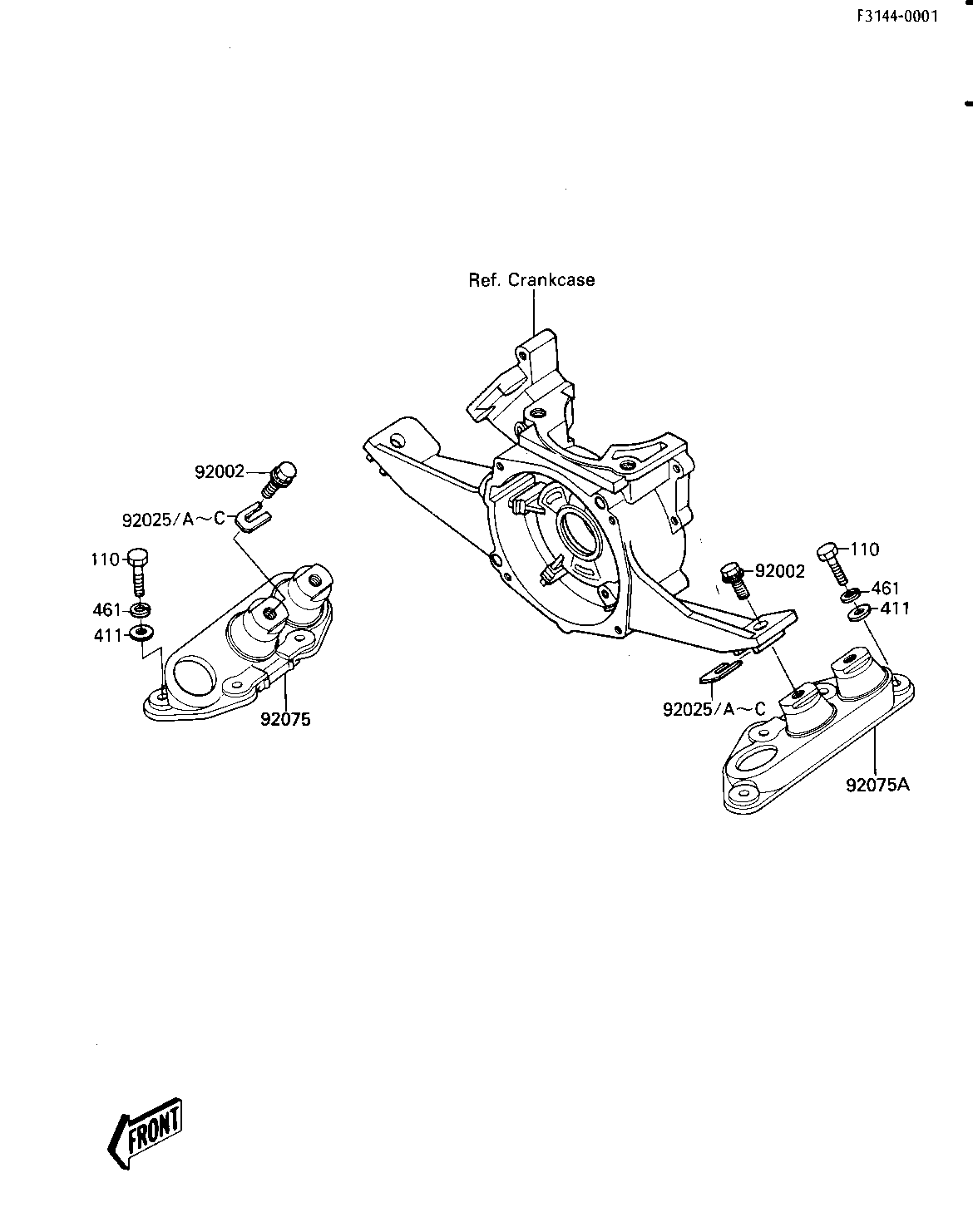

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,10X25 92002 92002-3770 4
SHIM,T=0.3MM 92025 92025-3705 AR
SHIM,T=0.5MM 92025A 92025-3706 AR
SHIM,T=1.0MM 92025B 92025-3707 AR
SHIM,T=1.5MM 92025C 92025-3708 AR
DAMPER,ENG MOUNT RH 92075 92075-3711 1
DAMPER,ENG MOUNT LH 92075A 92075-3712 1
BOLT-WSP-SMALL,8X20 155 155R0820 8
