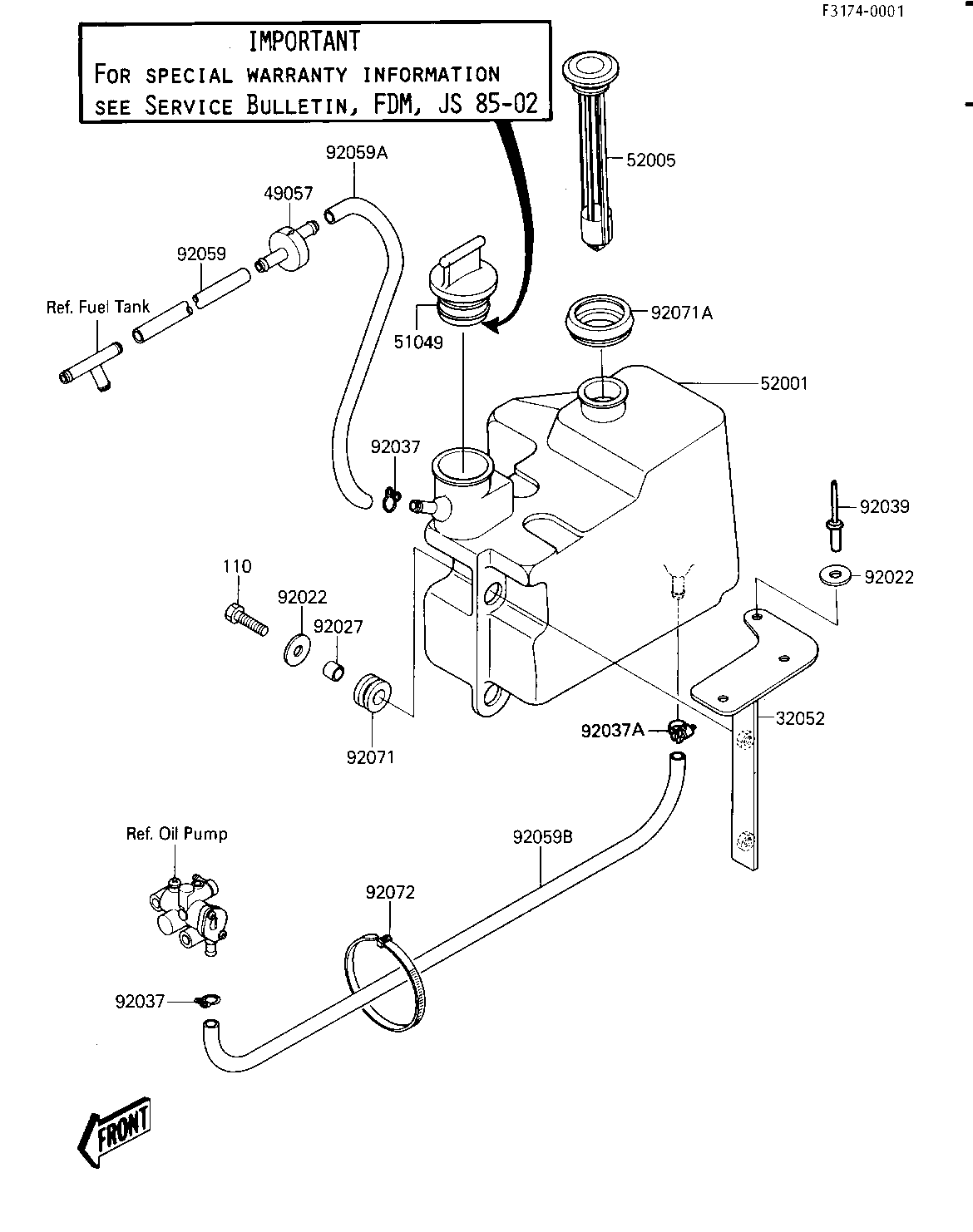

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-TANK,OIL 32052 32052-3702 1
VALVE,RELIEF 49057 49057-3001 1
CAP-TANK,OIL 51049 51049-3707 1
TANK OIL 52001 52001-3702 1
GAUGE 52005 52005-3702 1
WASHER,6.2X20X2 92022 92022-3714 5
COLLAR,6.2X10X10 92027 92027-3705 2
CLAMP,SPARK PLUG CAP 92037 92037-1173 2
CLAMP 92037A 92037-3726 1
RIVET 92039 92039-3719 3
TUBE,5.8X700 92059 92059-3720 1
TUBE,OIL,6X100 92059A 92059-3721 1
TUBE 92059B 92059-3764 1
GROMMET 92071 92071-3716 2
GROMMET 92071A 92071-3750 1
BAND,SHORT 92072 92072-030 1
BOLT,HEX HEAD,6X25 110 110R0625 2
