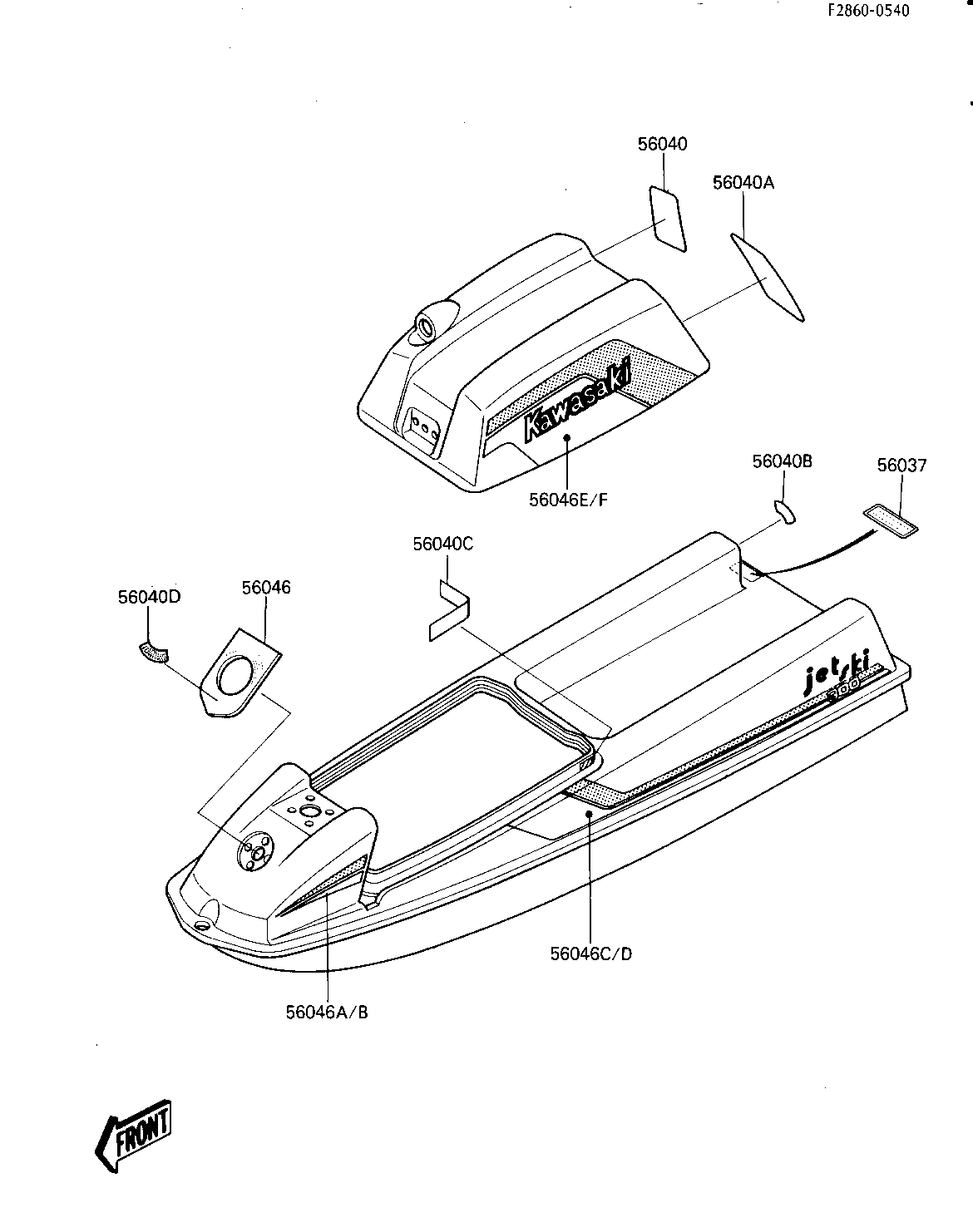

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL FIRE EXT 56037 56022-506 1
LABEL 56040 56040-3701 1
LABEL,WARNING 56040A 56040-3703 1
LABEL-WARNING 56040B 56040-3705 1
LABEL-WARNING 56040C 56040-3709 1
LABEL-WARNING 56040D 56040-3710 1
PATTERN,FR DECK,UPPER 56046 56046-1925 1
PATTERN,FR DECK,LH 56046A 56046-1926 1
PATTERN,FR DECK RH 56046B 56046-1927 1
PATTERN,RR DECK,LH 56046C 56046-1928 1
PATTERN RR DECK,RH 56046D 56046-1929 1
PATTERN,ENG HOOD,LH 56046E 56046-1930 1
PATTERN,ENG HOOD,RH 56046F 56046-1931 1
