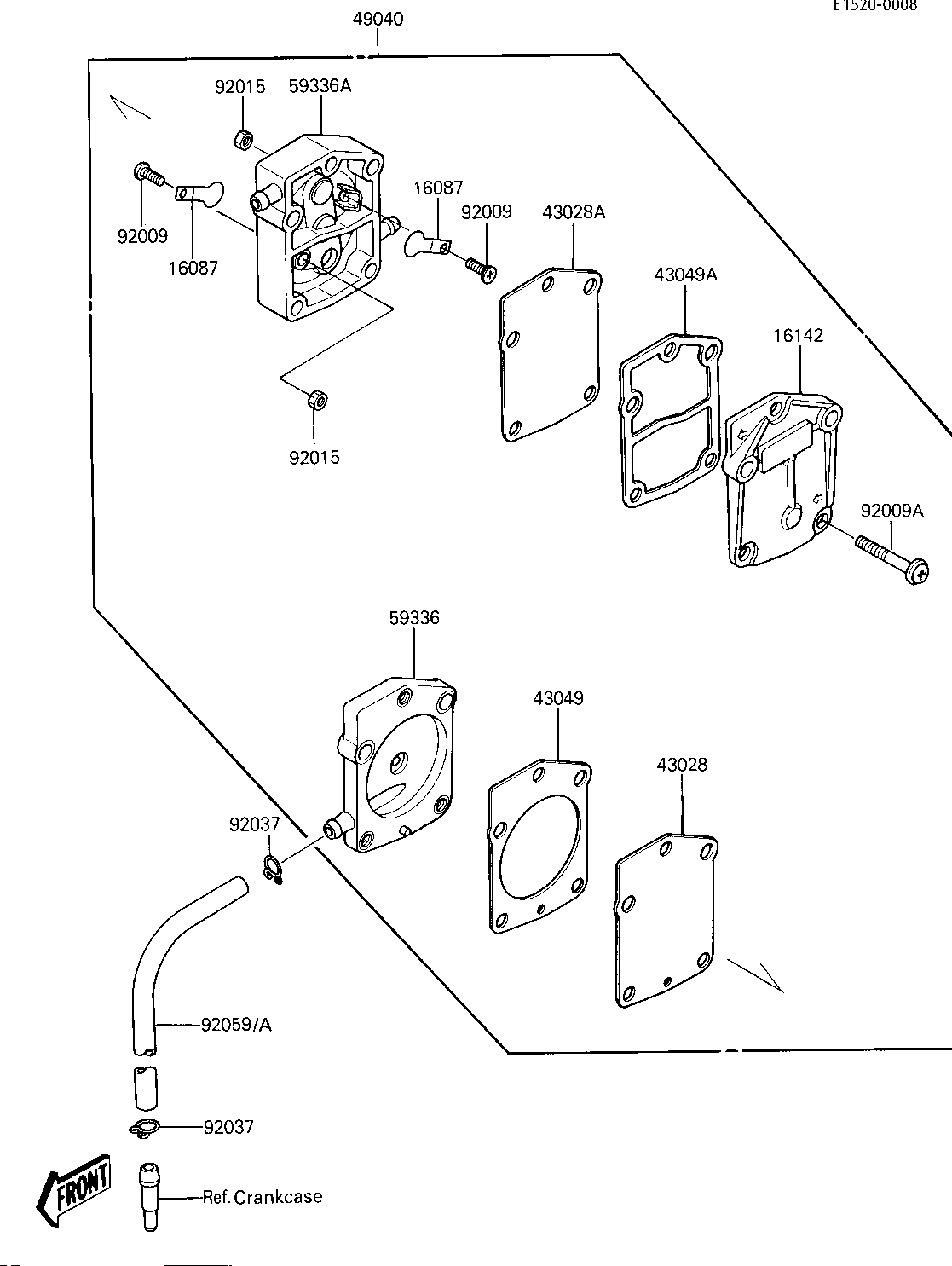

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE-CHECK,FUEL PUMP 16087 16087-3701 2
COVER-PUMP,FUEL 16142 16142-3701 1
DIAPHRAGM,PULSE 43028 43028-3702 1
DIAPHRAGM,FUEL 43028A 43028-3703 1
PACKING,PULSE CASE 43049 43049-3703 1
PACKING,FUEL COVER 43049A 43049-3704 1
PUMP-FUEL 49040 49040-3706 1
CASE-PUMP,PLUSE 59336 59336-3704 1
CASE-PUMP,BODY 59336A 59336-3705 A
SCREW,3X6 92009 92009-3707 2
SCREW,5X25 92009A 92009-3708 3
NUT,3MM 92015 92015-3731 2
CLAMP,SPARK PLUG CAP 92037 92037-1173 2
TUBE,PULS,5.8X10.8X56 92059 92059-3800 1
