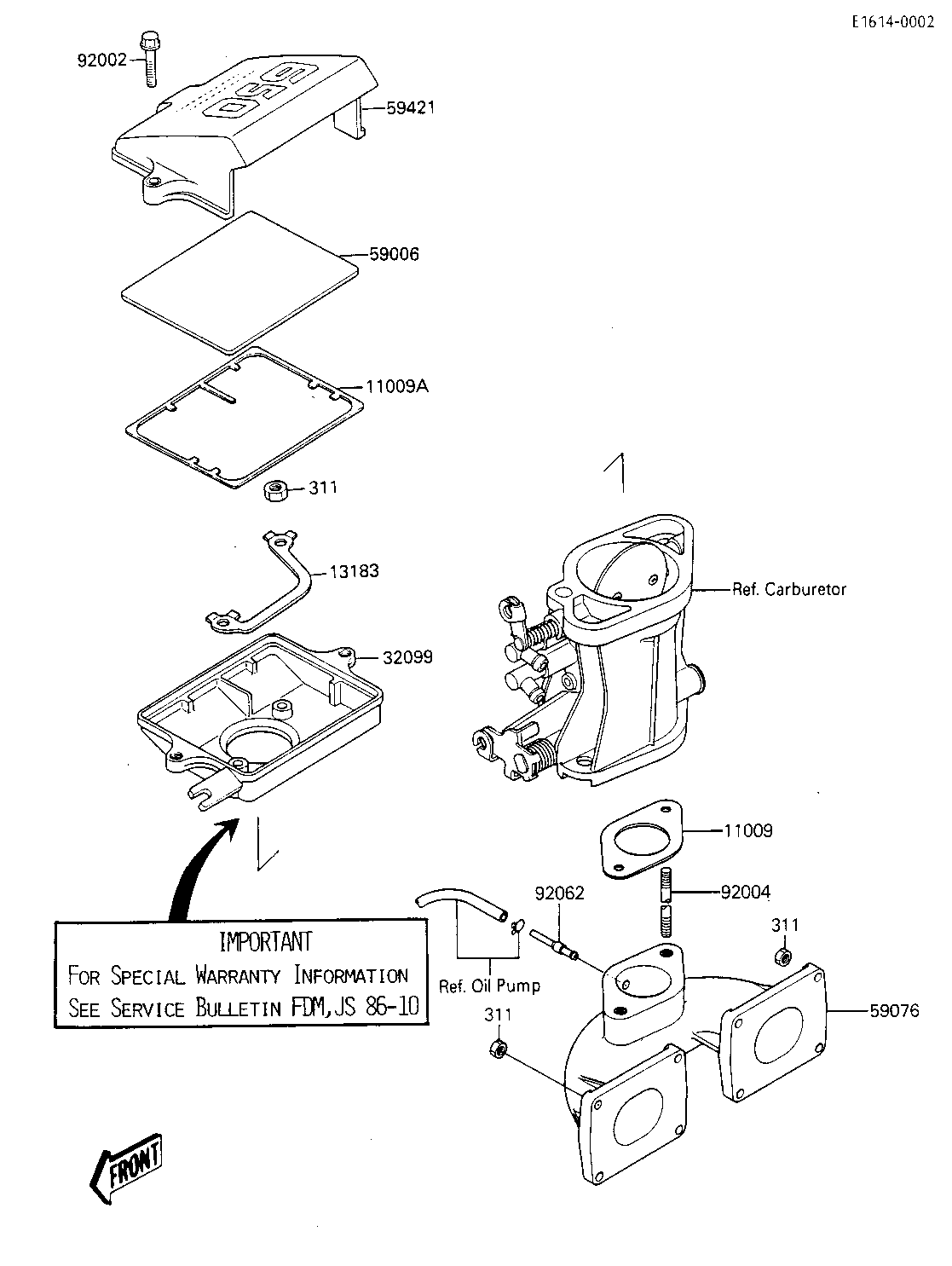

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CARBERETOR 11009 11009-3747 1
GASKET,ARRESTER CASE 11009A 11009-3727 1
LOCKWASHER 13183 13183-3726 1
CASE,ARRESTER 32099 32099-3707 1
ARRESTER-FLAME JF6 59006 59006-5001 1
MANIFOLD-INTAKE 59076 59076-3704 1
COVER-INTAKE 59421 59421-3701 1
BOLT,6X30 92002 92002-3726 2
STUD,10X35 92004 92004-3706 2
NOZZLE 92062 92062-3703 1
NUT,6M/M 311 311R0600 10
