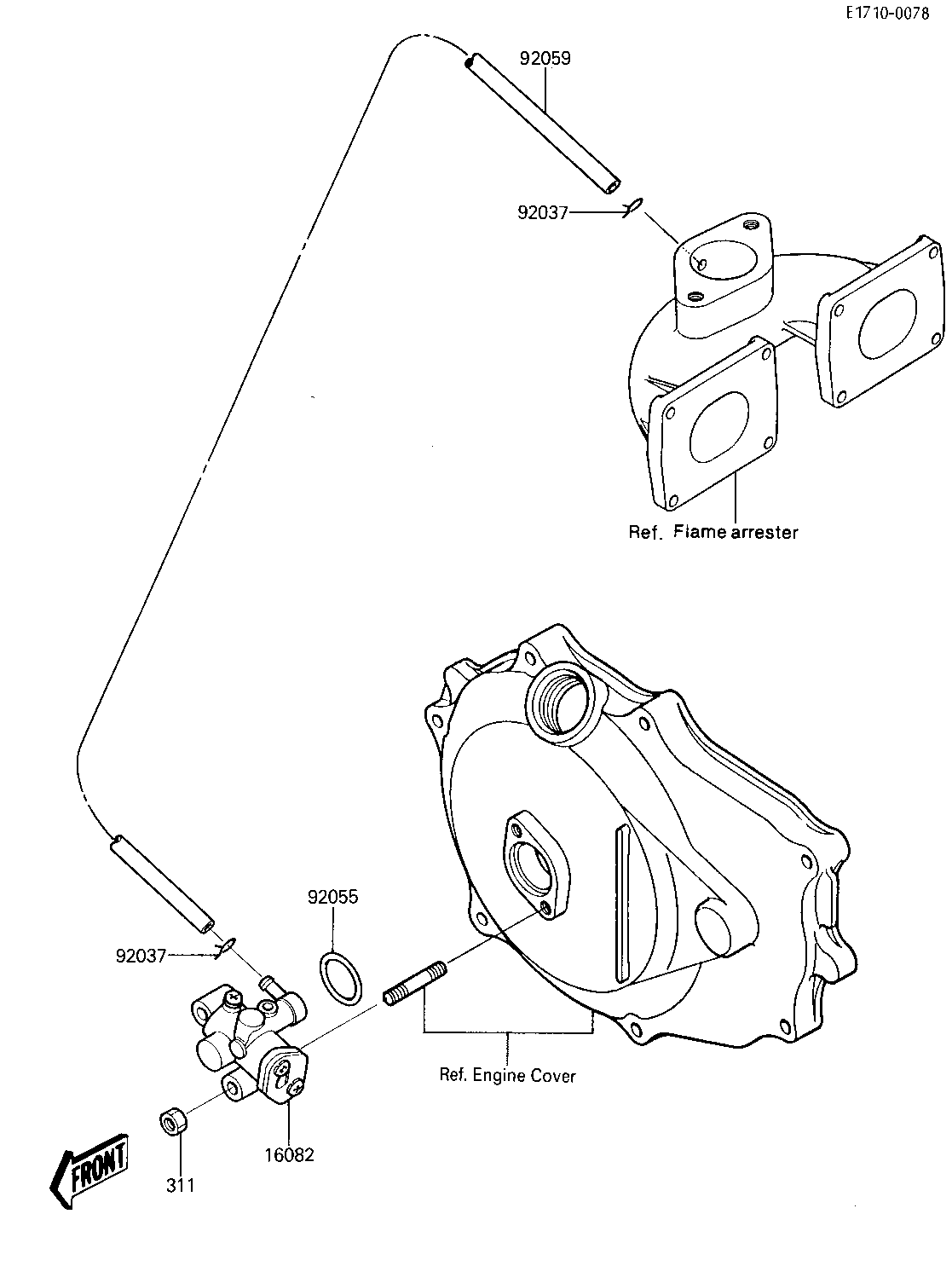

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PUMP-ASSY-OIL 16082 16082-3708 1
CLAMP 92037 92037-3722 2
"O" RING 92055 92055-055 1
TUBE,3X6X380 92059 92059-3755 1
NUT,6M/M 311 311R0600 2
