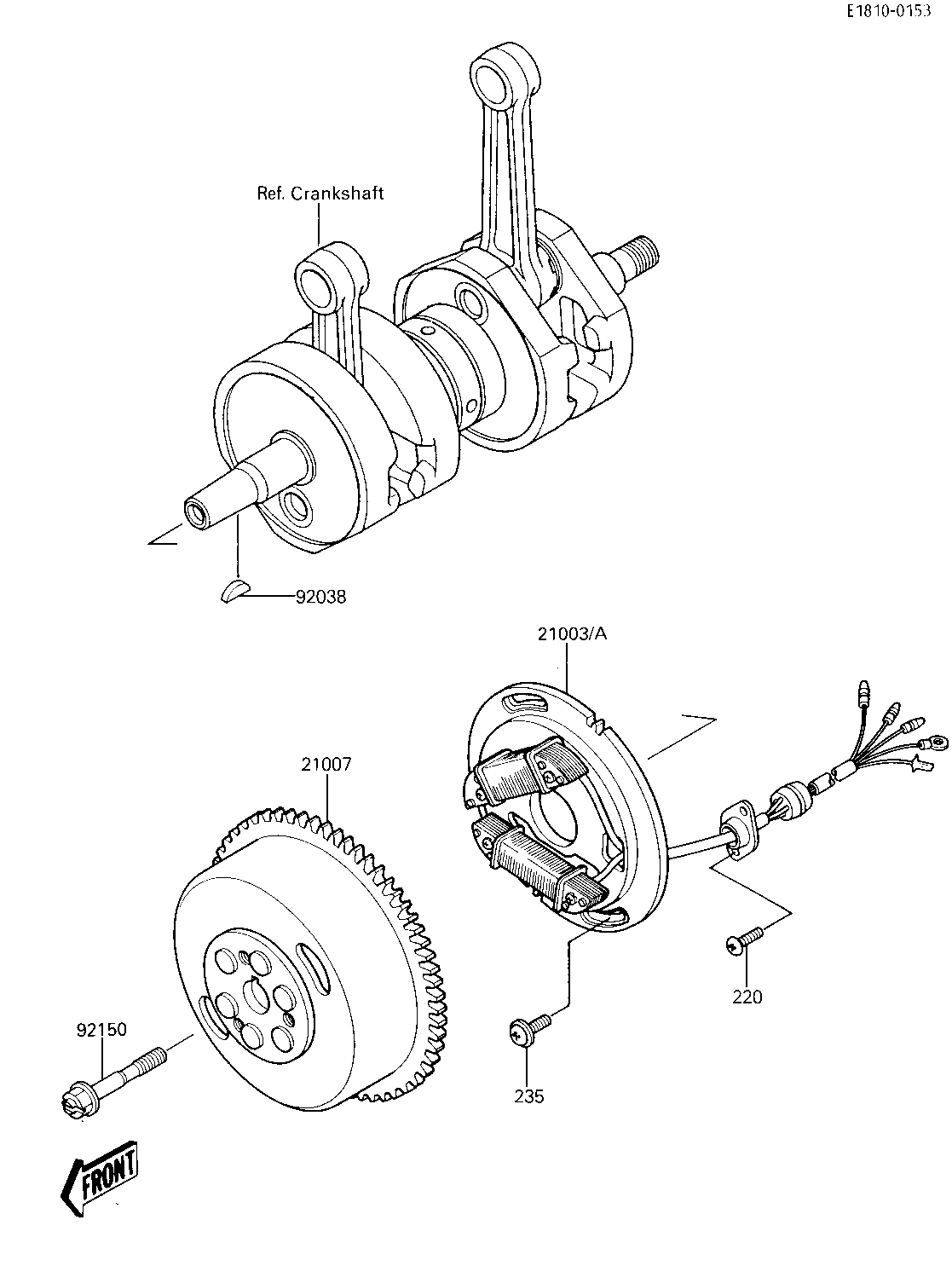

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR 21003 21003-3702 1
ROTOR, MAGNETO 21007 21007-3709 1
WOODRUFF KEY 92038 92038-001 1
BOLT 92150 92150-3701 2
SCREW PAN HEAD 5X12 220 220B0512 2
SCREW-PAN-WP-CROS 235 235B0616 2
