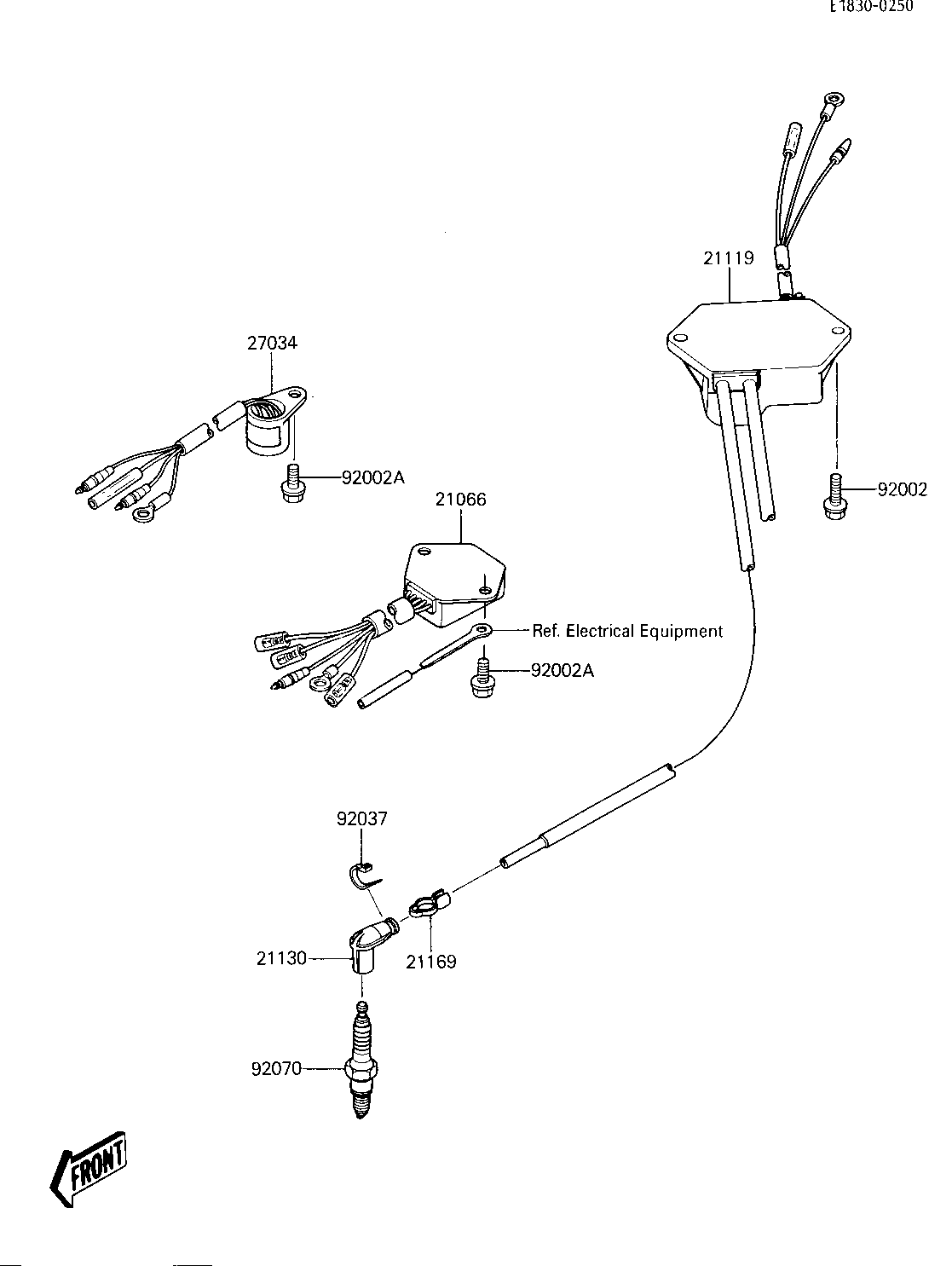

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
REGULATOR-VOLTAGE 21066 21066-3702 1
UNAVAILABLE IN PRICE BOOK 21119 21118-3702 1
CAP,SPARK PLUG 21130 21130-1006 2
TERMINAL,PLUG CAP 21169 21169-001 2
RELAY,STOP SWITCH 27034 27034-3702 2
BOLT,6X25 92002 92002-3714 2
BOLT,6X16 92002A 92002-3728 3
CLAMP,SPARK PLUG CAP 92037 92037-1173 2
SPARK PLUG B7ES 92070 92070-3003 2
