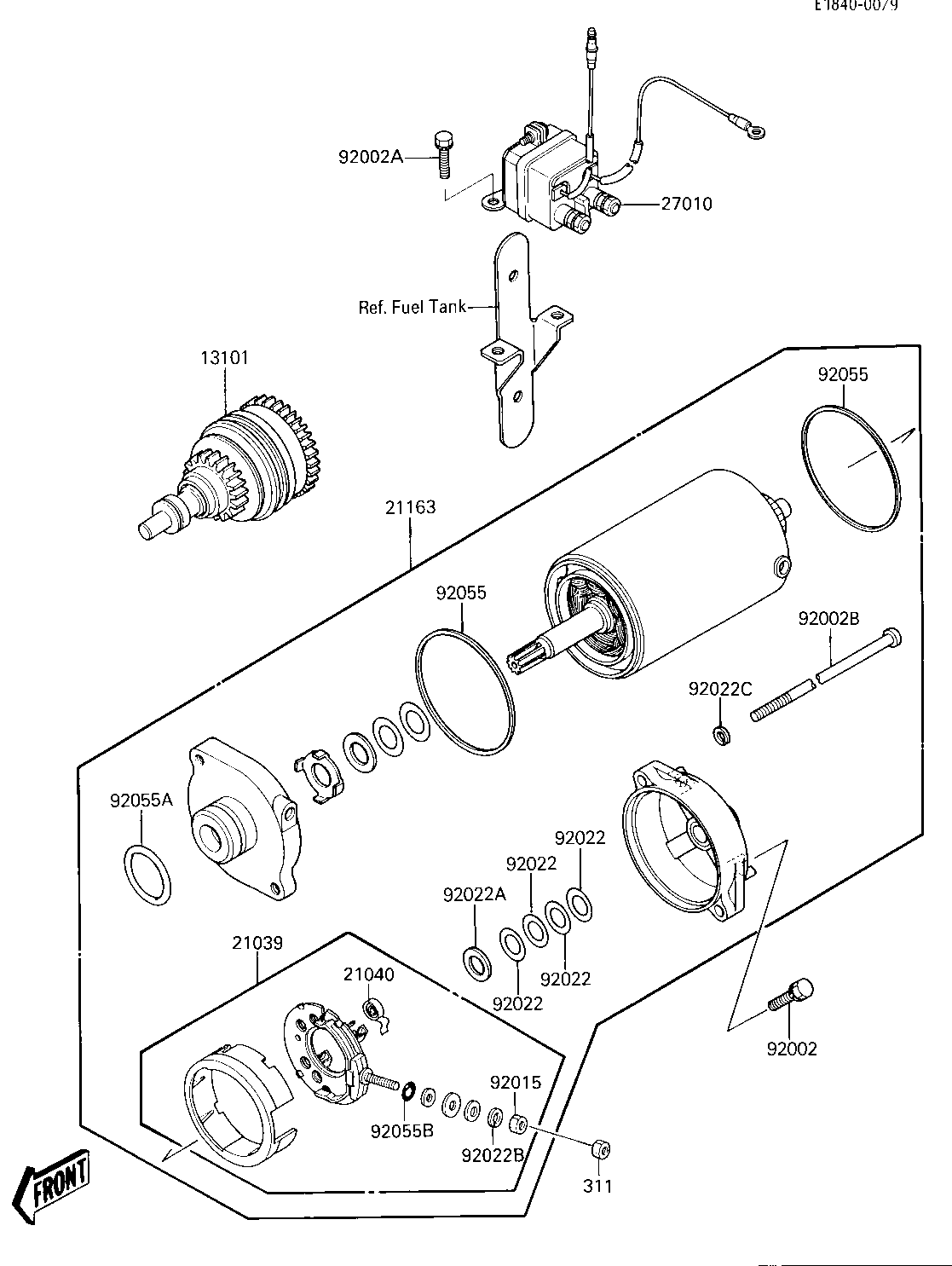

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GEAR-ASSY 13101 13101-3705 1
BRUSH,CARBON 21039 21039-3702 1
SPRING-BRUSH 21040 21040-1003 4
STARTER-ELECTRIC 21163 21163-3712 1
SWITCH,STARTER 27010 27010-3704 1
BOLT,6X25 92002 92002-3714 2
BOLT,6X16 92002A 92002-3728 2
BOLT 92002B 92002-3744 2
NUT,6MM 92015 92015-3710 1
WASHER,THRUST,0.2T 92022 21025-011 4
WASHER,THRUST,0.8T 92022A 92022-1132 1
WASHER,6MM 92022B 92022-3711 1
WASHER,SPRING,5MM 92022C 92022-3712 2
"0" RING,STARTER MOTR 92055 92055-1086 2
RING-O 92055A 92055-1276 1
RING-O,4.5X2.0 92055B 92055-1370 1
NUT,6M/M 311 311R0600 1
