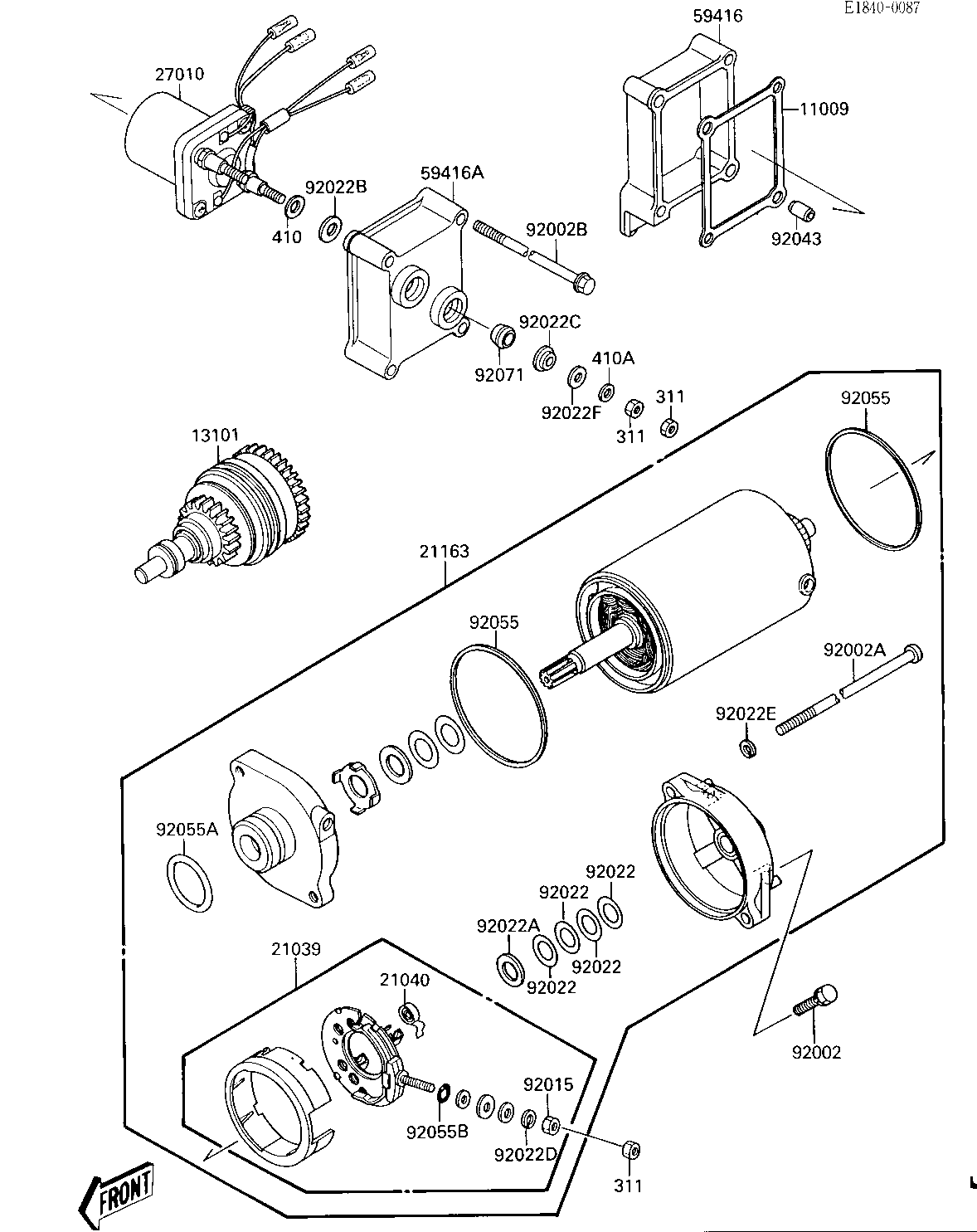

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11009 11060-3709 1
GEAR-ASSY 13101 13101-3705 1
BRUSH,CARBON 21039 21039-3702 1
SPRING-BRUSH 21040 21040-1003 4
STARTER-ELECTRIC 21163 21163-3712 1
SWITCH 27010 27010-3706 1
CASE-ELECTRIC 59416 59416-3710 1
CASE-ELECTRIC 59416A 59416-3711 1
