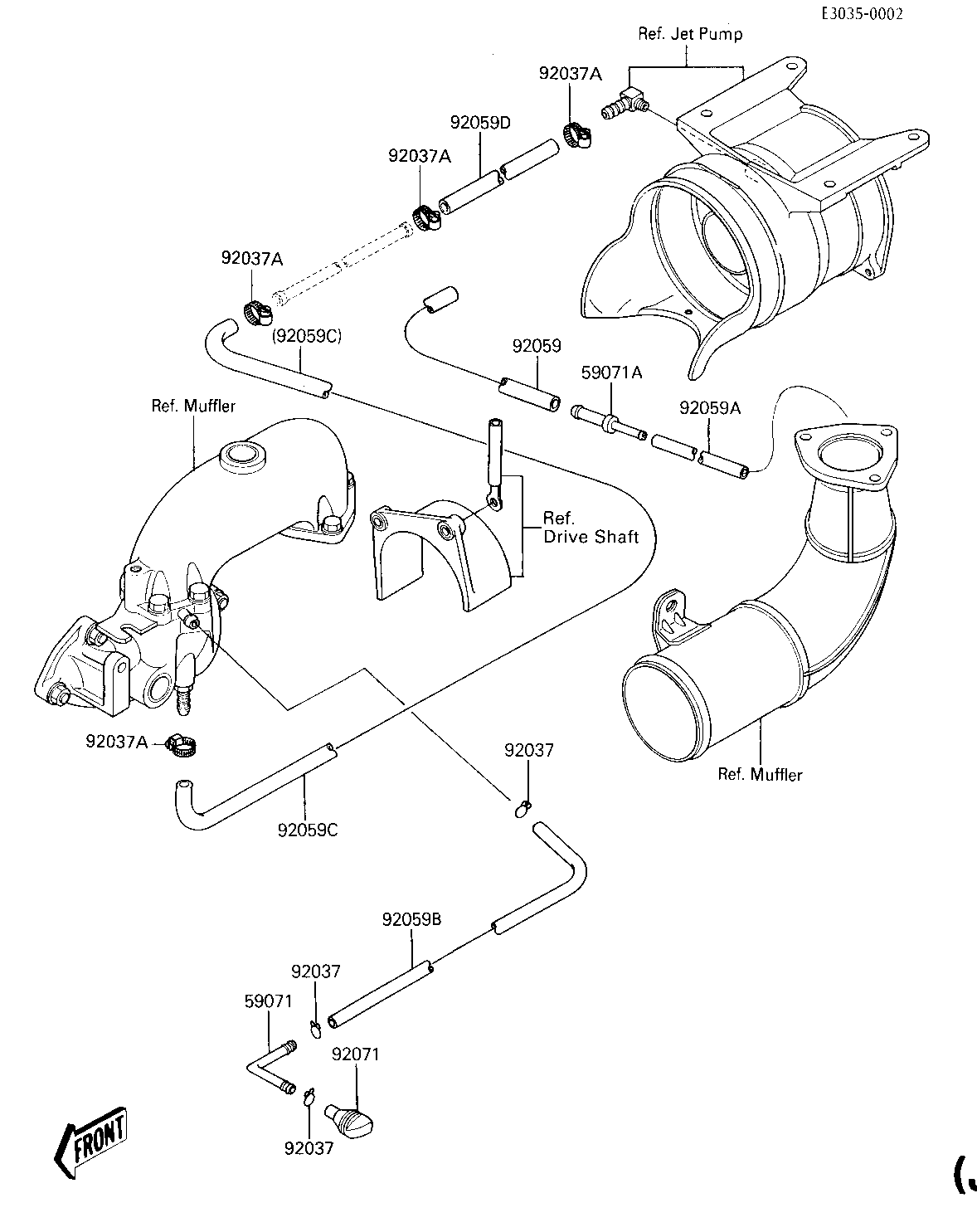

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
JOINT 59071 59071-3706 1
JOINT 59071A 59071-3715 1
CLAMP,SPARK PLUG CAP 92037 92037-1173 3
CLAMP,HOSE 92037A 92037-504 4
TUBE,9X16X80 92059 92059-3039 1
TUBE,5.8X500 92059A 92059-3756 1
TUBE 92059B 92059-3759 1
TUBE,HULL TO ENGINE,9 92059C 92059-3761 1
HOSE,WATER (1) 92059D 92059-503 1
GROMMET 92071 92071-3736 1
