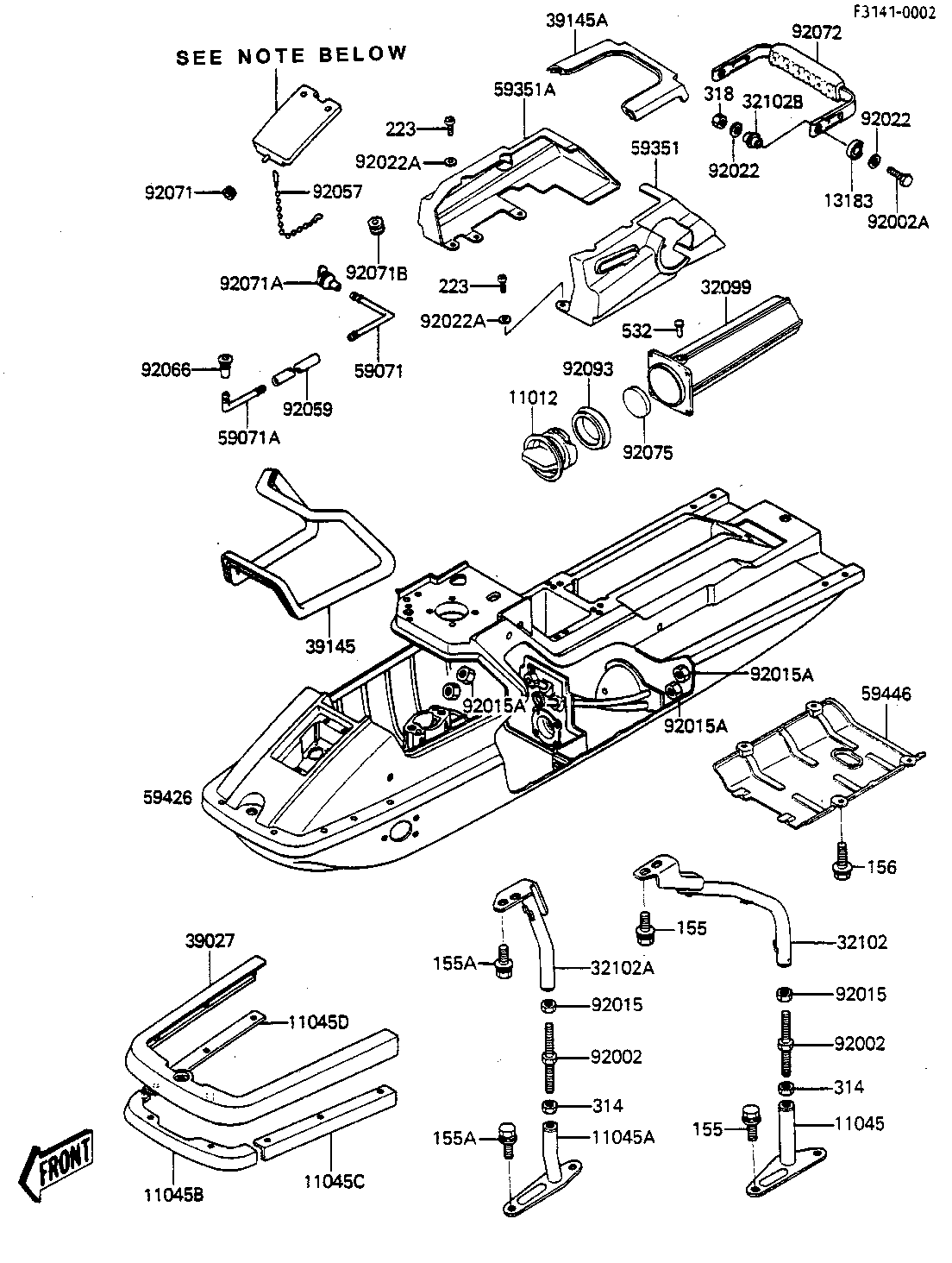

1986 X2 - HULL (JF650-A1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,FIRE EXT 11012 11012-3708 1
BRACKET,DECK,LH 11045 11044-3710 1
BRACKET,DECK,RH 11045A 11044-3711 1
BRACKET,BUMPER,CNT 11045B 11045-3710 1
BRACKET,BUMPER,LH 11045C 11045-3711 1
BRACKET,BUMPER,RH 11045D 11045-3712 1
PLATE 13183 13169-3714 2
COVER-TANK CAP,JET WT 14024 14024-3710-8C 1
CASE,FIRE EXT 32099 32099-3705 1
PIPE,DECK,LH 32102 32033-3718 1
PIPE,DECK,RH 32102A 32033-3719 1
PIPE 32102B 32102-3704 2
BUMPER-FRONT 39027 39027-3702 1
TRIM-SEAL 39145 39145-3701 1
TRIM-SEAL,DECK 39145A 39145-3702 1
JOINT 59071 59071-3706 1
JOINT 59071A 59071-3714 1
DECK,LH 59351 59351-3708-8C 1
DECK,RH 59351A 59351-3709-8C 1
HULL,COMP,JF650A,J,WT 59426 59426-5512-8C 1
COVER-JET PUMP 59446 59446-3703 1
BOLT,10MM 92002 92002-3731 2
BOLT,8X30 92002A 92002-3742 2
NUT,10MM 92015 92015-3737 2
NUT,20MM 92015A 92015-3738 4
WASHER,8.5X19X1.2 92022 92022-3730 4
WASHER 92022A 92022-567 8
CHAIN,COVER 92057 92057-3701 1
TUBE,5.8X250 92059 92059-3765 1
PLUG 92066 92066-3706 1
GROMMET 92071 92071-3733 1
GROMMET 92071A 92071-3736 1
GROMMET 92071B 92071-3737 2
BAND,TANDEM 92072 92072-3711 1
DAMPER 92075 92075-3719 1
SEAL 92093 92093-3704 1
BOLT-WSP-SMALL,8X16 155 155R0816 4
BOLT-WSP-SMALL,8X18 155A 155R0818 4
BOLT-WP,6X22 156 156R0622 4
SCREW-PAN-WS-CROS,6X2 223 223R0620 8
NUT-HEX-FINE,10MM 314 314R1000 2
NUT-HEX-SMALL 318 318R0800 2
RIVET-FLAT 532 532R0508 2
