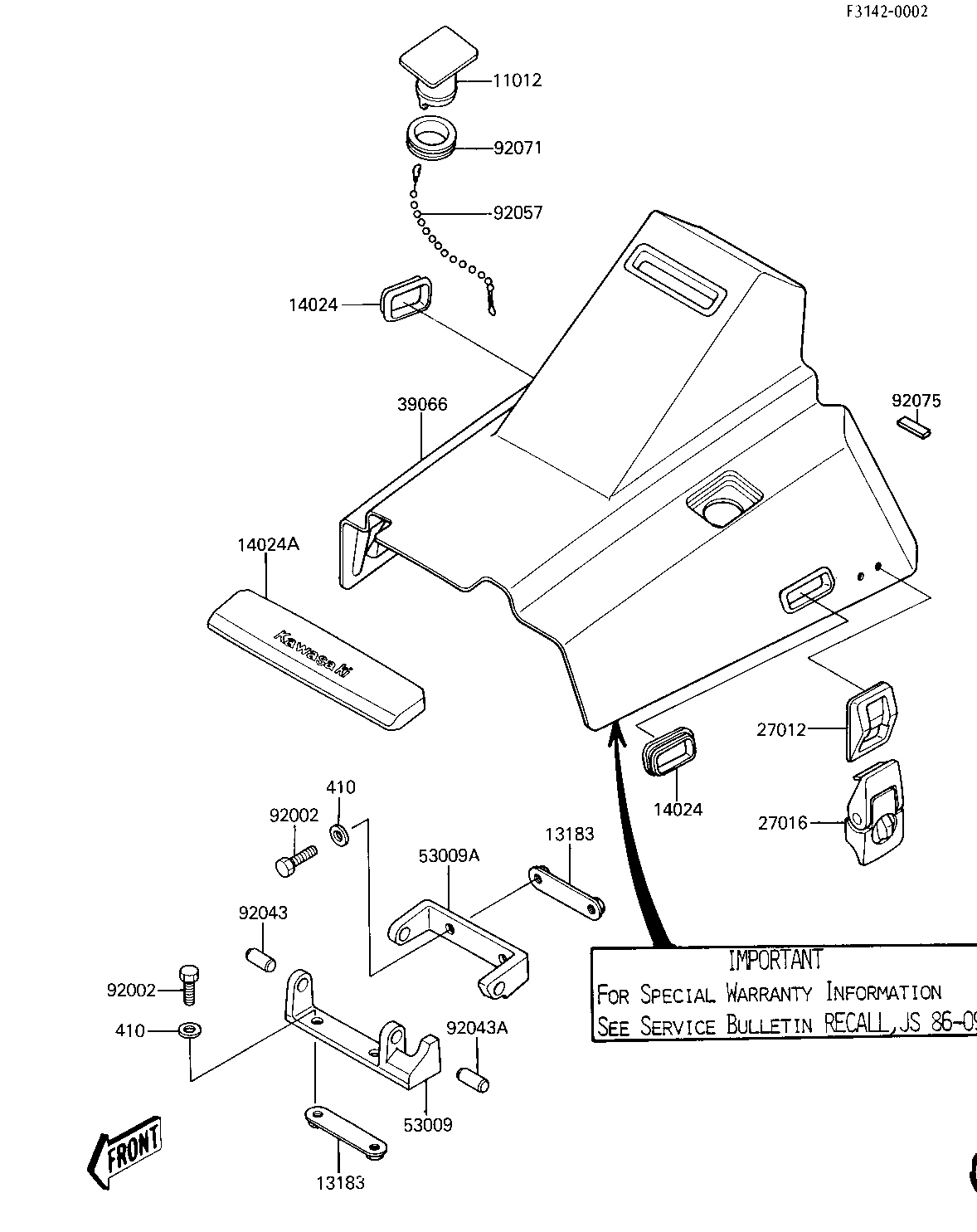

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP-ENGINE 11012 11012-3711-8C 2
PLATE 13183 13183-3706 2
COVER,ENGINE HOOD,JET 14024 14024-3714-8U 2
COVER,ENGINE HOOD,FR 14024A 14024-3740 1
HOOK 27012 27012-3708 2
LOCK-ASSY,ENGINE HOOD 27016 27016-3706 2
HOOD-ASSY-ENGINE,J.WH 39066 39066-3705-8C 1
HINGE,DECK 53009 53009-3703 1
HINGE,ENGINE HOOD 53009A 53009-3704 1
BOLT,8X20 92002 92002-3718 4
PIN 92043 92043-3710 1
PIN 92043A 92043-3711 1
CHAIN,COVER 92057 92057-3701 2
GROMMET,ENGINE HOOD 92071 92071-3731 2
DAMPER,ENGINE HOOD,RR 92075 92075-3757 2
WASHER 410 410S0800 4
