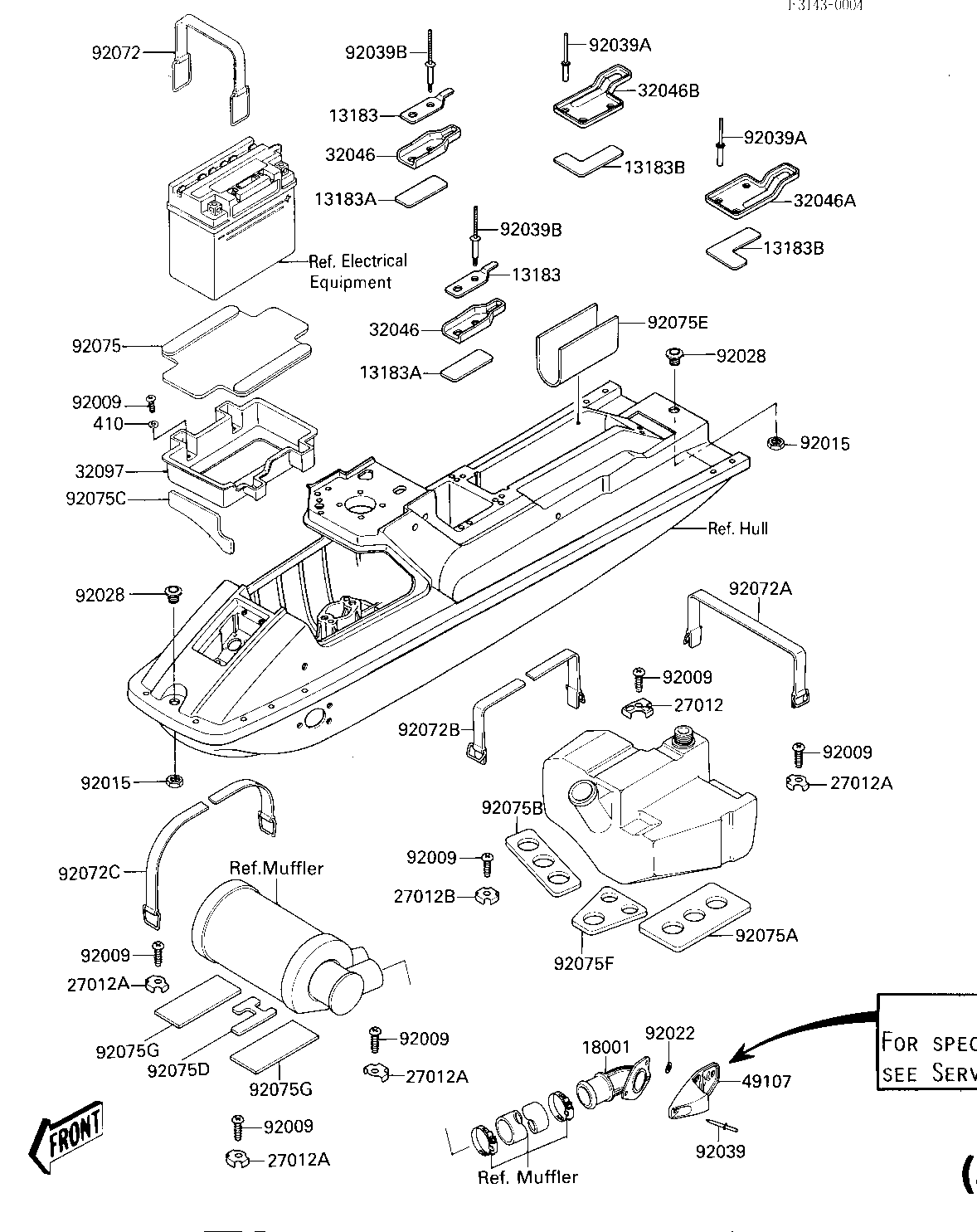

1986 X2 - HULL FITTINGS (JF650-A1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13183 13183-3702 2
PLATE,SEAT,FR 13183A 13183-3715 2
PLATE,SEAT,CNT 13183B 13183-3716 2
MUFFLER,TAIL 18001 18001-3719 1
HOOK 27012 27012-3705 1
HOOK 27012A 27012-501 4
HOOK 27012B 27012-502 1
BRACKET-SEAT,FR 32046 32046-3701 2
BRACKET-SEAT,CNT 32046A 32046-3702 1
BRACKET-SEAT 32046B 32046-3703 1
CASE-BATTERY 32097 32097-3702 1
COVER-EXHAUST PIPE 49107 49107-3703 1
SCREW 0.22 X 0.563 92009 92011-561 10
NUT,20MM 92015 92015-3721 2
WASHER,5X16X1.5 92022 92022-3041 1
BUSHING 92028 92028-3724 2
RIVET 92039 92039-3002 4
RIVET 92039A 92039-3714 6
BOLT 6X20 92039B 110R0620 4
BAND,BATTERY,L=366 92072 92072-3706 2
BAND,L=538 92072A 92072-3709 1
BAND,L=468 92072B 92072-3712 1
BAND,L=384 92072C 92072-3713 2
DAMPER 92075 92075-3714 1
DAMPER,FUEL TANK,LH 92075A 92075-3727 1
DAMPER,FUEL TANK,RH 92075B 92075-3729 1
DAMPER,FUEL TANK 92075C 92075-3738 1
DAMPER 92075D 92075-3749 1
DAMPER 92075E 92075-3750 1
DAMPER,FUEL TANK 92075F 92075-3751 1
DAMPER,3.OTX90X200 92075G 92075-522 2
WASHER 410 410S0600 4
