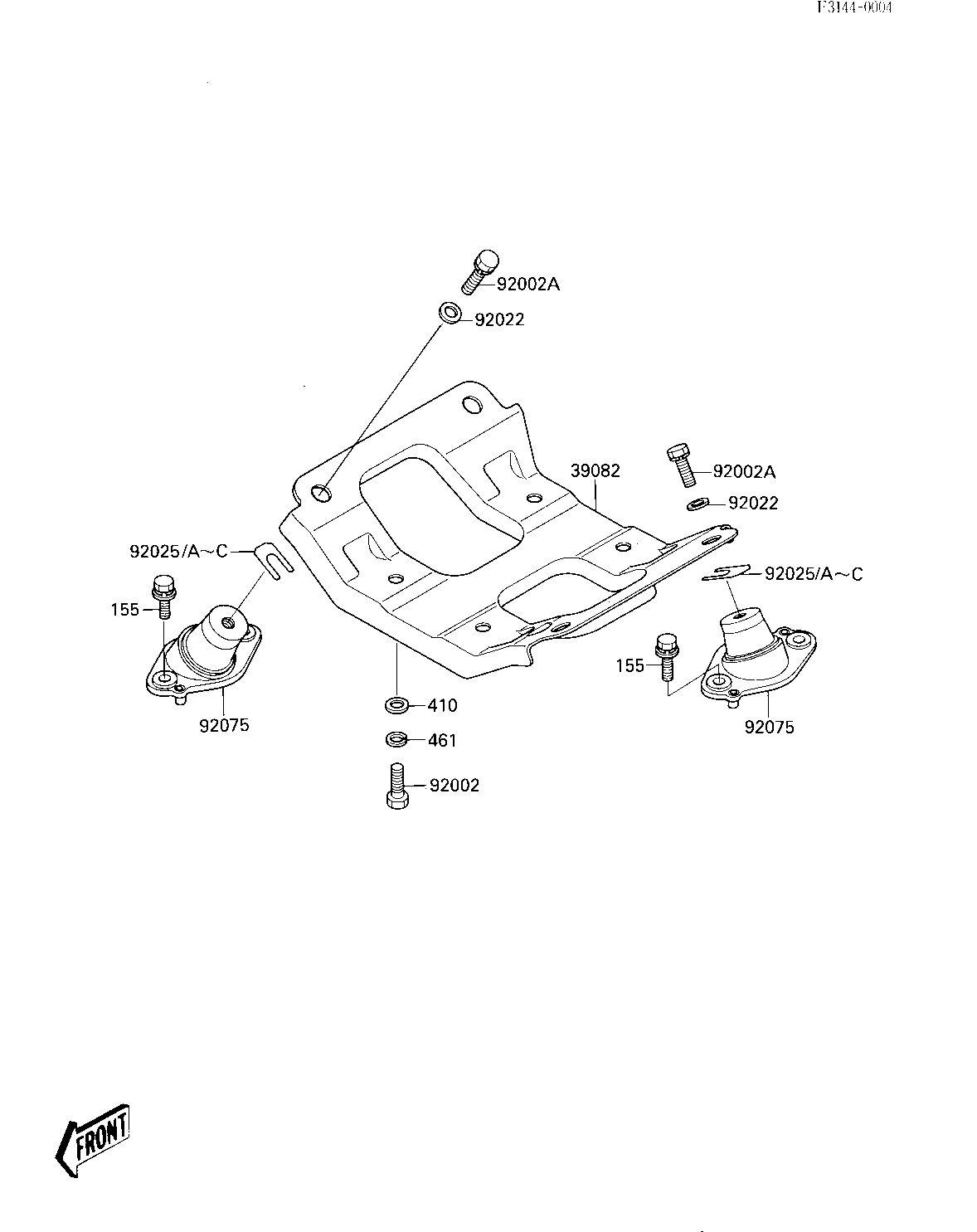

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MOUNT-ENGINE 39082 39082-3705 1
BOLT,10X25 92002 92002-3765 4
BOLT 92002A 92002-3778 4
WASHER,O32XO10.5X4T 92022 92022-3023 4
SHIM,T=0.3MM 92025 92025-3705 AR
SHIM,T=0.5MM 92025A 92025-3706 AR
SHIM,T=1.0MM 92025B 92025-3707 AR
SHIM,T=1.5MM 92025C 92025-3708 AR
DAMPER,ENGINE MOUNT 92075 92160-3757 4
BOLT-WSP-SMALL,8X20 155 155R0820 8
W-PLAIN-S,10MM 410 410S1000 4
WASHER-SPRING,10MM 461 461S1000 4
