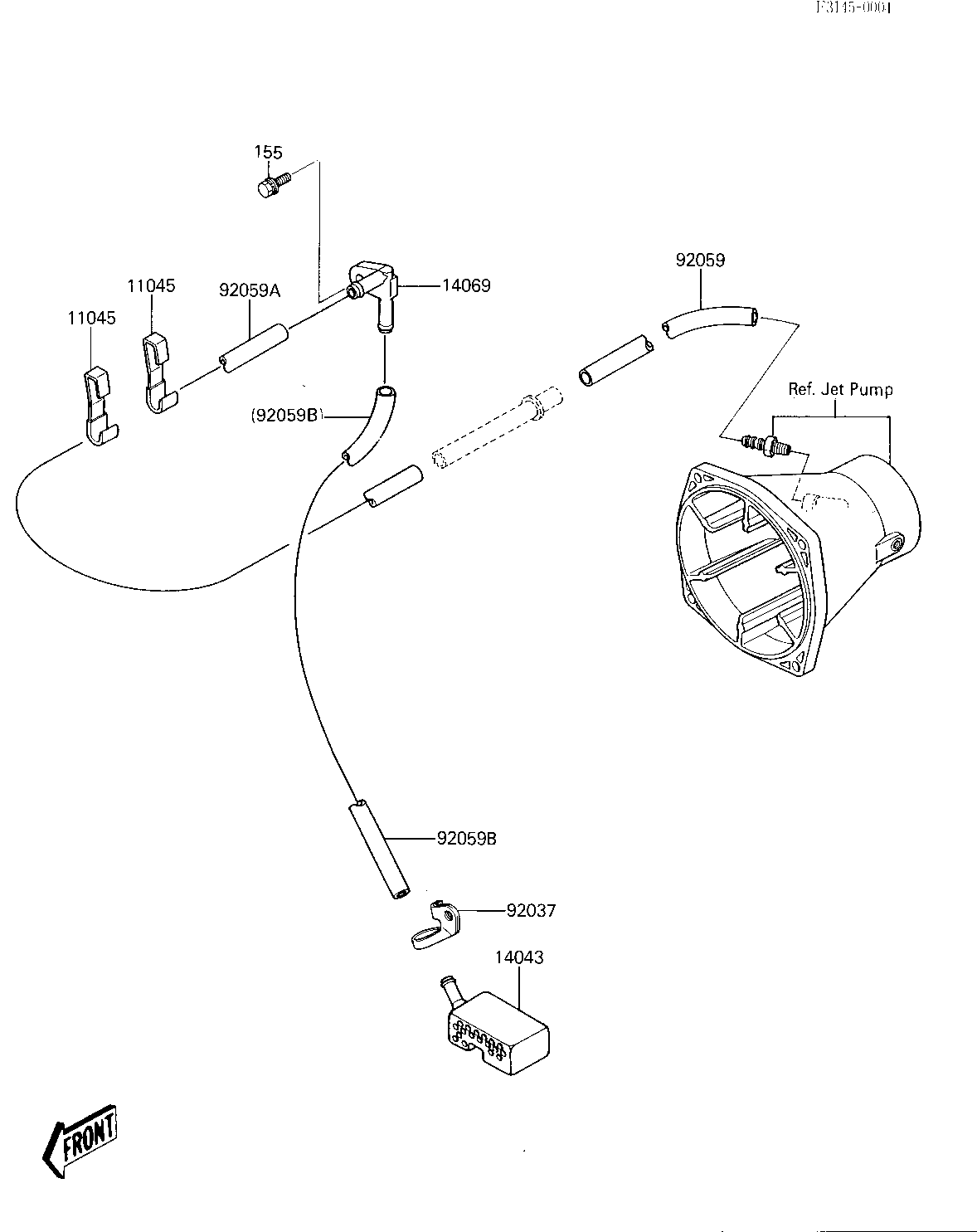

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11045 11045-3706 3
FILTER,BILGE PUMP 14043 59236-504 1
BREATHER 14069 14069-3001 1
CLAMP,BILGE FILTER 92037 92037-3737 1
TUBE,JET PUMP,9X16X30 92059 92059-3748 1
TUBE,BREATHER,9X16X40 92059A 92059-3749 1
TUBE,BILGE FILTER,9X1 92059B 92059-3750 1
BOLT-WSP-SMALL,8X25 155 155R0825 1
