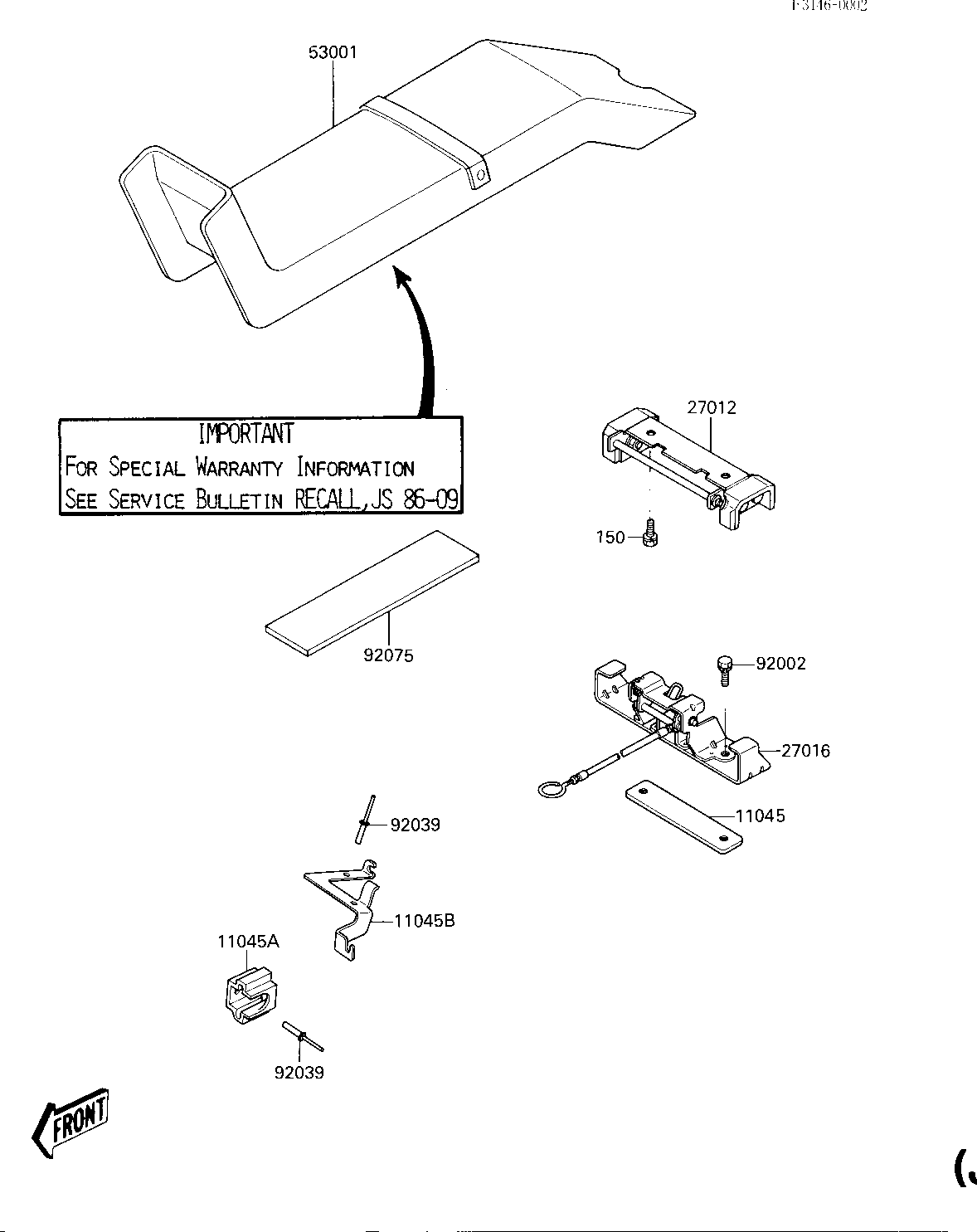

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT LOCK 11045 11045-3704 1
BRACKET,SEAT HOOK GUI 11045A 11045-3737 1
BRACKET,SEAT LOCK CAB 11045B 11045-3756 1
HOOK 27012 27012-3709 1
LOCK-ASSY,SEAT 27016 27016-3707 1
SEAT-ASSY,BLUE 53001 53001-3704-NF 1
BOLT 92002 92002-3775 2
RIVET 92039 92039-3701 4
DAMPER 92075 92075-3723 1
BOLT-WS,6X14 150 150R0614 2
