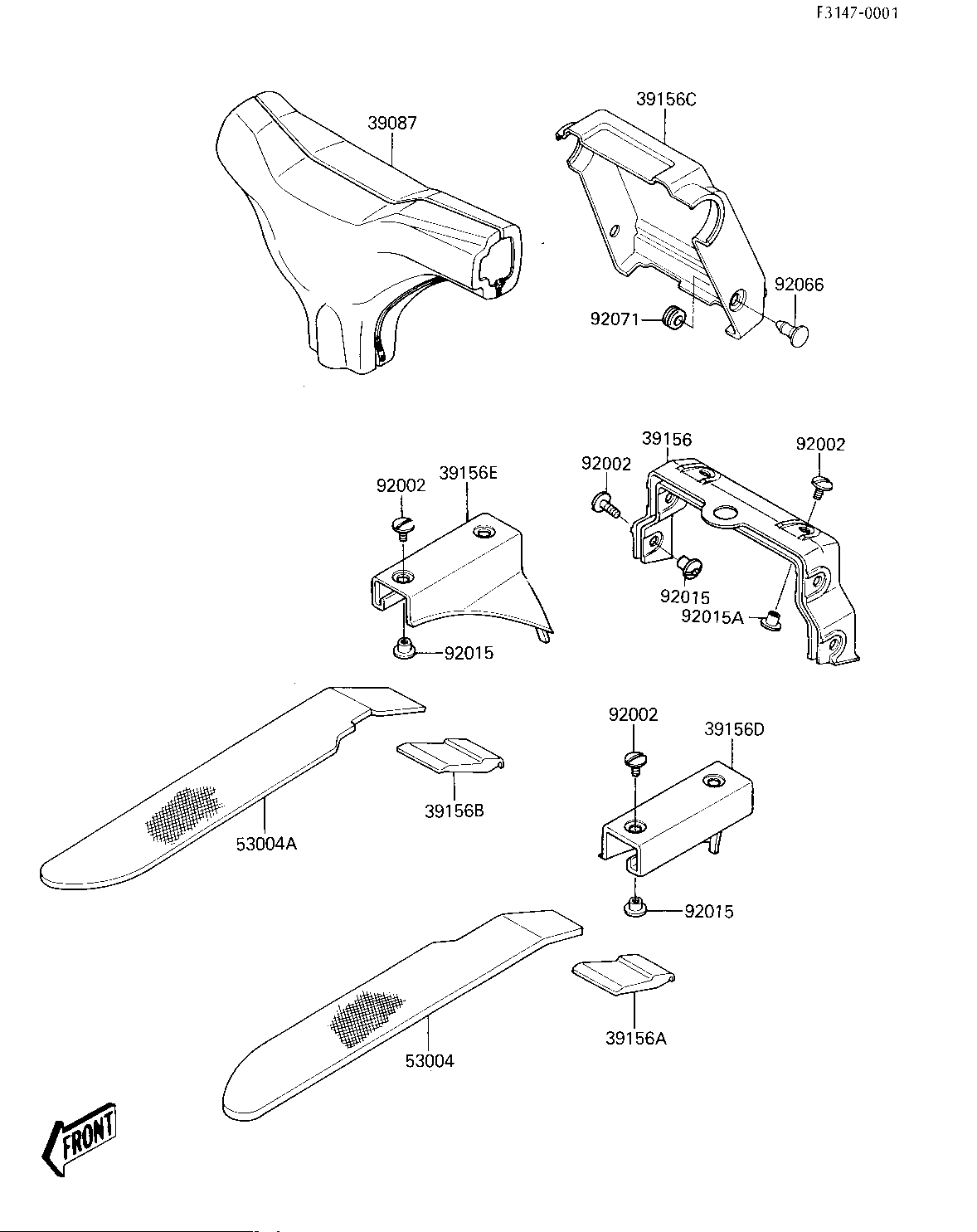

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PAD-HANDLE 39087 39087-3705 1
PAD,CNT 39156 39156-3738 1
PAD,DECK,LH 39156A 39156-3709 1
PAD,DECK,RH 39156B 39156-3710 1
PAD,DECK,BLUE 39156C 39156-3711-BF 1
PAD,LH 39156D 39156-3712 1
PAD,RH 39156E 39156-3713 1
MAT,DECK,LH 53004 53004-3716 1
MAT,DECK,RH 53004A 53004-3717 1
SCREW 92002 92009-1562 10
NUT 92015 92015-3733 8
NUT 92015A 92015-3747 2
PLUG,DECK PAD,BLUE 92066 92066-3707-BF 2
GROMMET 92071 92071-3735 2
