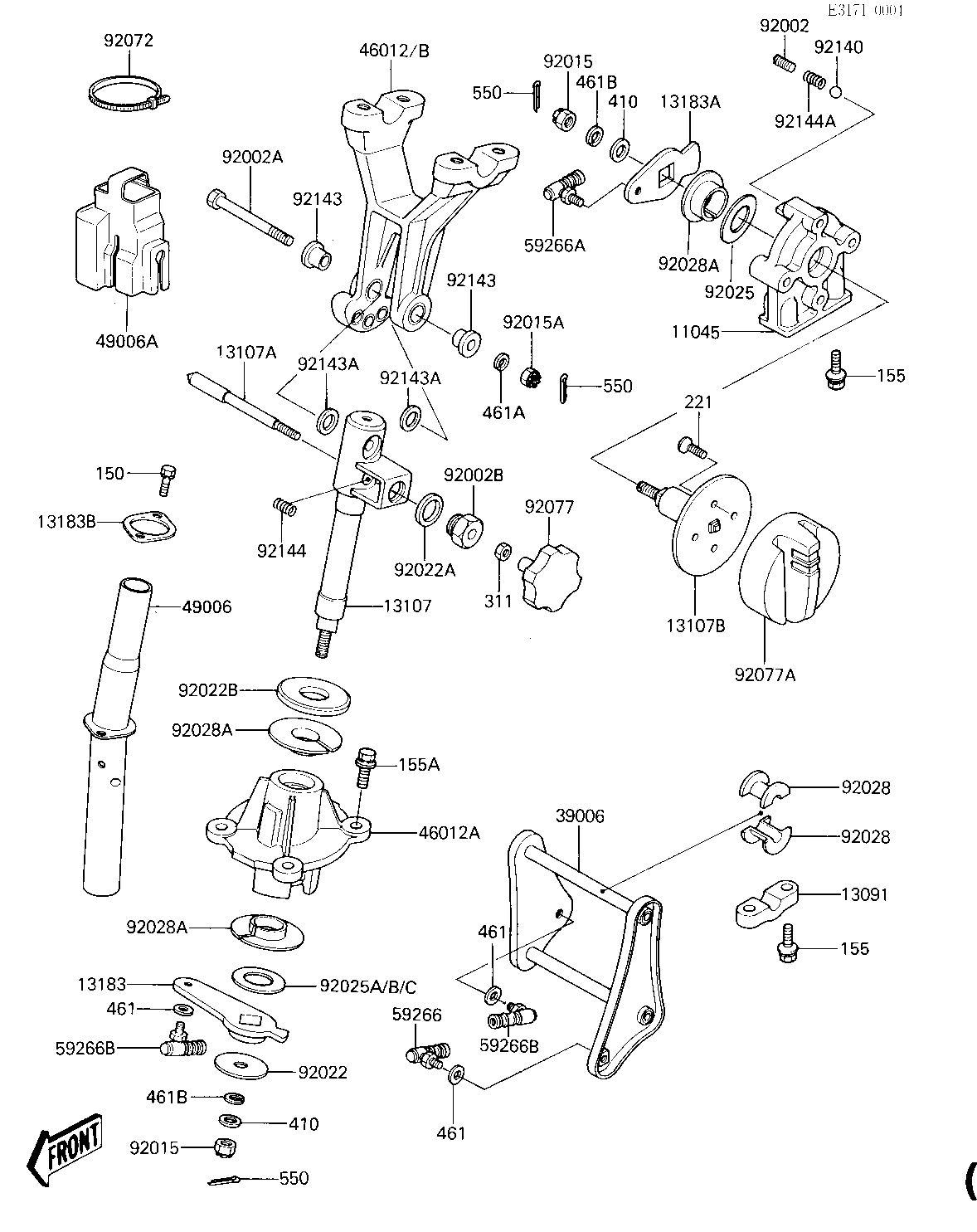

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET | 11045 | 11044-3709 | 1 | ||
HOLDER | 13091 | 13091-3708 | 2 | ||
SHAFT,STEERING | 13107 | 13107-5002 | 1 | ||
SHAFT | 13107A | 13107-3706 | 1 | ||
SHAFT | 13107B | 13107-3707 | 1 | ||
PLATE,STEERING | 13183 | 13169-3710 | 1 | ||
PLATE | 13183A | 13169-3711 | 1 | ||
PLATE,T=2MM | 13183B | 13169-3712 | 1 | ||
ARM-STRG | 39006 | 39006-3701 | 1 | ||
HOLDER-HANDLE,H=75MM | 46012 | 46012-3702 | 1 | ||
HOLDER-HANDLE | 46012A | 46012-3703 | 1 | ||
HOLDER-HANDLE,H=115MM | 46012B | 46012-3709 | 1 | ||
BOOT | 49006 | 49006-3705 | 1 | ||
BOOT | 49006A | 49006-3707 | 1 | ||
JOINT-BALL | 59266 | 59266-3707 | 1 | ||
JOINT-BALL | 59266A | 59266-3704 | 1 | ||
JOINT-BALL | 59266B | 59266-3705 | 2 | ||
SCREW-SET,8X16 | 92002 | 92002-3723 | 4 | ||
BOLT,8X73.5 | 92002A | 92002-3733 | 1 | ||
BOLT,16X10 | 92002B | 92002-3734 | 1 | ||
NUT,CASTLE,10MM | 92015 | 92015-3718 | 2 | ||
NUT,CASTLE,8MM | 92015A | 92015-3719 | 1 | ||
WASHER,10.5X40X4 | 92022 | 92022-3724 | 1 | ||
WASHER,16.5X26X4 | 92022A | 92022-3727 | 1 | ||
WASHER | 92022B | 92022-571 | 1 | ||
SHIM,24.5X38X2.0 | 92025 | 92025-3023 | 1 | ||
SHIM,21X40X0.3 | 92025A | 92025-3712 | AR | ||
SHIM,21X40X0.5 | 92025B | 92025-3713 | AR | ||
SHIM,21X40X1.0 | 92025C | 92025-3714 | AR | ||
BUSHING | 92028 | 92028-3715 | 4 | ||
BUSHING | 92028A | 92028-3722 | 3 | ||
BAND | 92072 | 92072-3509 | 1 | ||
KNOB | 92077 | 92077-3713 | 1 | ||
KNOB | 92077A | 92077-3706 | 1 | ||
BALL,6.35MM | 92140 | 92140-3703 | 4 | ||
COLLAR,L=18 | 92143 | 92143-3701 | 2 | ||
COLLAR,14.2X20X3.8 | 92143A | 92143-3703 | 2 | ||
SPRING | 92144 | 92081-3707 | 1 | ||
SPRING | 92144A | 92144-3708 | 4 | ||
BOLT-WS,5X20 | 150 | 150R0520 | 2 | ||
BOLT-WSP-SMALL,8X30 | 155 | 155R0830 | 6 | ||
BOLT-WSP-SMALL,8X35 | 155A | 155R0835 | 4 | ||
SCREW-CSK-CROS,5X12 | 221 | 221R0512 | 4 | ||
NUT,6M/M | 311 | 311R0600 | 1 | ||
W-PLAIN-S,10MM | 410 | 410S1000 | 2 | ||
WASHER-SPRING,6MM | 461 | 461S0600 | 3 | ||
WASHER SPRING 8MM | 461A | 461S0800 | 1 | ||
WASHER-SPRING,10MM | 461B | 461S1000 | 2 | ||
PIN-COTTER | 550 | 550S2020 | 3 |
