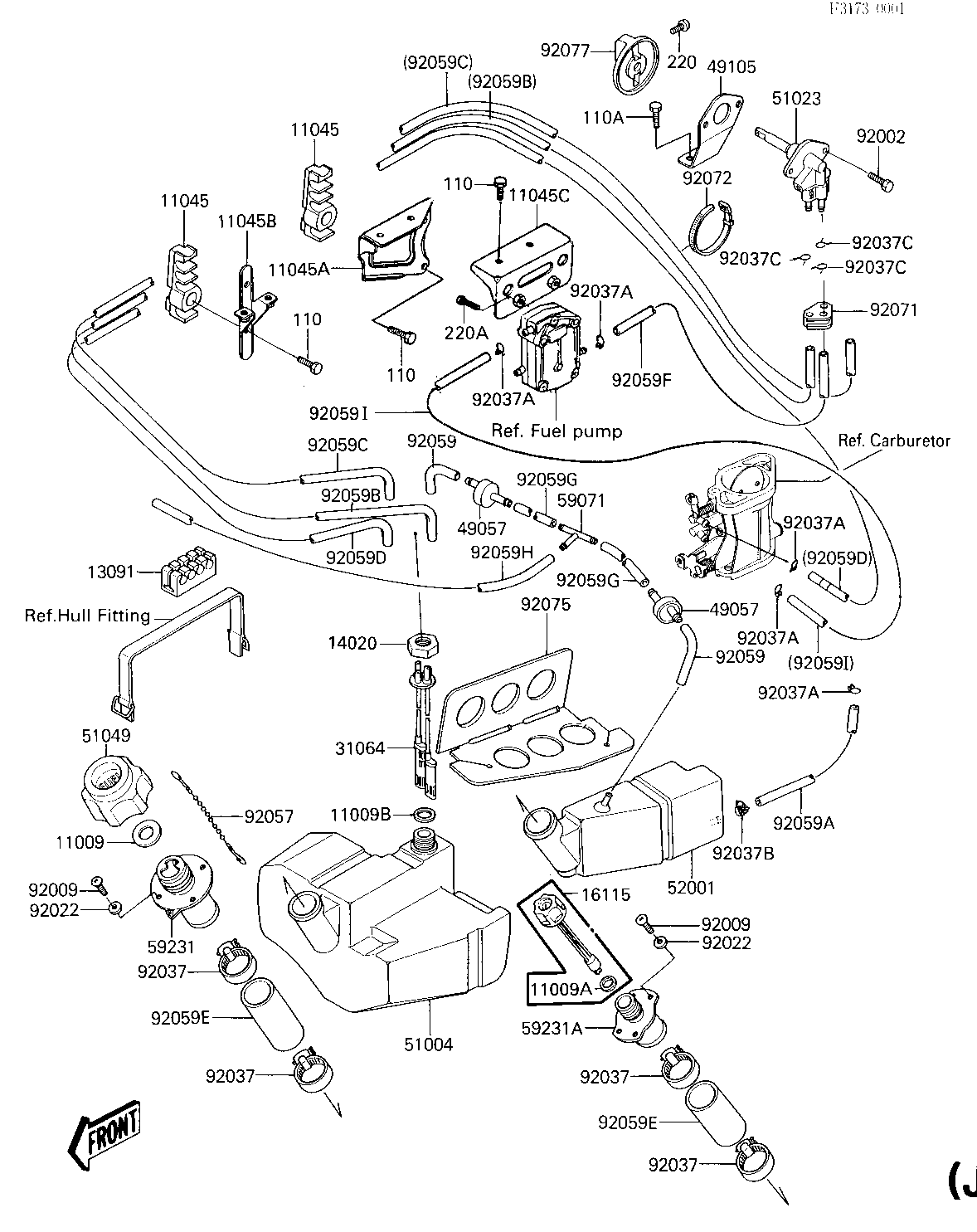

1987 X2 - FUEL TANK/OIL TANK (JF650-A1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL TANK CAP 11009 11009-3020 1
GASKET,OIL FILLER CAP 11009A 11009-3736 1
GASKET 11009B 92065-504 1
BRACKET,FUEL PIPE 11045 11044-3718 2
BRACKET,FUEL PUMP 11045A 11044-3719 1
BRACKET 11045B 11045-3701 1
BRACKET,FUEL PUMP 11045C 11045-3702 1
HOLDER,FUEL PIPE 13091 13091-3709 1
RETAINER 14020 23072-501 1
CAP-OIL FILLER 16115 16115-3705 1
PIPE-COMP,FUEL 31064 31064-3717 1
VALVE,RELIEF 49057 49057-3001 2
BRACKET-TAP 49105 49105-3704 1
TANK-FUEL 51004 51004-3704 1
TAP-ASSY,FUEL 51023 51023-3703 1
CAP-TANK,FUEL 51049 51049-3705 1
TANK-OIL 52001 52001-3704 1
JOINT 59071 59071-3705 1
FILLER,FUEL TANK 59231 59231-3702 1
FILLER,OIL TANK 59231A 59231-3703 1
BOLT 92002 92002-3747 2
SCREW 0.16X0.5 92009 92011-562 8
WASHER 92022 92022-563 8
HOSE CLAMP 92037 92037-3009 4
CLAMP,SPARK PLUG CAP 92037A 92037-1173 5
CLAMP 92037B 92037-3726 1
CLAMP 92037C 92037-3727 3
CHAIN,COVER 92057 92057-3704 1
TUBE,FUEL,5.8X12.2X55 92059 92059-3026 2
TUBE,5.8X350 92059A 92059-3743 1
TUBE,"RES",5.8X1400 92059B 92059-3744 1
TUBE,"ON",5.8X1400 92059C 92059-3745 1
TUBE,7X1000 92059D 92059-3746 1
TUBE,45X53X70 92059E 92059-3751 2
TUBE,5.8X500 92059F 92059-3756 1
TUBE 92059G 92059-3766 2
TUBE 92059H 92059-3770 1
TUBE 92059I 92059-3788 1
GROMMET 92071 92071-3745 1
BAND,WIRING HARNESS 92072 92072-056 1
DAMPER 92075 92075-3728 1
KNOB,FUEL TAP 92077 92077-3704 1
BOLT 6X12 110 110R0612 6
BOLT 6X16 110A 110R0616 2
SCREW-PAN-CROS 220 220R0408 1
SCREW-PAN-CROS,6X40 220A 220R0640 2
