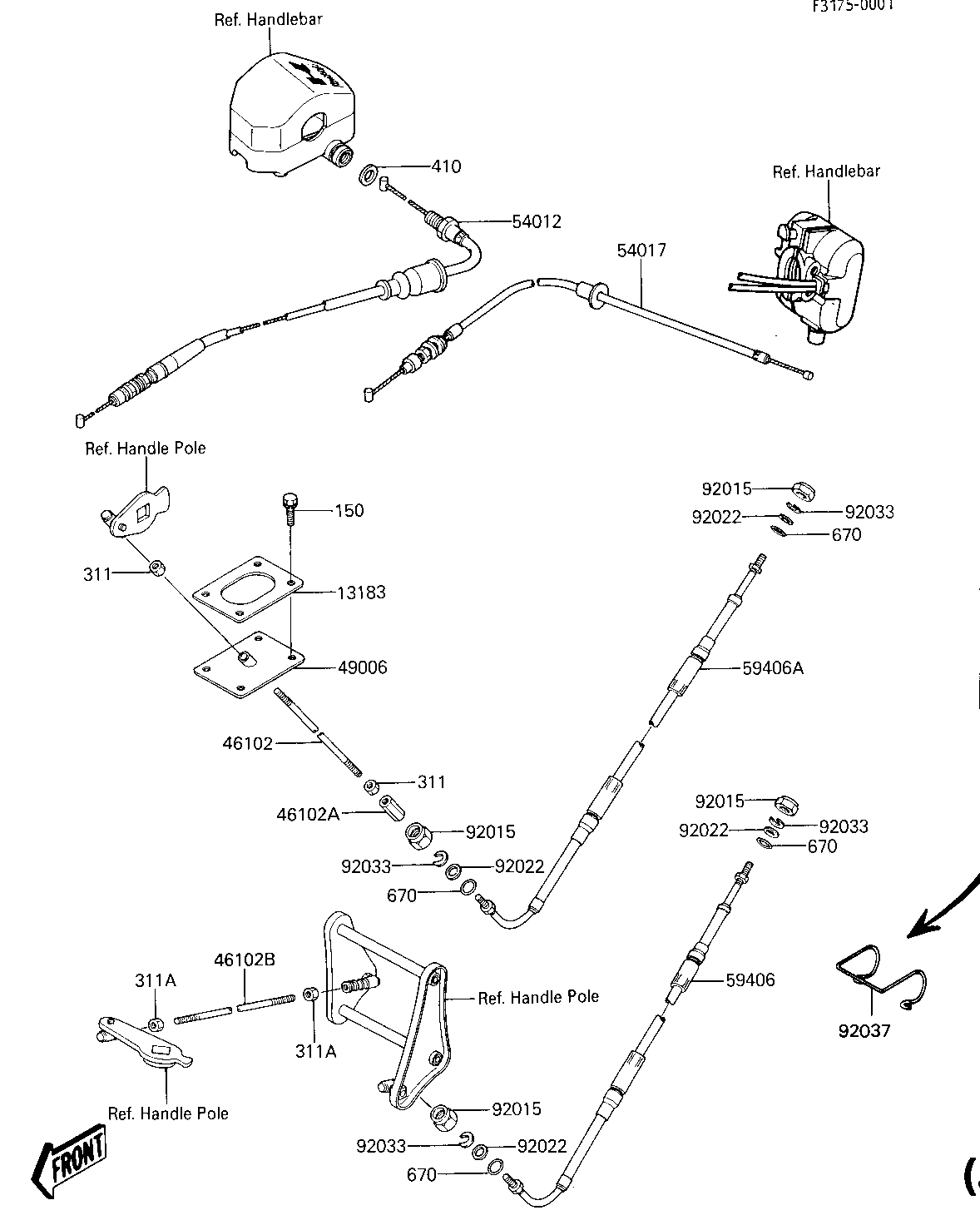

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13183 13169-3713 1
ROD,STEERING,5X130 46102 46102-3702 1
ROD,NUT,5MM 46102A 46102-3703 1
ROD,STEERING,6X190 46102B 46102-3704 1
BOOT 49006 49006-3706 1
CABLE-THROTTLE 54012 54012-3704 1
CABLE-STARTER 54017 54017-3702 1
CABLE-STRG 59406 59406-3723 1
CABLE-STRG,UP&DOWN 59406A 59406-3704 1
NUT 20 M/M 92015 92015-526 4
WASHER 92022 92022-535 4
'C'RING 92033 92036-501 4
BOLT-WS,5X20 150 150R0520 4
NUT-HEX,5MM 311 311R0500 2
NUT,6M/M 311A 311R0600 2
W-PLAIN-S,10MM 410 410S1000 1
"O" RING 670 670B2011 4
