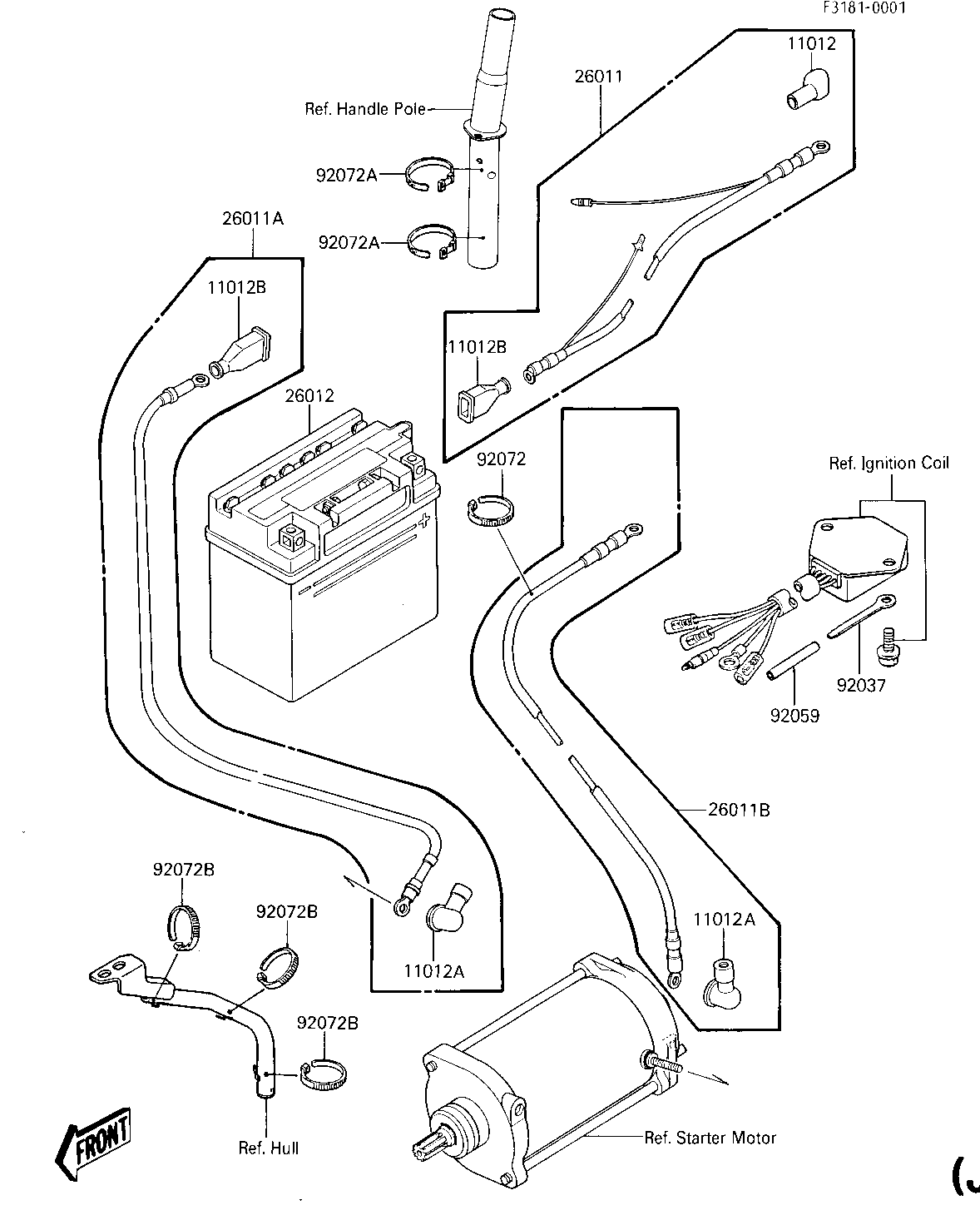

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,TERMINAL 11012 11012-1354 1
CAP 11012A 11012-3004 2
CAP-BATTERY TERMINAL 11012B 59176-501 2
WIRE-LEAD,BATTERY(+) 26011 26011-3706 1
WIRE-LEAD,BATTERY(-) 26011A 26011-3715 1
WIRE-LEAD,STARTER 26011B 26011-3717 1
YUA BAT YB16CL-B 26012 K26012-3704 1
CLAMP,L=100 92037 92037-3736 1
TUBE,VINYL,5X73 92059 92059-3017 1
BAND,SHORT 92072 92072-030 1
BAND,MIDDLE 92072A 92072-031 2
BAND 92072B 92072-3505 3
