Part Item Information

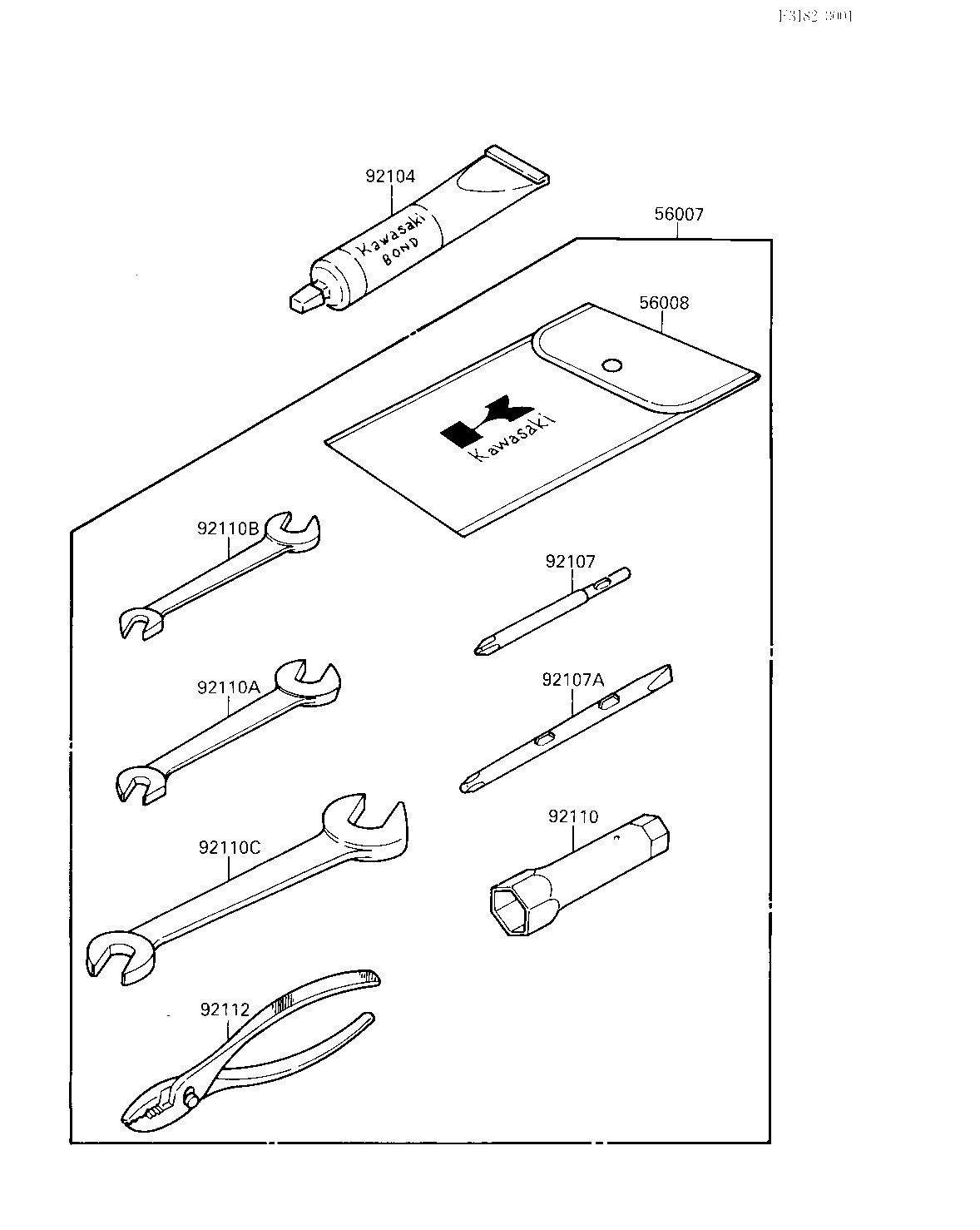

ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOOLKIT 56007 56007-3707 1
BAG,TOOL 56008 56008-1007 1
LIQUID GASKET 92104 92104-002 AR
SCREW DRIVER #3 PHLIP 92107 92107-005 1
92107-1052 (Canada) 92107A 92107-1051 1
TOOL-WRENCH 92110 92110-1113 1
TOOL-WRENCH,OPEN END, 92110A 92110-1152 1
WRENCH,OPEN,8X10 92110B 92126-001 1
TOOL-WRENCH,OPEN END, 92110C 92110-1153 1
PLIERS,160MM 92112 92112-003 1
