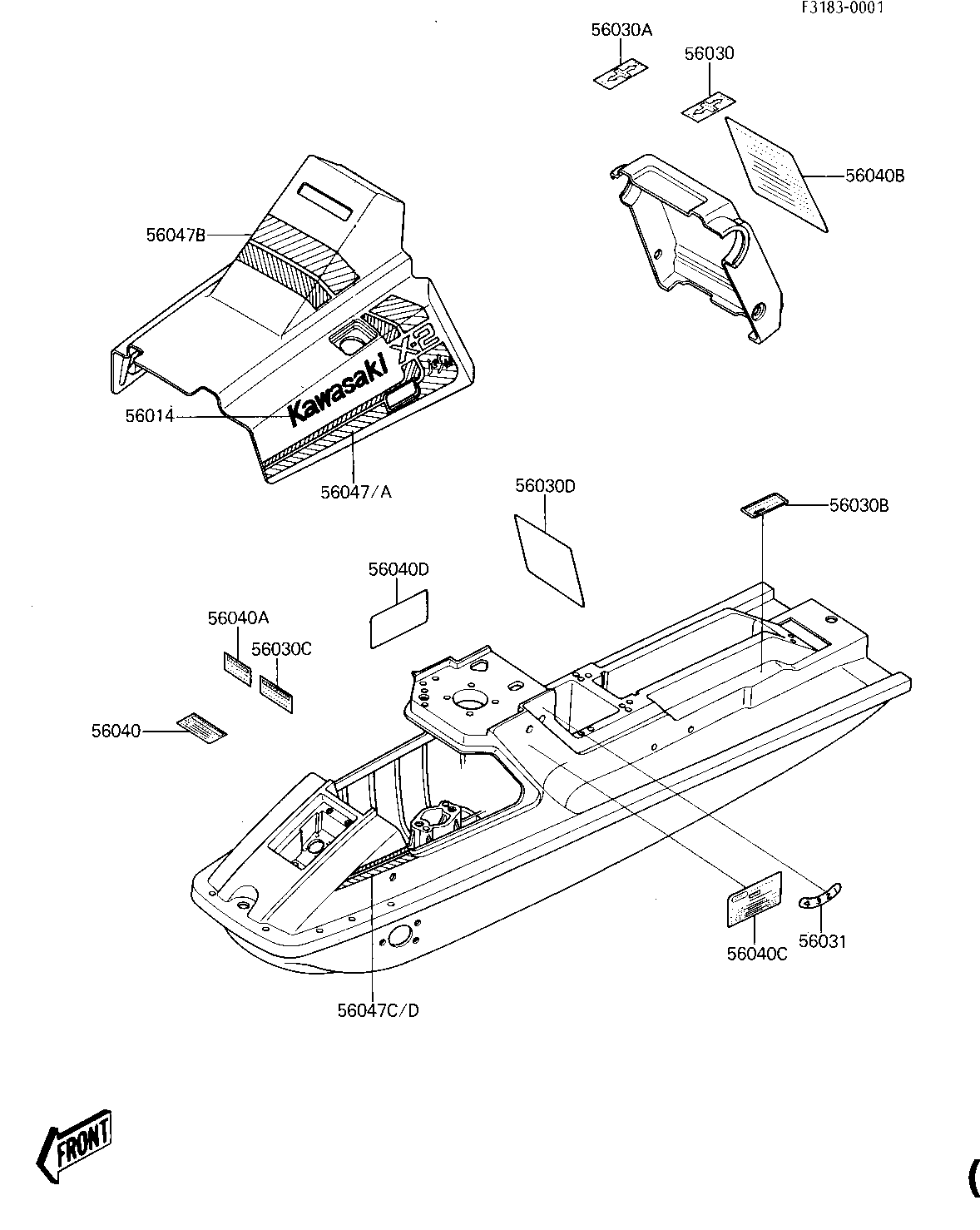

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,KAWASAKI 56014 56014-1138 2
LABEL,NOZZLE 56030 56030-3718 1
LABEL,FUEL 56030A 56030-3719 1
LABEL,FIRE 56030B 56030-3720 1
LABEL,OIL 56030C 56030-3721 1
LABEL,LAUNCHING 56030D 56030-3723 1
LABEL,MANUAL 56031 56031-3705 1
LABEL,WARNING 56040 56040-3711 1
LABEL,WARNING 56040A 56040-3712 1
LABEL,WARNING 56040B 56040-3713 1
LABEL,WARNING 56040C 56040-3714 1
LABEL,WARNING 56040D 56040-3715 1
PATTERN 56047 56047-1112 1
PATTERN 56047A 56047-1113 1
PATTERN 56047B 56047-1114 1
PATTERN 56047C 56047-1115 1
PATTERN 56047D 56047-1116 1
