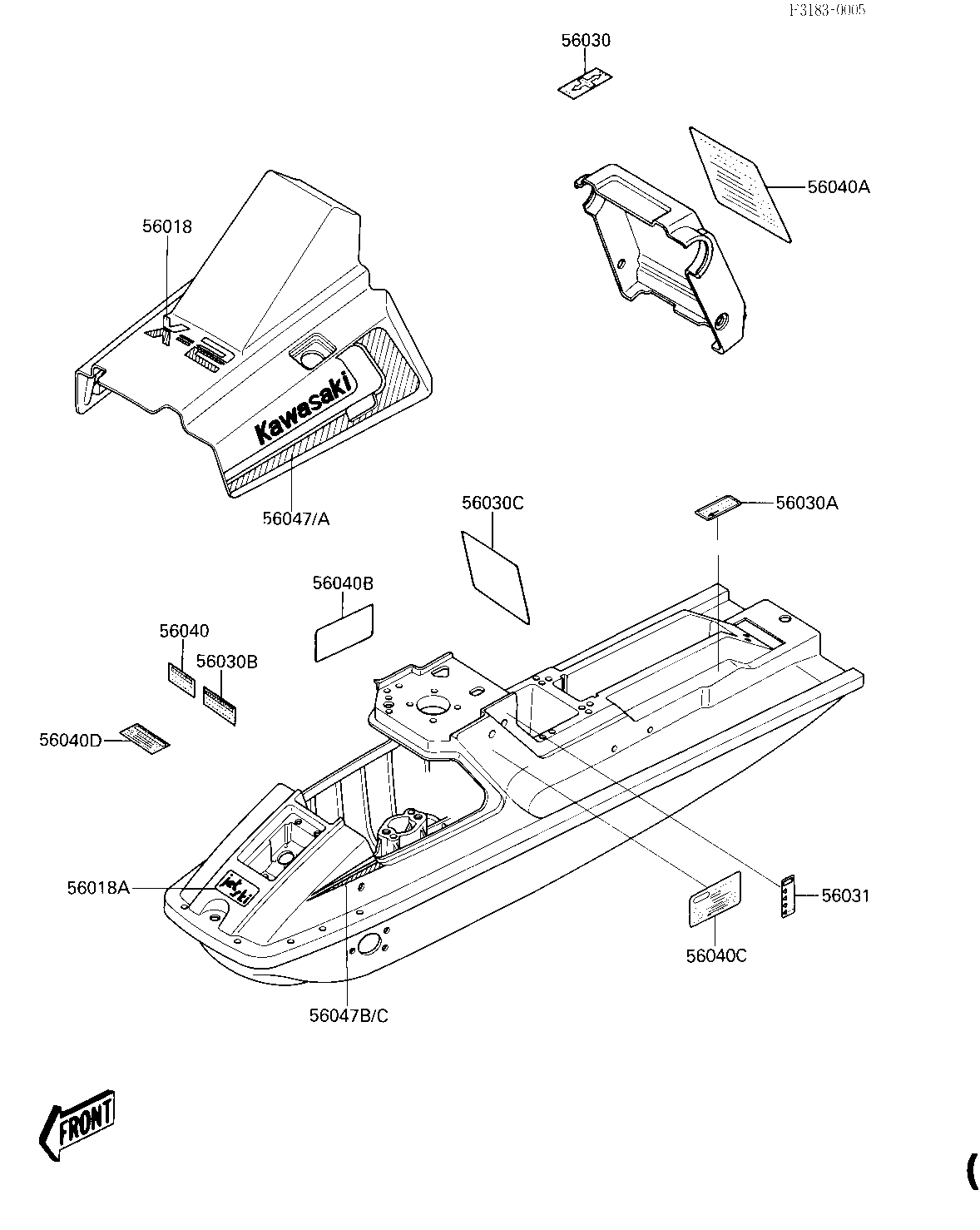

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,ENGINE HOOD,TOP 56018 56018-1995 1
MARK,HULL DECK,TOP 56018A 56018-1996 1
LABEL,FUEL 56030 56030-3719 1
LABEL,FIRE 56030A 56030-3720 1
LABEL,OIL 56030B 56030-3721 1
LABEL,LAUNCHING 56030C 56030-3723 1
LABEL 56031 56031-3708 1
LABEL,WARNING 56040 56040-3712 1
LABEL,WARNING 56040A 56040-3713 1
LABEL,WARNING 56040B 56040-3715 1
LABEL-WARNING 56040C 56040-3737 1
LABEL-WARNING-BRK-IN 56040D 56040-3738 1
PATTERN-ENGINE 56047 56047-1543 1
PATTERN-ENGINE 56047A 56047-1544 1
PATTERN-HULL 56047B 56047-1545 1
PATTERN,HULL 56047C 56047-1546 1
