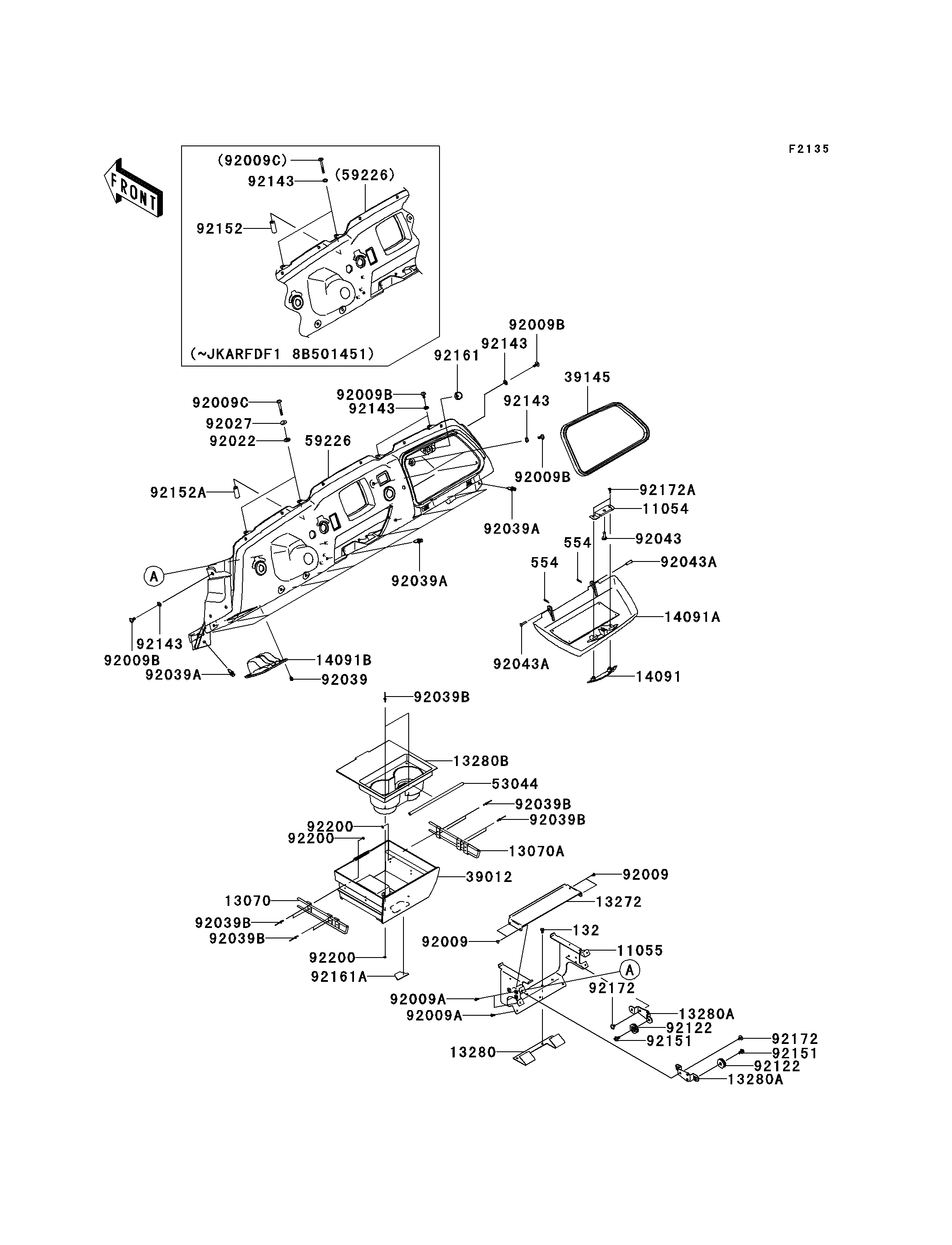

2008 Teryx® 750 4x4 NRA OUTDOORS™ - Front Box

DOWNLOAD PDF
SELECT A NEW PART
132
554
554
11054
11055
13070
13070A
13272
13280
13280A
13280A
13280B
14091
14091A
14091B
39012
39145
53044
59226
92009
92009
92009A
92009A
92009B
92009B
92009B
92009B
92009C
92022
92027
92039
92039A
92039A
92039A
92039B
92039B
92039B
92039B
92039B
92043
92043A
92043A
92122
92122
92143
92143
92143
92143
92143
92151
92151
92152
92152A
92161
92161A
92172
92172
92172A
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X10 132 132BB0610 4
PIN-SNAP 554 554DA0600 2
BRACKET 11054 11054-1789 1
BRACKET 11055 11055-0901 1
GUIDE,CUP HOLDER,LH 13070 13070-0098 1
GUIDE,CUP HOLDER,RH 13070A 13070-0099 1
PLATE,CUP HOLDER 13272 13272-0446 1
HOLDER,LWR 13280 13280-0210 1
HOLDER 13280A 13280-0289 2
HOLDER 13280B 13280-0296 1
COVER,STORAGE CAP,F.BLACK 14091 14091-0700-6Z 1
COVER,STORAGE,CAMOUFLAGE 14091A 14091-0922-16P 1
COVER,LH,CAMOUFLAGE 14091B 14091-0923-16P 1
CASE-STORAGE,CAMOUFLAGE 39012 39012-0025-16P 1
TRIM-SEAL,L=940 39145 39145-0029 1
TRIM,L=256.6 53044 53044-0043 1
PANEL-CONTROL,CAMOUFLAGE 59226 59226-0013-16P 1
SCREW,TAPPING,4X8 92009 92009-1155 4
SCREW,TAPPING,4X12 92009A 92009-1444 7
SCREW,6X16 92009B 92009-1621 6
SCREW,6X56 92009C 92009-1829 2
WASHER,10.5X20X1 92022 92022-239 2 (JKARFDF1 8B501452 - )
COLLAR,L=4.7 92027 92027-1964 2 (JKARFDF1 8B501452 - )
RIVET 92039 92039-0046 4
RIVET 92039A 92039-1229 10
RIVET 92039B 92039-1231 10
PIN 92043 92043-0138 1
PIN,6X23 92043A 92043-0164 2
ROLLER 92122 92122-0024 4
COLLAR 92143 92143-1087 8
BOLT,FLANGED,6X13 92151 92151-1703 4
COLLAR,7.48X14.28X40 92152 92152-0508 2 ( - JKARFDF1 8B501451)
COLLAR,7.95X15.88X40 92152A 92152-0777 2 (JKARFDF1 8B501452 - )
DAMPER 92161 92161-0568 1
DAMPER,CUP HOLDER 92161A 92161-0653 1
SCREW,6X10 92172 92172-0005 6
SCREW,TAPPING,4X16 92172A 92172-0347 2
WASHER,3.5X8X1 92200 92200-1251 10
