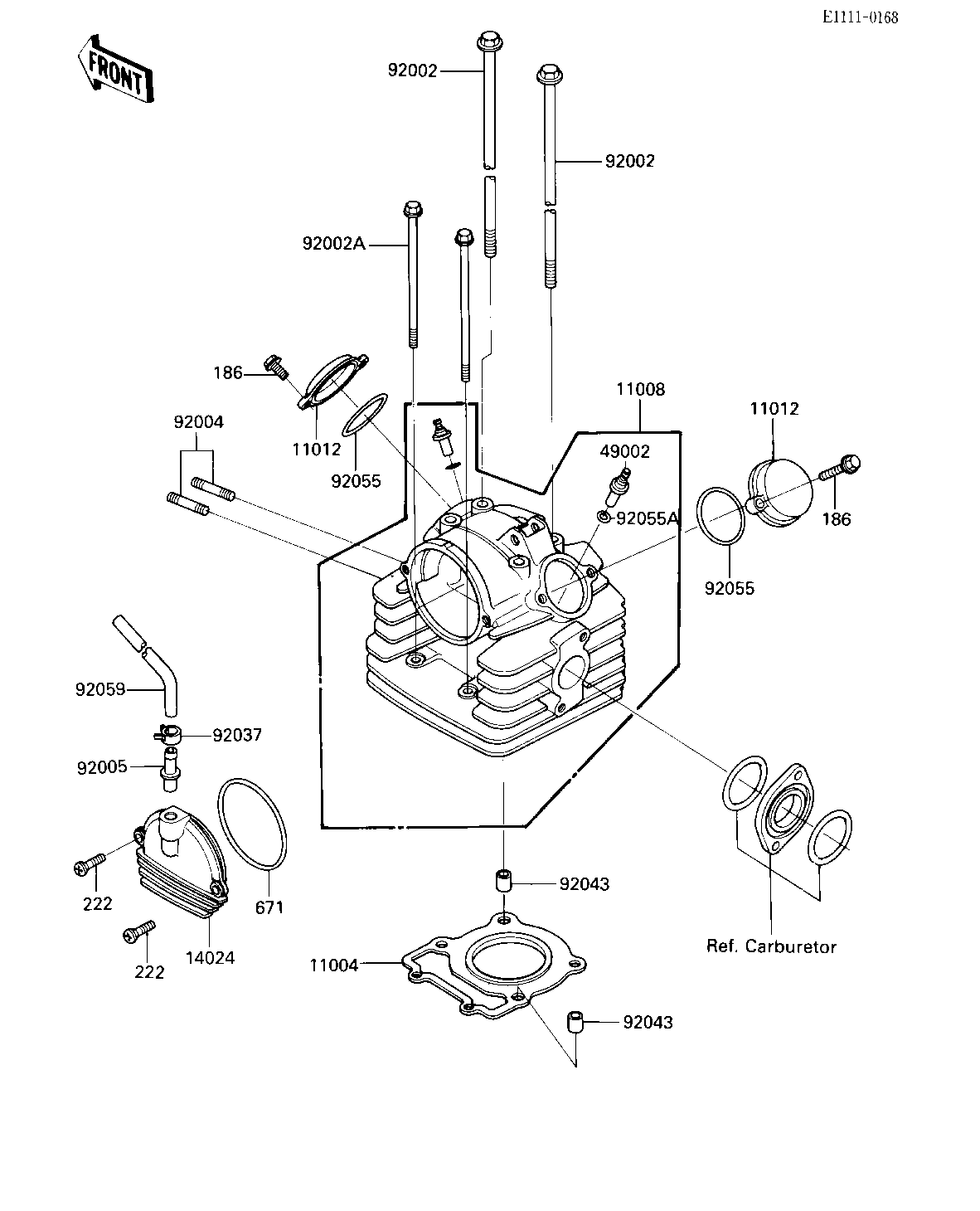

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-1124 1
HEAD-COMP-CYLINDER 11008 11008-1152 1
CAP,ROCKER ARM 11012 11012-1486 2
COVER,CAMSHAFT 14024 14025-1974 1
GUIDE-VALVE 49002 49002-1058 2
BOLT,8X207 92002 92001-1892 4
BOLT,6X97 92002A 92001-1893 2
STUD,6X30 92004 92004-1128 2
FITTING,BREATHER PIPE 92005 92005-1124 1
CLAMP 92037 92037-1181 1
PIN,DOWEL,10X8.2X14 92043 92043-1037 2
"0" RING,53.5MM 92055 92055-112 2
RING-O,VALVE GUIDE 92055A 92055-1177 2
TUBE 92059 92059-1511 1
BOLT-UPSET-WP 186 186G0625 4
SCREW,OVL CNTSNK,6X16 222 222E0616 2
"0" RING,95MM 671 671B2595 1
