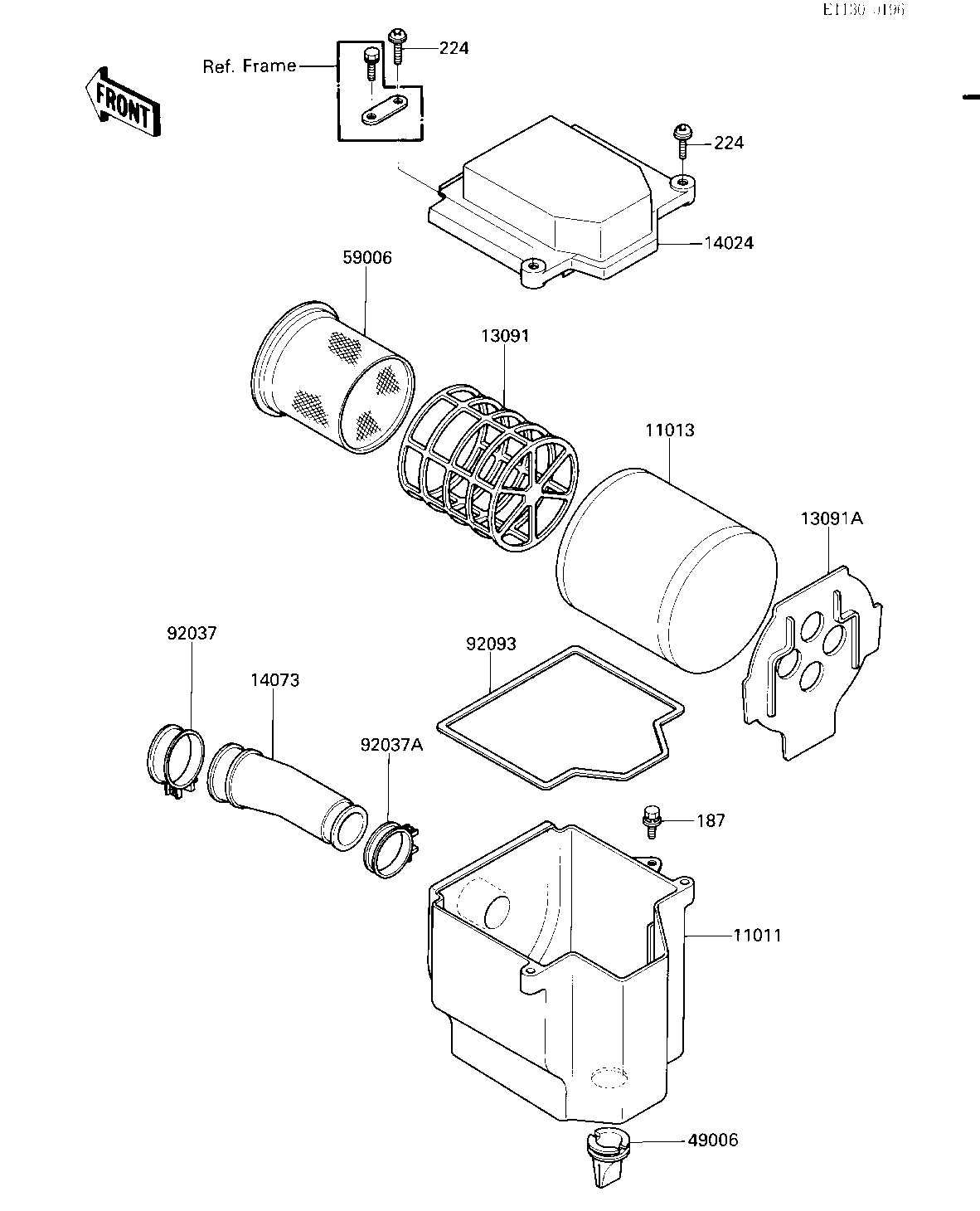

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER 11011 11011-1215 1
ELEMENT-AIR FILTER 11013 11013-1130 1
HOLDER,ELEMENT 13091 13091-1121 1
HOLDER,ELEMENT 13091A 13091-1125 1
COVER,AIR FILTER 14024 14024-1141 1
DUCT,AIR FILTER 14073 14073-1169 1
BOOT 49006 49006-1065 1
ARRESTER-FLAME 59006 59006-1051 1
CLAMP-INLET PIPE 92037 92037-061 1
CLAMP,MUFFLER 92037A 92037-177 1
SEAL,AIR FILTER CASE 92093 92093-1203 1
BOLT-UPSET-WSP 187 187B0616 1
SCREW-PAN-WP-CROS 224 224B0620 2
