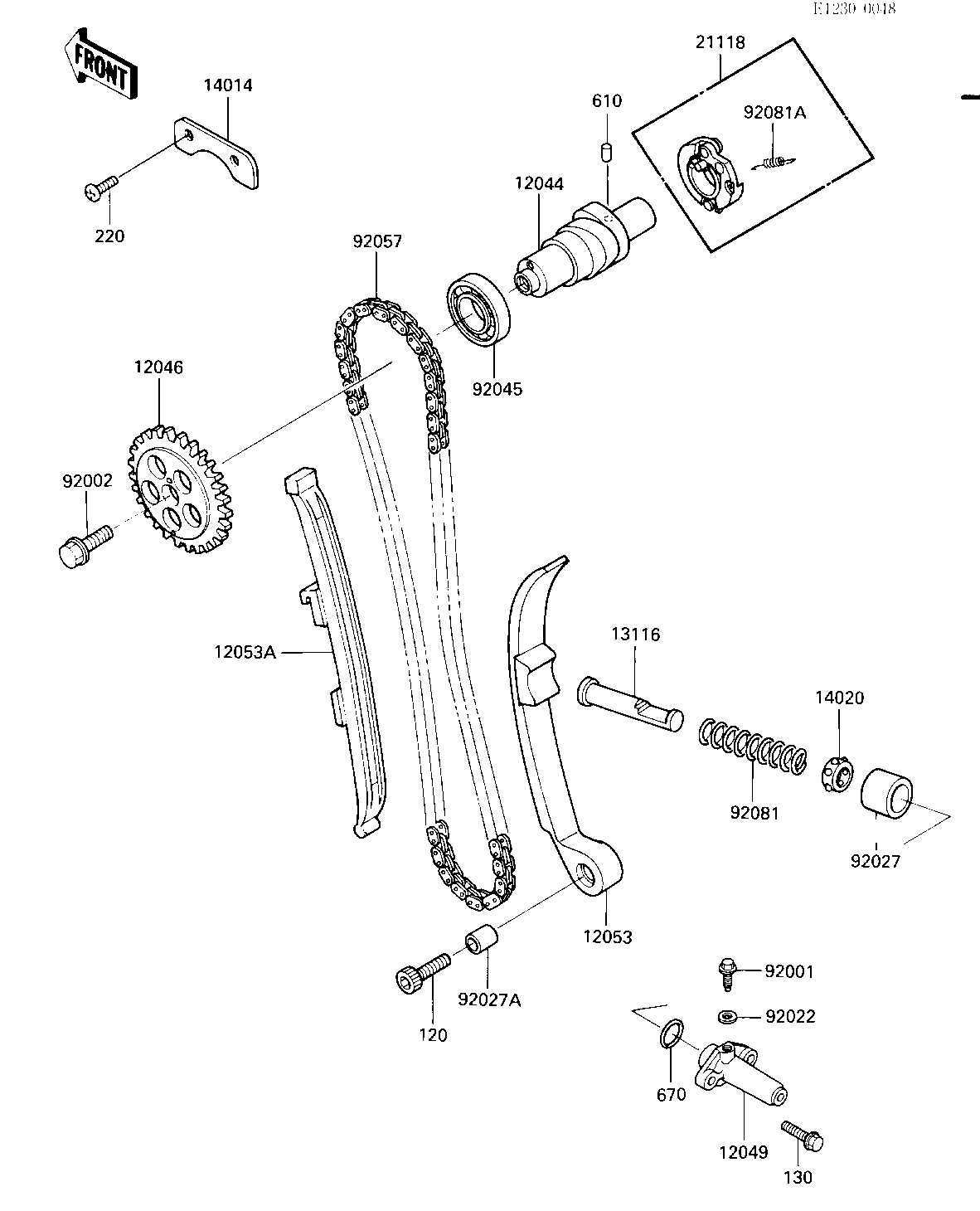

1987 KLT185 - CAMSHAFT/CHAIN/TENSIONER
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAMSHAFT-VALVE | 12044 | 12044-1148 | 1 | ||
SPROCKET,CAM CHAIN | 12046 | 12046-1059 | 1 | ||
TENSIONER,CAM CHAIN | 12049 | 12049-1055 | 1 | ||
GUIDE-CHAIN,RR | 12053 | 12053-1120 | 1 | ||
GUIDE-CHAIN,FR | 12053A | 12053-1121 | 1 | ||
ROD,PUSH,CAM CHAIN | 13116 | 13116-1019 | 1 | ||
PLATE-POSITION | 14014 | 14014-1054 | 1 | ||
RETAINER,TENSIONER | 14020 | 14020-1054 | 1 | ||
DECOMPRESSOR | 21118 | 21118-1059 | 1 | ||
BELT,TENSIONER ADJUST | 92001 | 92001-1155 | 1 | ||
BOLT,10X23 | 92002 | 92001-1859 | 1 | ||
WASHER OIL PUMP BANJO | 92022 | 92022-077 | 1 | ||
COLLAR,TENSIONER | 92027 | 92027-1273 | 1 | ||
COLLAR,6X8X10 | 92027A | 92027-1721 | 1 | ||
BEARING-BALL | 92045 | 92045-1056 | 1 | ||
CHAIN,CAM,79RH2010,10 | 92057 | 92057-1165 | 1 | ||
SPRING,TENSIONER | 92081 | 92081-1105 | 1 | ||
SPRING,DECOMPRESSOR | 92081A | 92081-1674 | 1 | ||
BOLT,SOCKET,6X22 | 120 | 120P0622 | 1 | ||
BOLT,FLANGED,6X25 | 130 | 130G0625 | 2 | ||
SCREW PAN HEAD 6X14 | 220 | 220B0614 | 2 | ||
PIN DOWEL 4X8 | 610 | 610A0408 | 1 | ||
"0" RING,21MM | 670 | 670B2021 | 1 |
