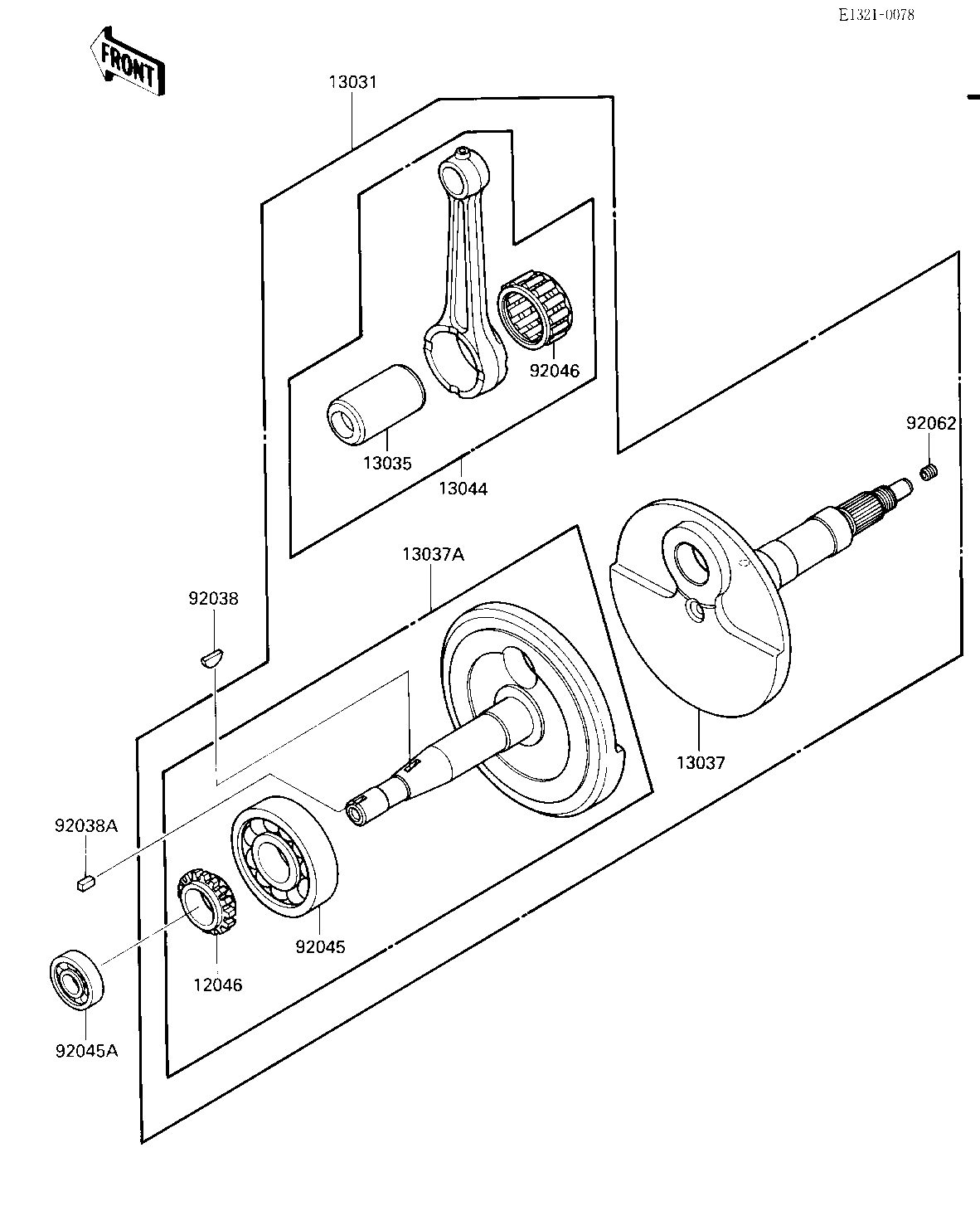

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,CAM CHAIN,19 12046 12046-1058 1
CRANKSHAFT-COMP 13031 13031-1216 1
PIN-CRANK 13035 13035-1063 1
CRANKSHAFT,RH 13037 13037-1259 1
CRANKSHAFT,LH 13037A 13037-5044 1
SET-CONNECTING ROD 13044 13044-5054 1
WOODRUFF KEY 92038 92038-001 1
KEY,SUNK 92038A 92038-1051 1
BEARING-BALL,6305JR2C 92045 92045-1120 1
BEARING-BALL,#6903C3 92045A 92045-1131 1
BEARING-NEEDLE 92046 92046-1126 1
NOZZLE 92062 92062-1053 1
