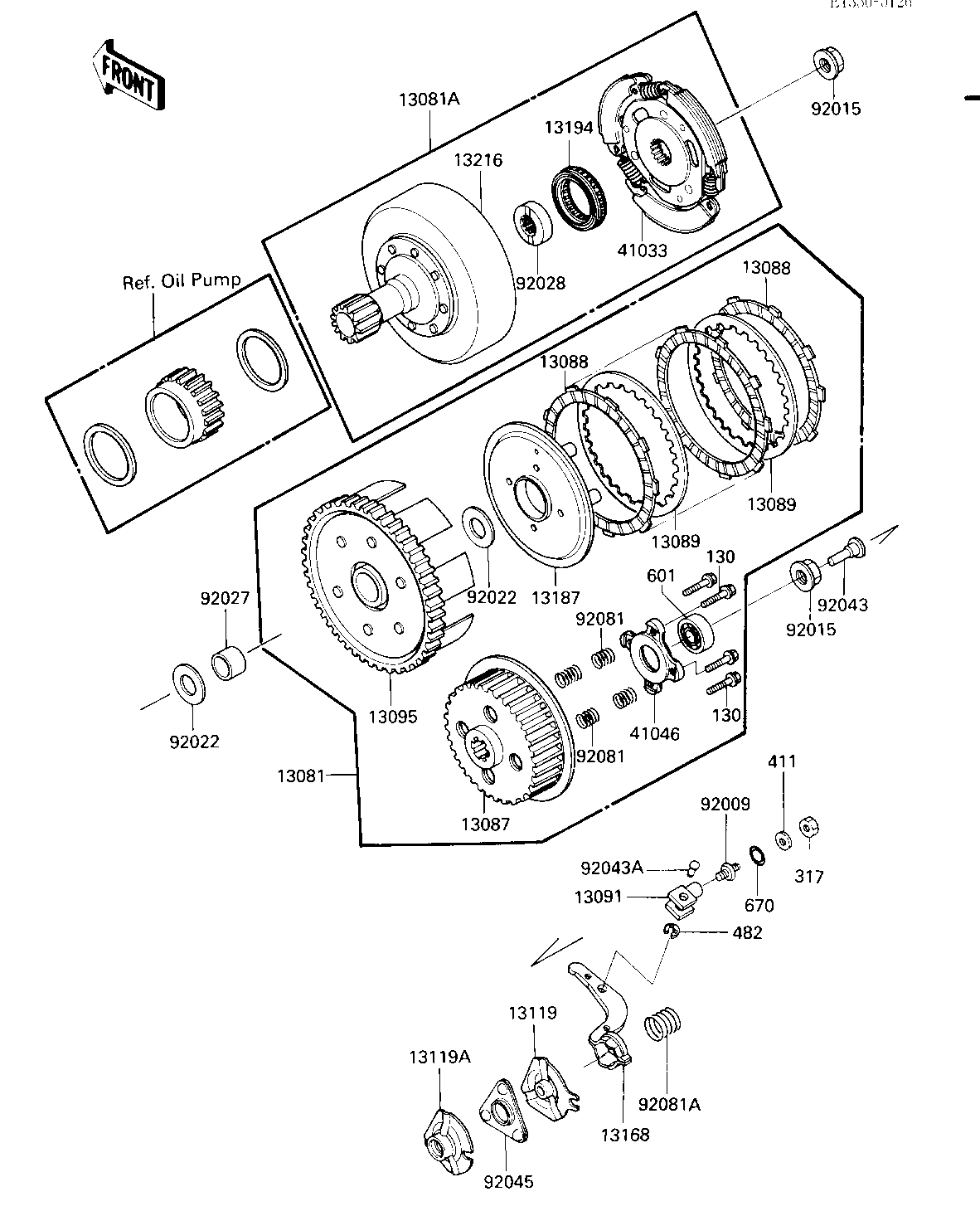

1987 KLT185 - CLUTCH

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CLUTCH-ASSY 13081 13081-1205 1
CLUTCH-ASSY,FR,ENGINE 13081A 13081-1209 1
HUB-CLUTCH 13087 13087-1054 1
PLATE-FRICTION 13088 13088-1016 5
PLATE-CLUTCH 13089 13089-1012 4
HOLDER,CLUTCH RELEASE 13091 13091-1341 1
HOUSING-COMP-CLUTCH 13095 13095-1134 1
CAM-RELEASE 13119 13119-1060 1
CAM-RELEASE 13119A 13119-1054 1
LEVER,CLUTCH RELEASE 13168 13168-1223 1
PLATE-CLUTCH OPERATIN 13187 13187-1051 1
CLUTCH-ONEWAY 13194 13194-1055 1
GEAR-COMP,CLUTCH 13216 13216-1055 1
HUB-ASSY,CLUTCH 41033 41033-1567 1
HOUSING-BEARING 41046 41046-1055 1
SCREW,CLUTCH RELEASE 92009 92009-1303 1
NUT 92015 92015-1465 2
WASHER-CLUTCH THRUST 92022 92022-168 2
COLLAR,20X25X21 92027 92027-1798 1
BUSHING,CLUTCH 92028 92028-1292 1
PIN,CLUTCH 92043 92043-1229 1
PIN,CLUTCH RELEASE 92043A 92043-1230 1
RETAINER,CLUTCH RELEA 92045 14020-1093 1
SPRING,CLUTCH 92081 92081-1680 4
SPRING,SHOCKABSORBER, 92081A 92081-1681 1
BOLT-FLANGED,6X20 130 130P0620 4
NUT,8M/M 317 317B0800 1
WASHER PLAIN 8MM 411 411B0800 1
CIRCLIP 6MM 482 482J6000 1
BEARING BALL #6201 601 601B6201 1
"O" RING,8MM 670 670B1508 1
