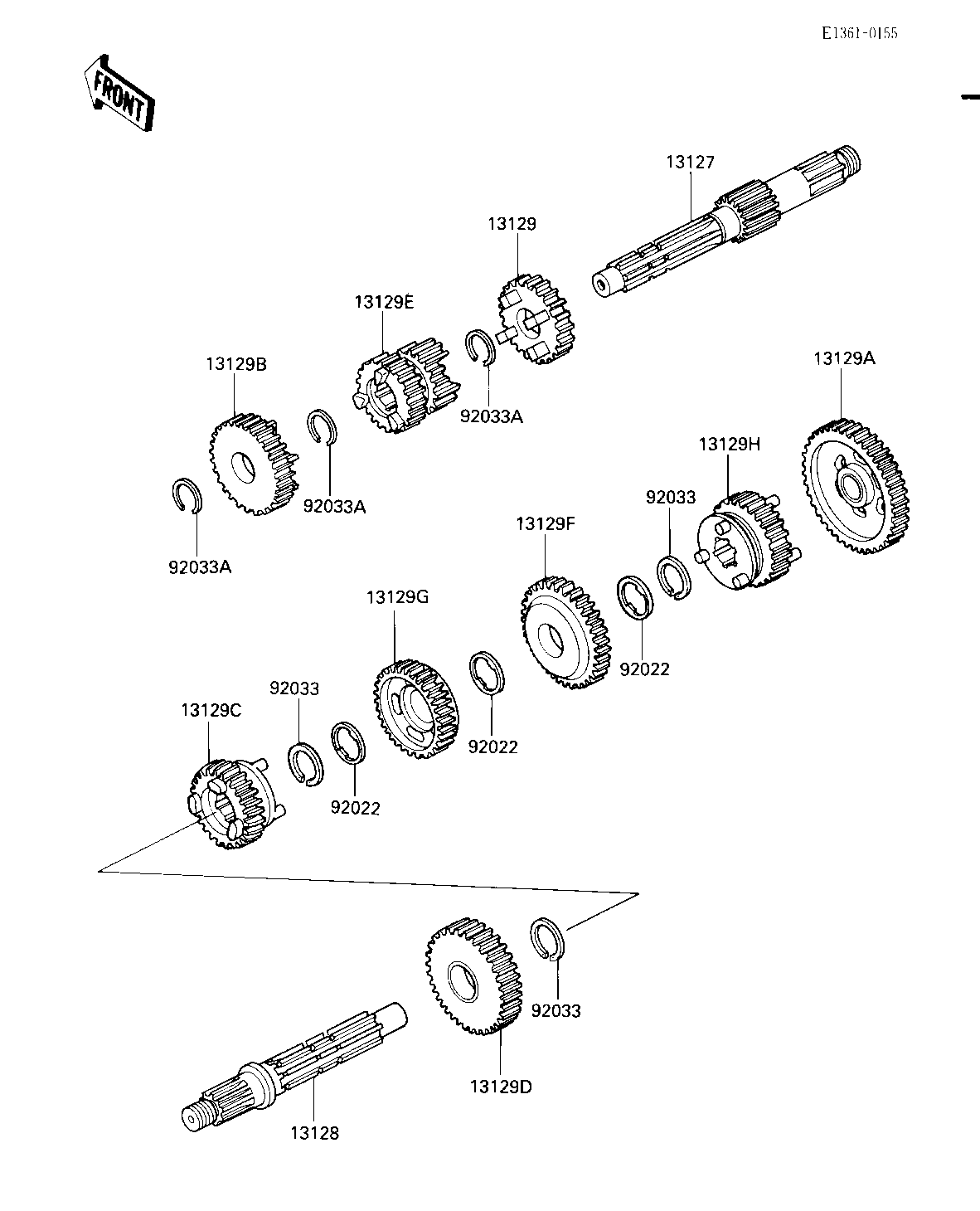

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION IN 13127 13127-1109 1
SHAFT-TRANSMISSION OU 13128 13128-1122 1
GEAR,INPUT 4TH,26T 13129 13129-1541 1
GEAR,OUTPUT LOW,40T 13129A 13129-1543 1
GEAR,INPUT TOP,28T 13129B 13129-1674 1
GEAR-TRANSMISSION SPU 13129C 13129-1690 1
GEAR-TRANSMISSION SPU 13129D 13129-1691 1
GEAR-TRANSMISSION SPU 13129E 13129-1696 1
GEAR-TRANSMISSION SPU 13129F 13129-1697 1
GEAR-TRANSMISSION SPU 13129G 13129-1698 1
GEAR-TRANSMISSION SPU 13129H 13129-1699 1
WASHER-PLAIN 92022 92022-198 3
CIRCLIP,25MM 92033 92033-025 3
CIRCLIP 92033A 92033-028 3
