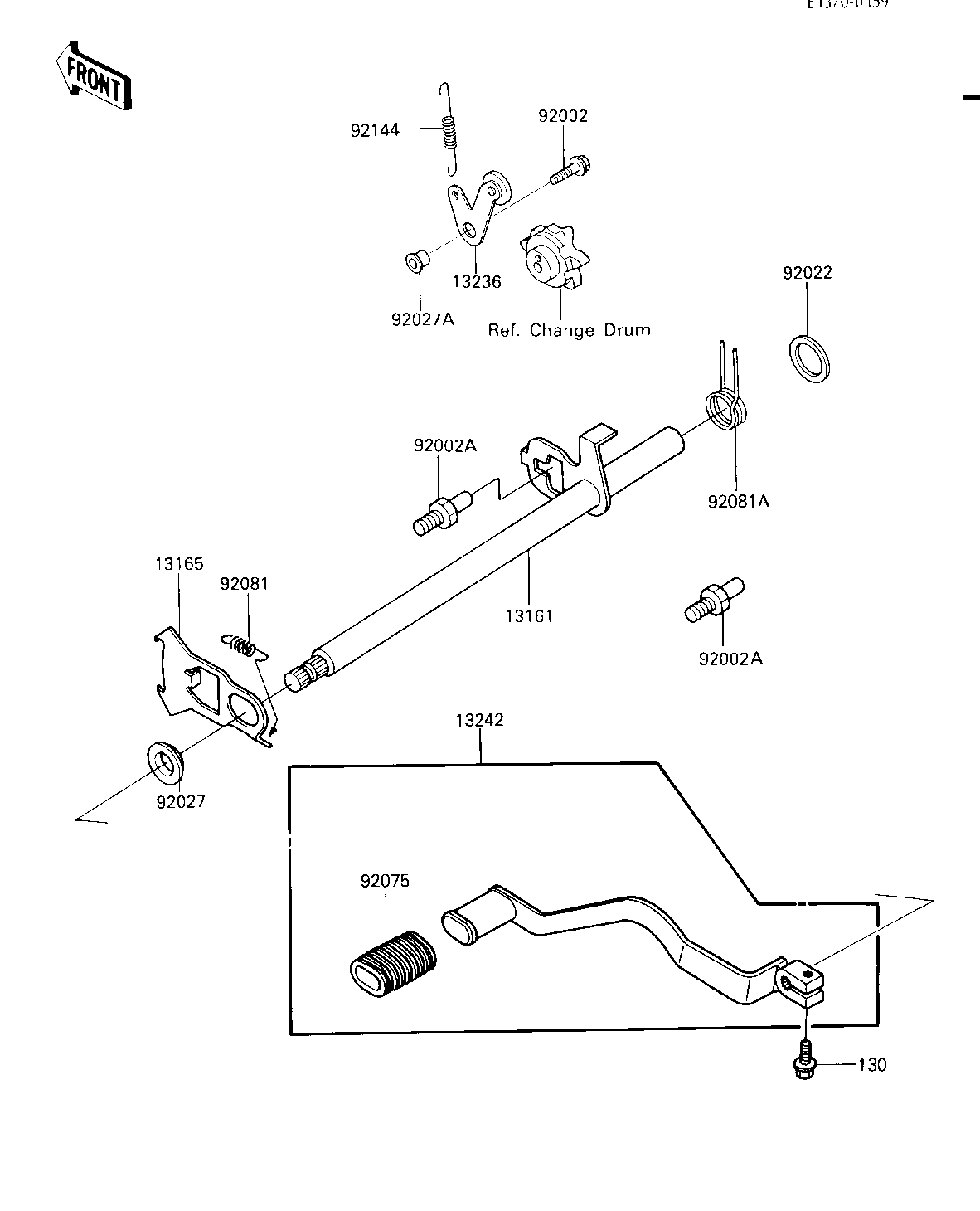

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-COMP-CHANGE SHA 13161 13161-1110 1
PAWL,CHANGE LEVER 13165 13165-1112 1
LEVER-COMP,NEUTRAL PO 13236 13236-1145 1
LEVER-ASSY-CHANGE,PED 13242 13242-1168 1
BOLT,6X20 92002 92002-1237 1
BOLT,RETURN SPRING 92002A 92002-1408 2
WASHER PLAIN 92022 92022-057 1
COLLAR,CHANGE SHAFT,L 92027 92027-1512 1
COLLAR,L=5.2 92027A 92027-1716 1
DAMPER,CHANGE PEDAL 92075 92075-1585 1
SPRING,CHANGE LEVER 92081 92081-1753 1
SPRING,CHANGE SHAFT R 92081A 92081-1987 1
SPRING 92144 92144-1003 1
BOLT-FLANGED,6X20,BLA 130 130S0620 1
