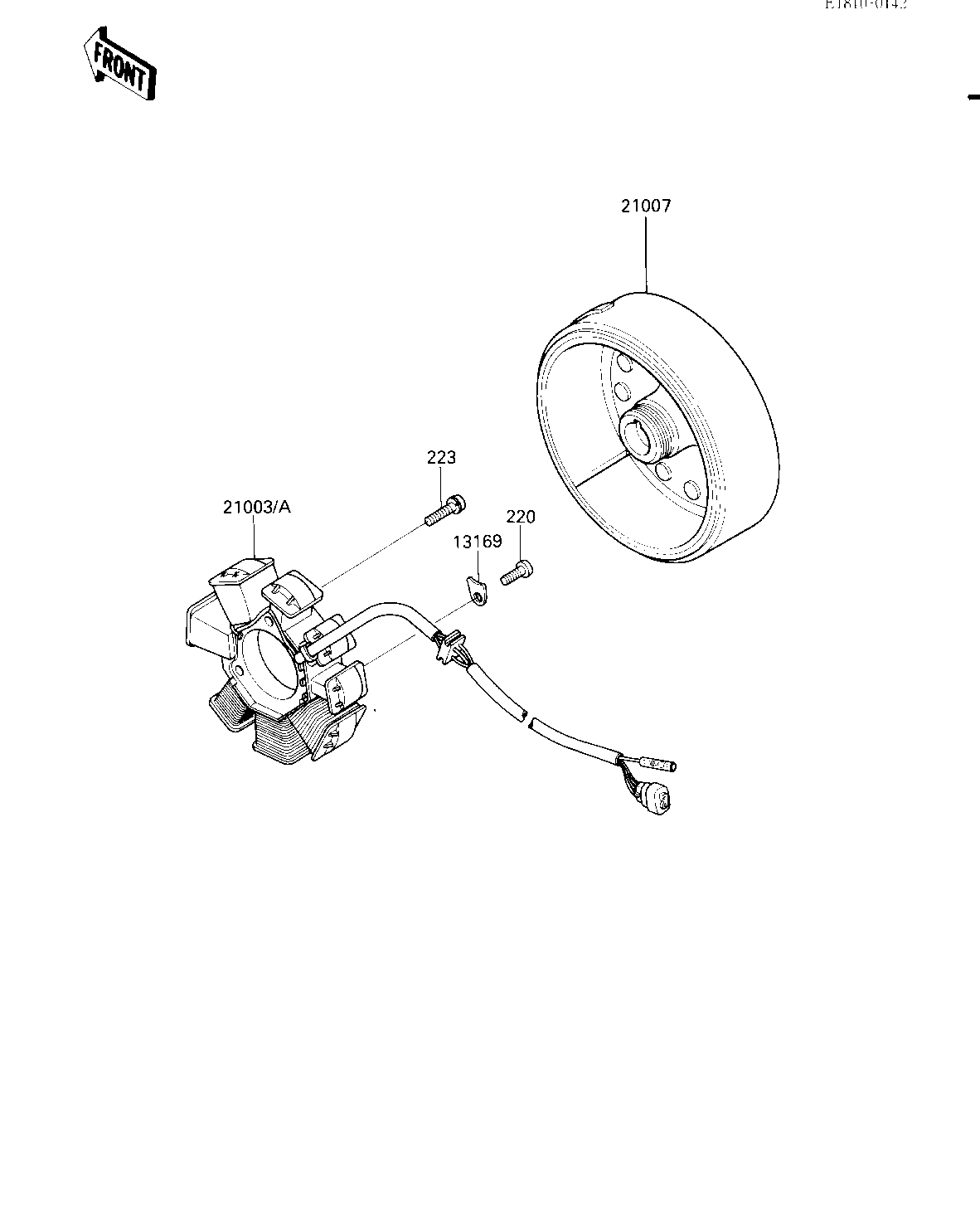

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,HARNESS 13169 13169-1788 1
STATOR 21003A 21003-1163 1
ROTOR 21007 21007-1138 1
SCREW PAN HEAD 6X12 220 220B0612 1
SCREW-PAN-WS-CROS 223 223B0530 3
