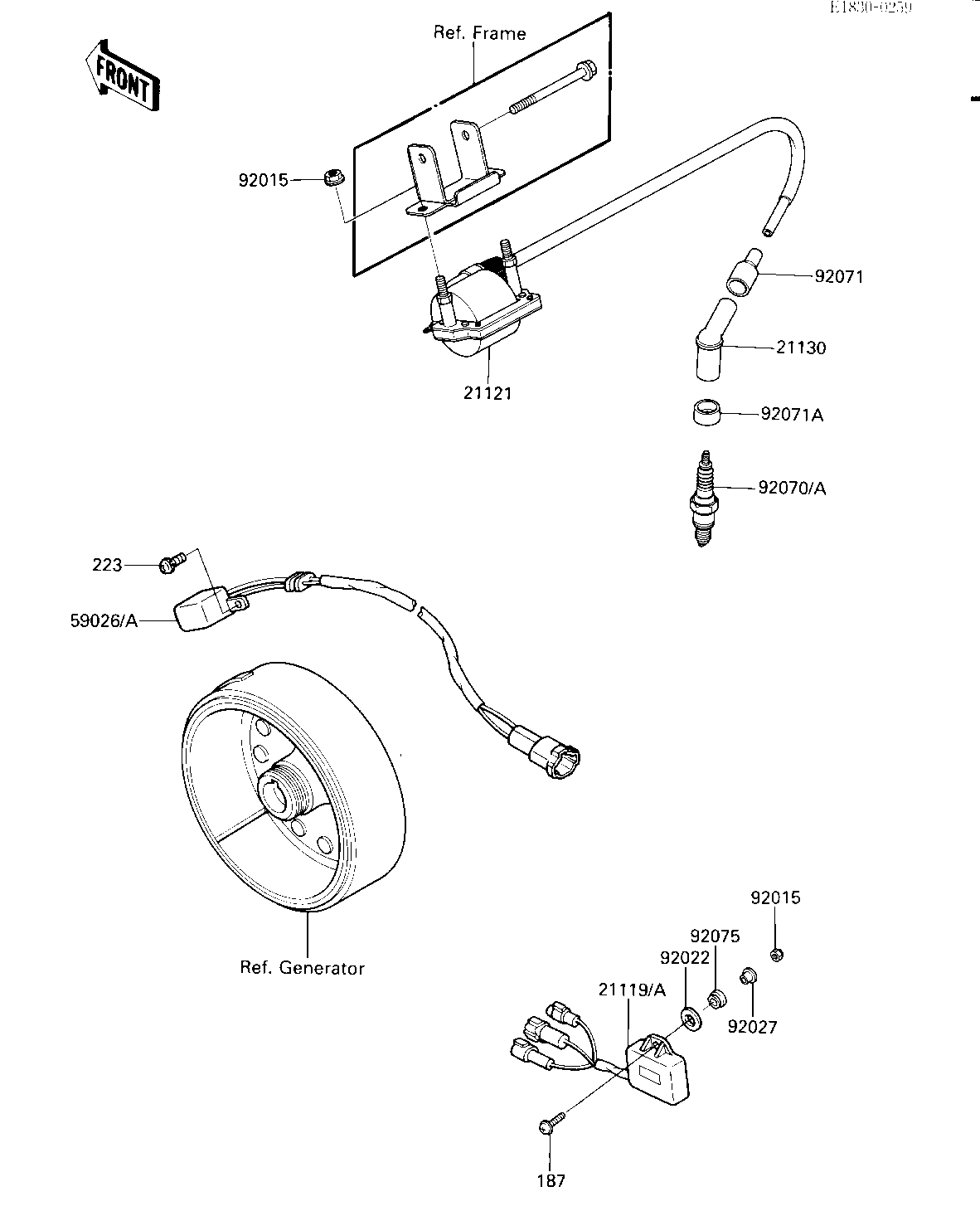

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
IGNITER 21119A 21119-1212 1
COIL-IGNITION 21121 21121-1121 1
CAP,SPARK PLUG"LD05F" 21130 21130-1003 1
COIL-PULSING 59026A 59026-1083 1
NUT-6MM 92015 92015-1078 3
WASHER 6.5X20X1.6T 92022 92022-125 1
COLLAR 92027 92027-1045 1
SPARK PLUG D8EA 92070 D8EA 1 US
GROMMET,SPARK PLG CAP 92071 21132-005 1
GROMMET,SPARK PLUG 92071A 92071-1015 1
DAMPER RUBBER 92075 92075-277 1
BOLT 6X30 WSP 187 187B0630 1
SCREW-PAN-WS-CROS 223 223B0512 2
