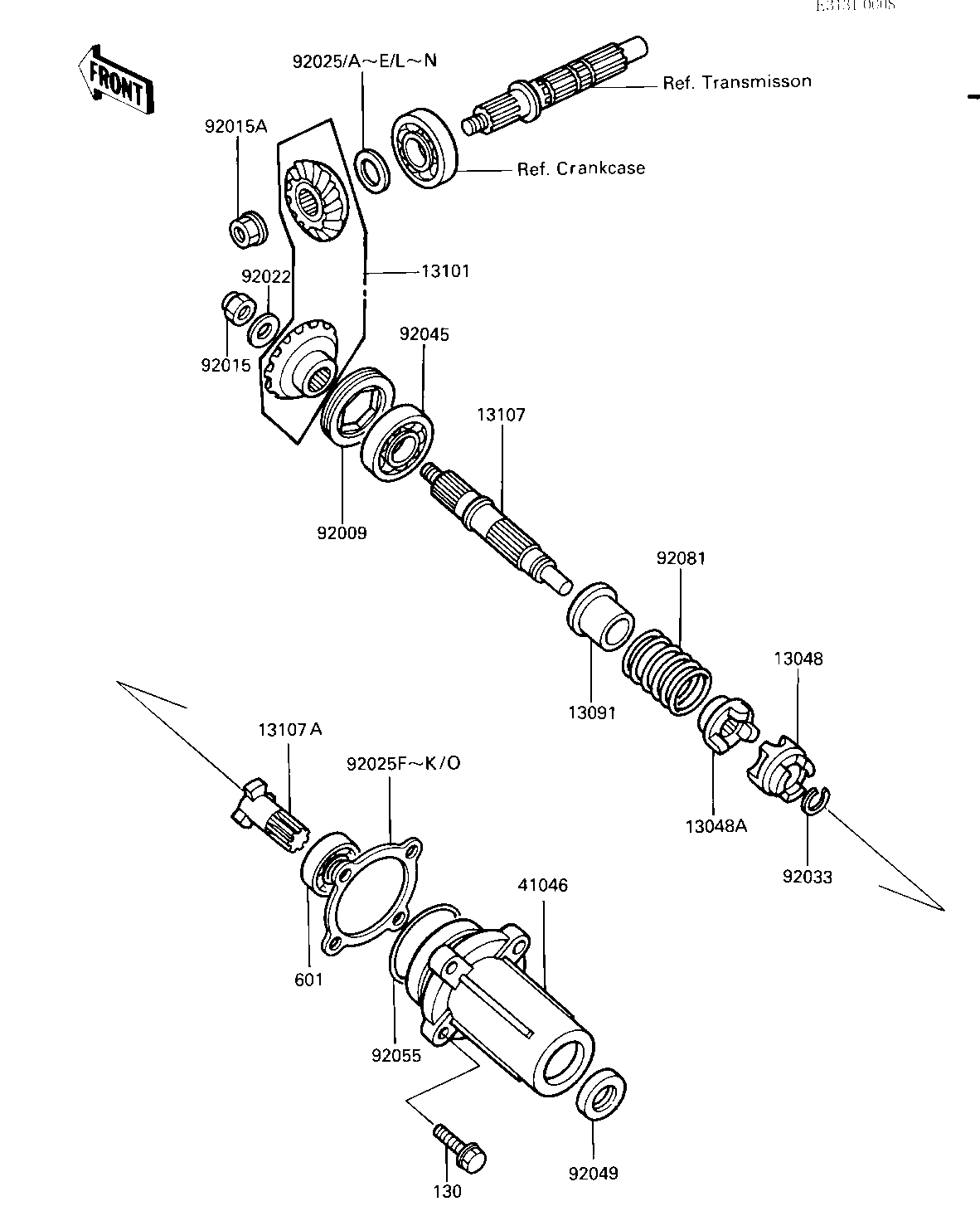

1987 KLT185 - FRONT BEVEL GEARS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAM-DAMPER 13048 13048-1053 1
CAM-DAMPER 13048A 13048-1054 1
HOLDER 13091 13091-1278 1
GEAR-ASSY,FRONT BEVEL 13101 13101-5047 1
SHAFT,BEVEL GEAR,FR 13107 13107-1109 1
SHAFT,BEVEL GEAR,RR 13107A 13107-1110 1
HOUSING-BEARING 41046 41046-1051 1
SCREW 92009 92009-1290 1
NUT,12MM 92015 92015-1182 1
NUT,FLANGED,14MM 92015A 92015-1341 1
WASHER 92022 92022-1611 1
SHIM,20.3X28X1.3 92025 92025-1533 AR
SHIM,20.3X28X0.7 92025A 92025-1534 AR
SHIM,20.3X28X0.8 92025B 92025-1535 AR
SHIM,20.3X28X0.9 92025C 92025-1536 AR
SHIM,20.3X28X1.0 92025D 92025-1537 AR
SHIM,20.3X28X1.2 92025E 92025-1538 AR
SHIM,T=0.1 92025F 92025-1539 AR
SHIM,T=0.7 92025G 92025-1540 AR
SHIM,T=0.8 92025H 92025-1541 AR
SHIM,T=0.9 92025I 92025-1542 AR
SHIM,T=1.0 92025J 92025-1543 AR
SHIM,T=1.2 92025K 92025-1544 AR
SHIM,20.3X28X0.15 92025L 92025-1573 AR
SHIM,20.3X28X0.20 92025M 92025-1574 AR
SHIM,20.3X28X1.1 92025N 92025-1575 AR
SHIM,T=0.15 92025O 92025-1576 AR
RING,SNAP 92033 92033-1060 1
BEARING-BALL,TMB304CC 92045 92045-1142 1
SEAL-OIL 92049 92049-1169 1
"0" RING,I.D=57.6MM 92055 92055-1038 1
SPRING 92081 92081-1647 1
BOLT-FLANGED,8X30 130 130P0830 4
BEARING BALL #6004 601 601B6004 1
