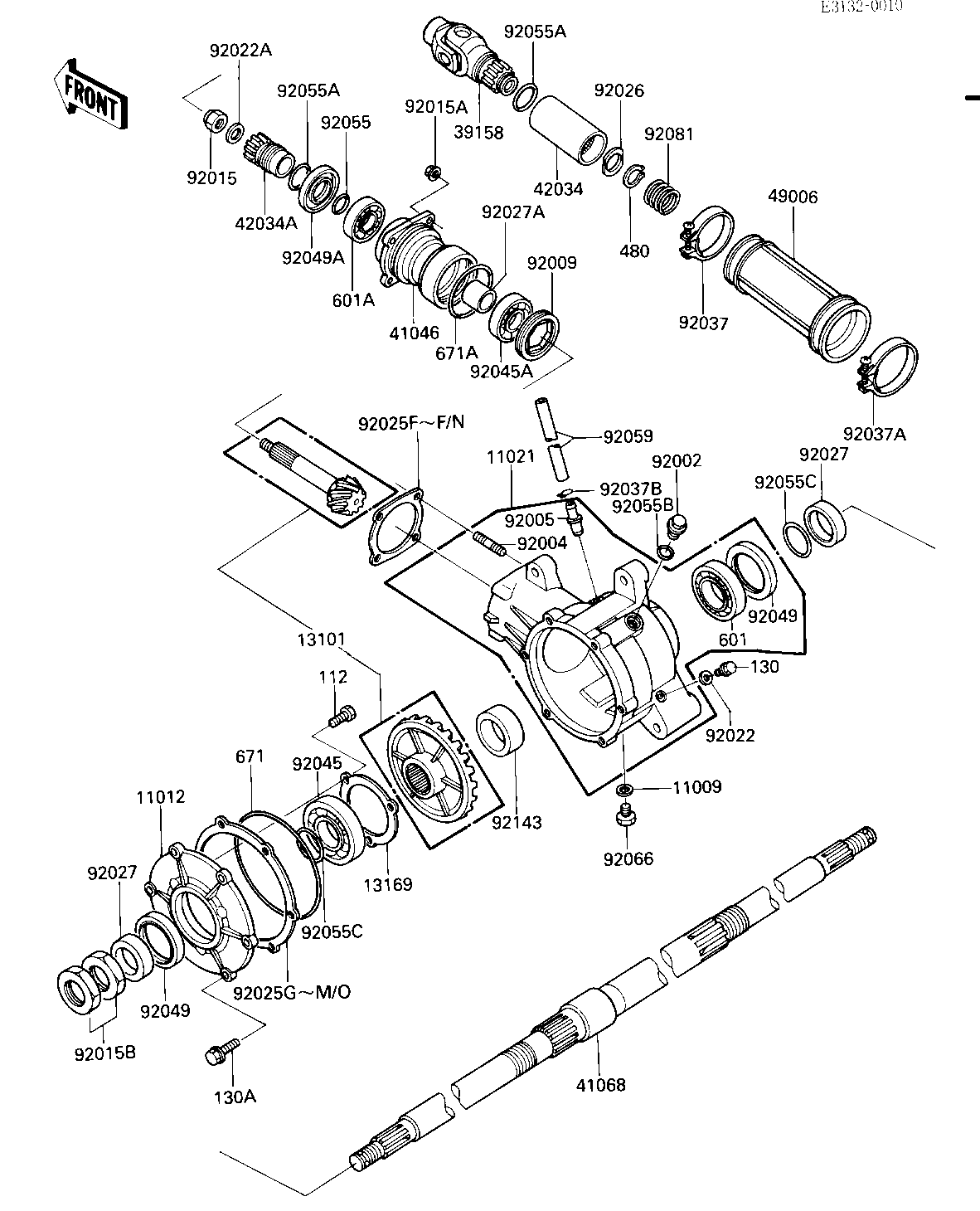

1987 KLT185 - DRIVE SHAFT/FINAL GEARS/REAR AXLE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET CHECK VALVE 11009 92065-058 1
CAP 11012 11012-1375 1
CASE-ASSY,FINAL GEAR 11021 11021-1051 1
GEAR-ASSY 13101 13101-5055 1
PLATE 13169 13169-1751 1
SHAFT-ASSY-DRIVE 39158 39158-1055 1
HOUSING-BEARING 41046 41046-1052 1
AXLE,FINAL 41068 41068-1242 1
COUPLING,DRIVE SHAFT 42034 42034-1058 1
COUPLING 42034A 42034-1059 1
BOOT 49006 49006-1160 1
BOLT,16X10 92002 92002-1238 1
STUD,6X18 92004 92004-1127 4
FITTING,BREATHER 92005 92005-1127 1
SCREW 92009 92009-1290 1
NUT,12MM 92015 92015-1182 1
NUT,6MM 92015A 92015-1365 4
NUT,LOCK,32MM 92015B 92015-1493 2
WASHER OIL PUMP BANJO 92022 92022-077 1
WASHER,12X3X25X3.2 92022A 92022-1293 1
SHIM,T=0.1 92025 92025-1545 AR
SHIM,T=0.5 92025A 92025-1546 AR
SHIM,T=0.7 92025B 92025-1547 AR
SHIM,T=0.8 92025C 92025-1548 AR
SHIM,T=0.9 92025D 92025-1549 AR
SHIM,T=1.0 92025E 92025-1550 AR
SHIM,T=1.2 92025F 92025-1551 AR
SHIM,T=0.1 92025G 92025-1552 AR
SHIM,T=0.5 92025H 92025-1553 AR
SHIM,T=0.7 92025I 92025-1554 AR
SHIM,T=0.8 92025J 92025-1555 AR
SHIM,T=0.9 92025K 92025-1556 AR
SHIM,T=1.0 92025L 92025-1557 AR
SHIM,T=1.2 92025M 92025-1558 AR
SHIM,T=0.15 92025N 92025-1577 AR
SHIM,T=0.15 92025O 92025-1578 AR
SPACER,DRIVE SHAFT 92026 92026-1106 1
COLLAR,L=13.5 92027 92027-1718 2
COLLAR 92027A 92027-1724 1
CLAMP 92037 92037-1523 1
CLAMP 92037A 92037-1554 1
CLAMP 92037B 92037-1610 1
BEARING-BALL 92045 92045-1110 1
BEARING-BALL,TMB304CC 92045A 92045-1142 1
SEAL-OIL 92049 92049-1167 2
SEAL-OIL 92049A 92049-1170 1
"0" RING 92055 92055-022 1
RING-0,27MM 92055A 92055-1119 2
RING-O,ID=13.8 92055B 92055-1141 1
RING-0,33X1.6 92055C 92055-4002 2
TUBE,6X9X750 92059 92059-1372 1
PLUG OIL DRAIN 92066 92067-001 1
SPRING 92081 92081-1650 1
COLLAR 92143 92143-1003 1
BOLT-UPSET,6X12 112 112G0612 3
BOLT-FLANGED 130 130H0608 1
BOLT-FLANGED 130A 130H0620 6
CIRCLIP, 20MM 480 480J2000 1
BEARING-BALL 601 601B6007 1
BEARING BALL #6204 601A 601B6204 1
O RING 671 671B25125 1
"0" RING,60MM 671A 671B2560 1
