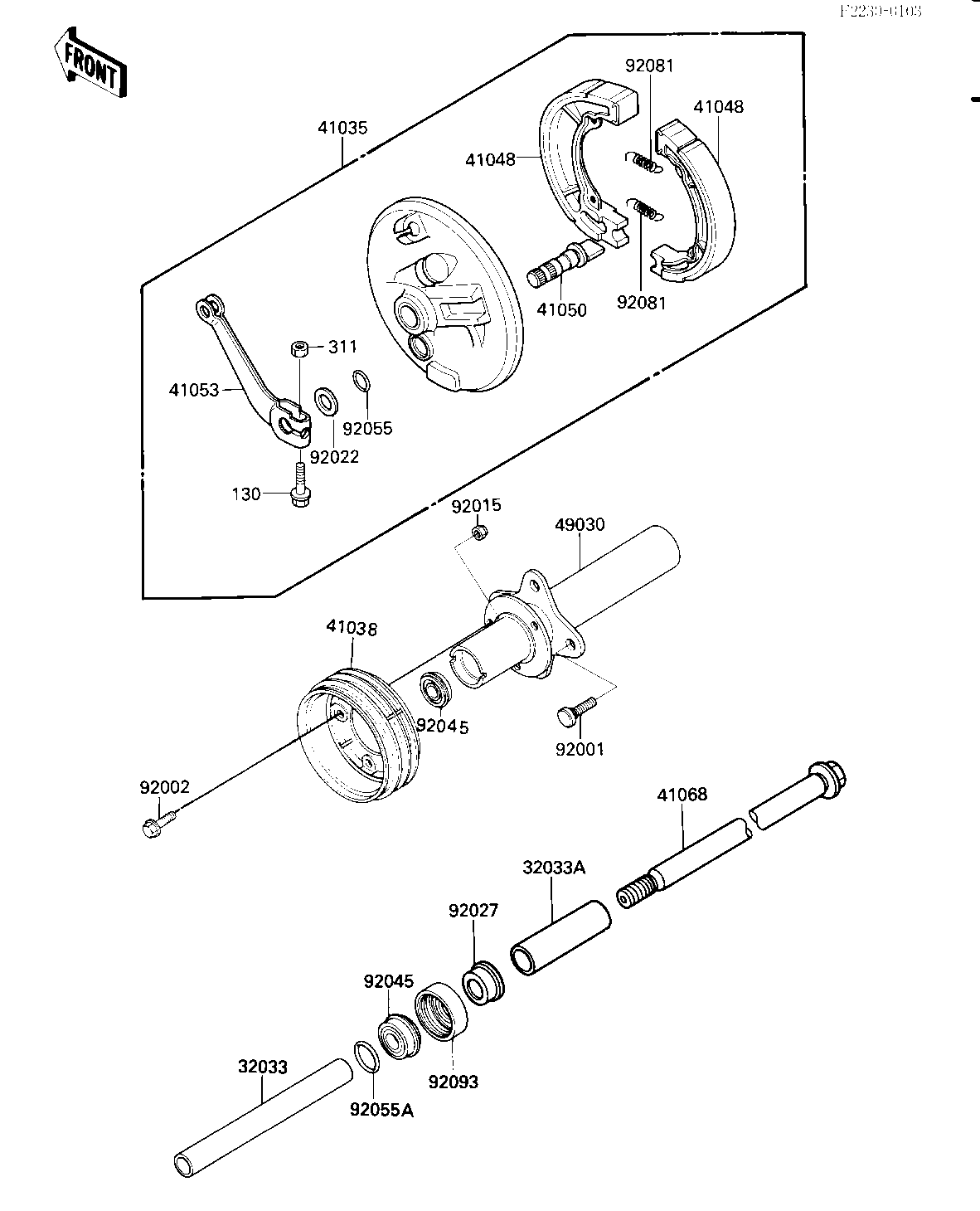

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PIPE,FR-HUB | 32033 | 32033-1321 | 1 | ||
PIPE,FRONT HUB,L=70 | 32033A | 32033-1325 | 1 | ||
PANEL-ASSY-BRAKE,FR | 41035 | 41035-1171 | 1 | ||
DRUM,FR | 41038 | 41038-1119 | 1 | ||
SHOE-BRAKE | 41048 | 41048-1085 | 2 | ||
CAM-BRAKE | 41050 | 41050-1056 | 1 | ||
LEVER-BRAKE CAM | 41053 | 41053-1055 | 1 | ||
AXLE,FR,L=345 | 41068 | 41068-1173 | 1 | ||
HUB-FR,G.SILVER | 49030 | 49030-1056-F2 | 1 | ||
BOLT,LUG | 92001 | 92001-4006 | 4 | ||
BOLT,FLANGED,10X22 | 92002 | 92002-1312 | 3 | ||
NUT,10MM | 92015 | 92015-1429 | 3 | ||
WASHER | 92022 | 92022-257 | 1 | ||
COLLAR | 92027 | 92027-1783 | 1 | ||
BEARING BALL HUB-ASSY | 92045 | 92045-4005 | 2 | ||
"0" RING,11MM | 92055 | 92055-004 | 1 | ||
"0" RING | 92055A | 92055-4001 | 1 | ||
SPRING,BRAKE SHOE | 92081 | 92081-1766 | 2 | ||
SEAL,FR HUB | 92093 | 92093-1157 | 1 | ||
BOLT,FLANGED,6X30 | 130 | 130G0630 | 1 | ||
NUT 6MM | 311 | 311B0600 | 1 |
PIPE,FR-HUB | |
REF # | 32033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE,FRONT HUB,L=70 | |
REF # | 32033A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PANEL-ASSY-BRAKE,FR | |
REF # | 41035 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DRUM,FR | |
REF # | 41038 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHOE-BRAKE | |
REF # | 41048 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAM-BRAKE | |
REF # | 41050 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-BRAKE CAM | |
REF # | 41053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
AXLE,FR,L=345 | |
REF # | 41068 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HUB-FR,G.SILVER | |
REF # | 49030 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,LUG | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,10X22 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
NUT,10MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING BALL HUB-ASSY | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
"0" RING,11MM | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"0" RING | |
REF # | 92055A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,BRAKE SHOE | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL,FR HUB | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X30 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT 6MM | |
REF # | 311 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
