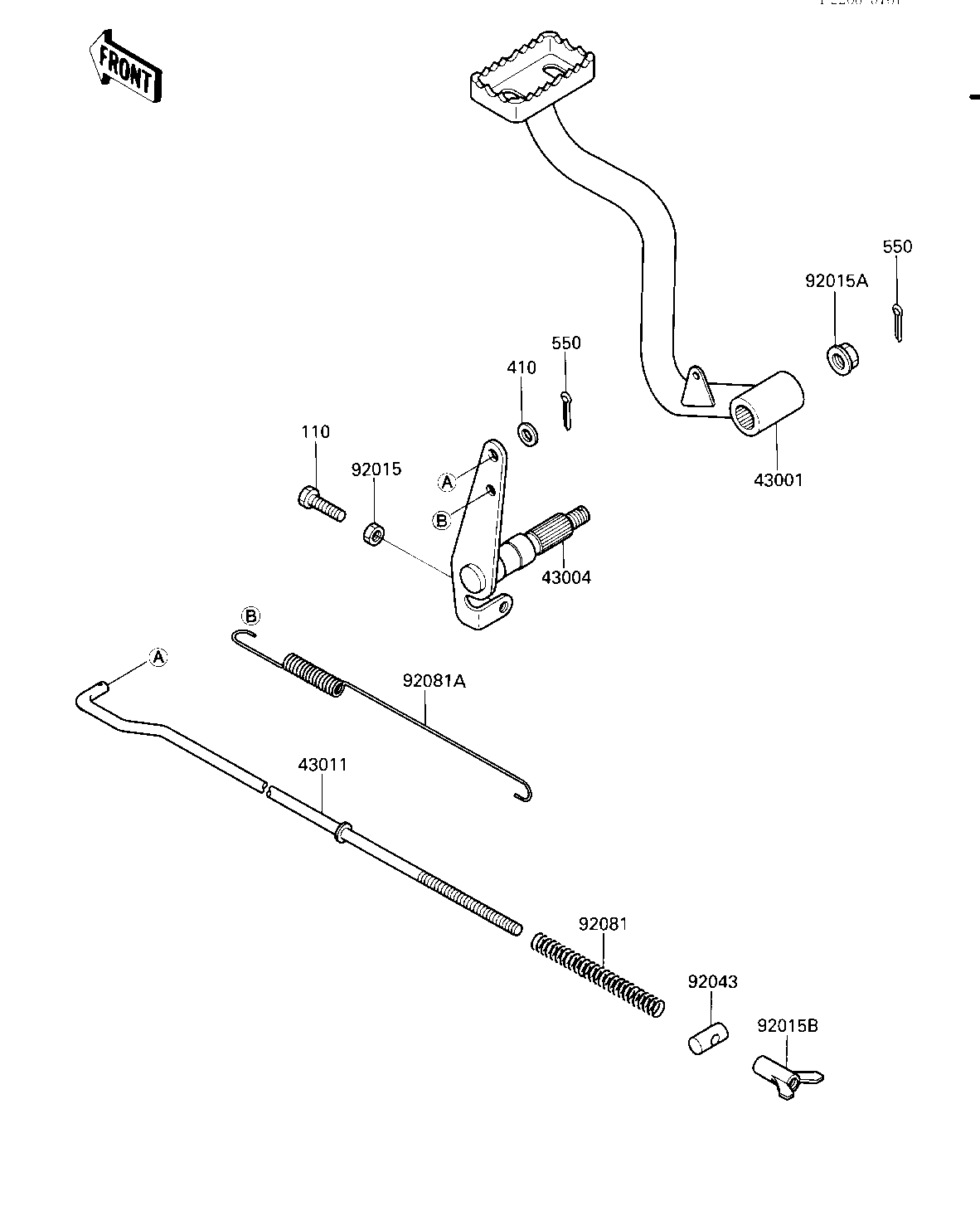

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-BRAKE,PEDAL 43001 43001-1162 1
SHAFT-BRAKE 43004 43004-1114 1
ROD-BRAKE 43011 43011-1106 1
NUT,6MM 92015 92015-1410 1
NUT,10MM 92015A 92015-1415 1
NUT,WING,6MM 92015B 92015-1497 1
PIN,12X20 92043 92043-1280 1
SPRING,BRAKE ROD 92081 43012-001 1
SPRING,BRAKE PEDAL RE 92081A 92081-1939 1
BOLT 110 110D0622 1
WASHER PLAIN 6MM 410 410B0600 1
PIN COTTER 2.0X15 550 550D2015 2
