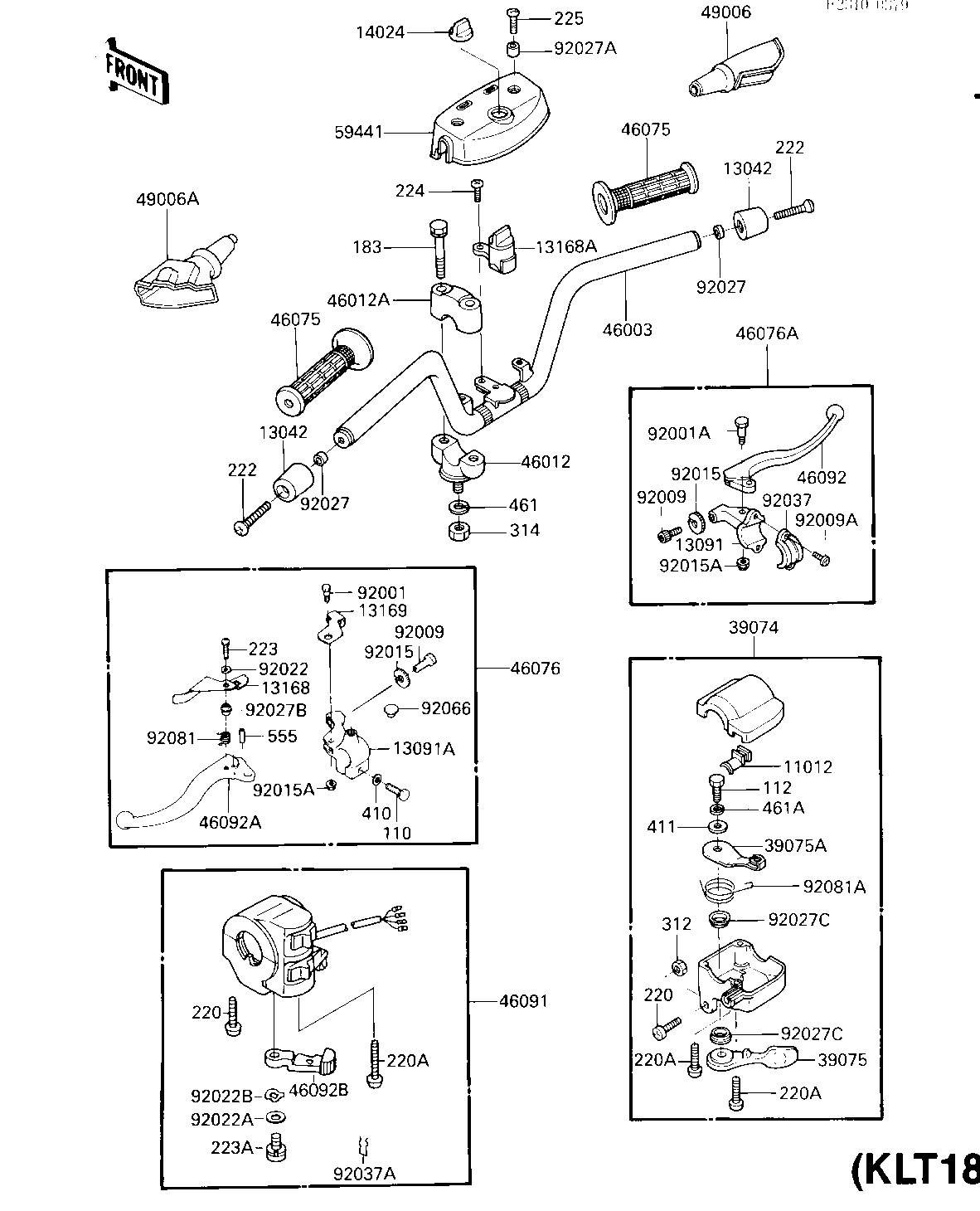

1987 KLT185 - HANDLEBAR (KLT185-A2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1425 1
WEIGHT,HANDLE 13042 13042-1060 2
HOLDER,RH 13091 13091-1418 1
HOLDER-CLUTCH LEV,BLK 13091A 46094-011-21 1
LEVER,LOCK 13168 13168-1224 1
LEVER,REVERSE 13168A 13168-1274 1
PLATE,CLUTCH LOCK 13169 13169-1398 1
COVER,REVERSE LEVER 14024 14024-1150 1
LEVER-ASSY-THROTTLE 39074 39074-1052 1
LEVER-THROTTLE 39075 39075-1053 1
LEVER-THROTTLE,ARM 39075A 39075-1054 1
UNAVAILABLE IN PRICE BOOK 46003 46003-1233 1
HOLDER,HANDLEBAR,BUFF 46012 46012-002-80 2
HOLDER UPPER HANDLBAR 46012A 46012-004 2
GRIP,RH 46075 46075-4003 2
LEVER-ASSY-GRIP,CLUTC 46076 46076-1115 1
LEVER-ASSY-GRIP,RH 46076A 46076-1134 1
HOUSING-ASSY-CONTROL, 46091 46091-1414 1
LEVER,FRONT BRAKE 46092 46092-1014 1
LEVER-GRIP,CLUTCH 46092A 46092-1107 1
LEVER-GRIP,CHOKE 46092B 46092-1139 1
BOOTS,LEVER HOLDER 49006 49006-1017 1
BOOT,CLUTCH LEVER 49006A 49006-1057 1
COVER-HANDLE 59441 59441-1064 1
BOLT,5MM 92001 92007-039 1
BOLT,HEX HEAD,5X22 92001A 92007-046 1
SCREW CABLE ADJUST 92009 46055-003 2
SCREW,5X18 92009A 92009-1367 2
NUT-LOCK 92015 46056-005 2
NUT-LOCK,5MM 92015A 92019-014 2
WASHER,4X12X1 92022 92022-1245 1
WASHER,5MM 92022A 92022-1837 1
WASHER,WAVE,5MM 92022B 92022-1838 1
COLLAR,6.3X10X4.8 92027 92027-1066 2
COLLAR,6.8X10X8.5 92027A 92027-129 2
COLLAR,RETURN SPRING 92027B 92027-1336 1
COLLAR 92027C 92027-1982 2
CLAMP,LEVER HOLDER 92037 92037-1621 1
CLAMP,CLIP 92037A 92037-1836 1
PLUG,9.5X8 92066 92066-1077 1
SPRING,CLUTCH LOCK RE 92081 92081-1358 1
SPRING 92081A 92081-1685 1
BOLT HEX HEAD 6X25 110 110N0625 1
BOLT-UPSET 112 112D0614 1
BOLT-UPSET-WS-SMALL 183 183B0835 4
SCREW-PAN-CROS 220 220C0525 2
SCREW-PAN-CROS 220A 220C0530 3
SCREW-CSK-RD-CROS 222 222C0640 2
SCREW-PAN-WS-CROS 223 223B0420 1
SCREW-PAN-WS-CROS 223A 223C0512 1
SCREW-PAN-WP-CROS,5X2 224 224B0520 2
SCREW-PAN-WSP-CROS,6X 225 225C0620 2
NUT-HEX 312 312C0500 1
NUT,10MM 314 314B1000 2
WASHER PLAIN 6MM 410 410B0600 1
WASHER PLAIN 6MM 411 410B0600 1
WASHER SPRING 10MM 461 461F1000 2
WASHER SPRING 6MM 461A 461F0600 1
PIN-SPRING,3X16 555 555A0316 1
