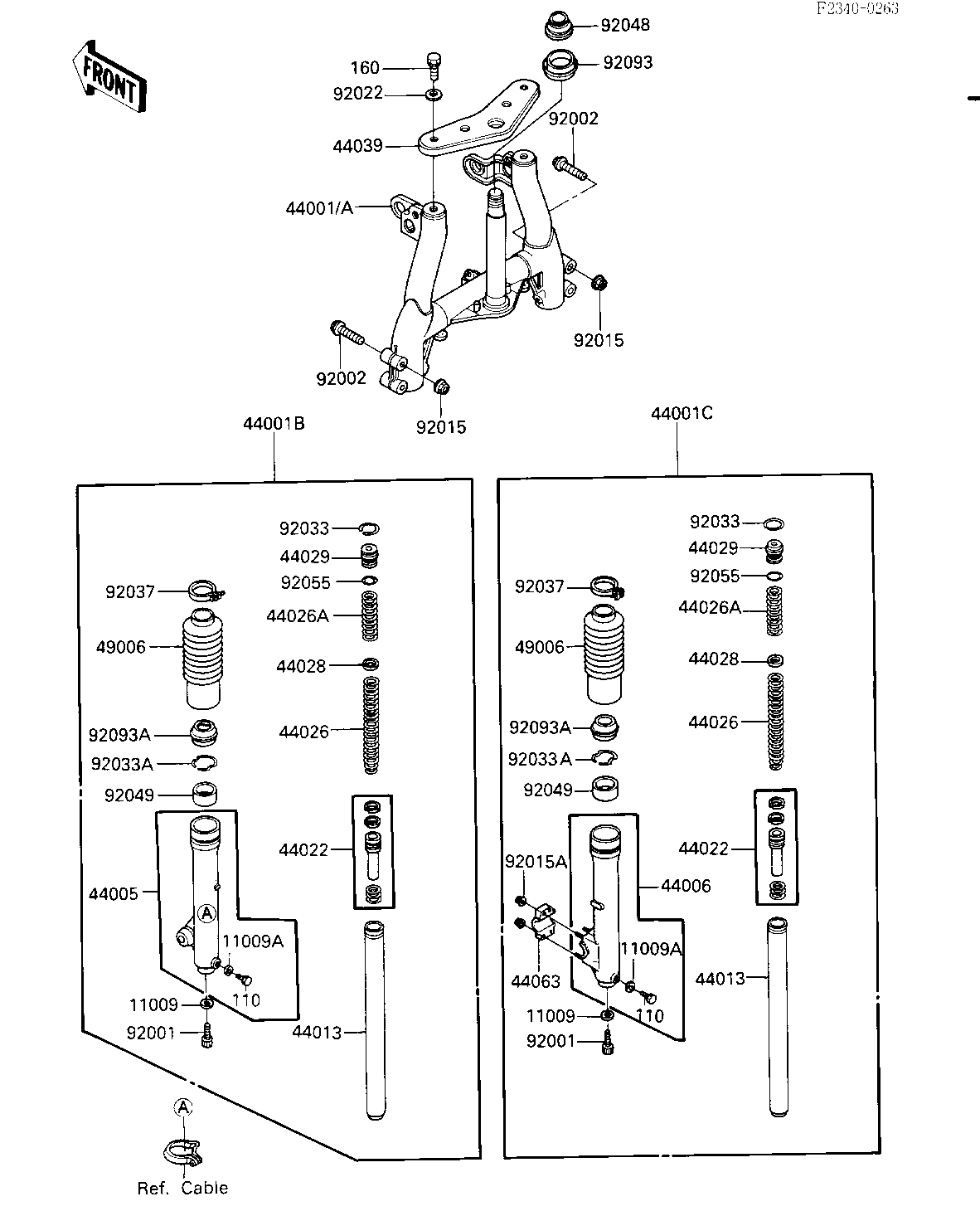

1987 KLT185 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYL BOLT 11009 44045-051 2
GASKET,DRAIN PLUG 11009A 44045-047 2
FORK-FRONT,W.RED 44001 44001-1592-B1 1
FORK-FRONT EBONY 44001A 44001-1592-8G 1
FORK-FRONT,LH 44001B 44001-1613 1
FORK-FRONT,RH 44001C 44001-1614 1
PIPE-LEFT FORK OUTER 44005 44005-1240 1
PIPE-RIGHT FORK OUTER 44006 44006-1239 1
PIPE-FORK INNER 44013 44013-1215 2
CYLINDER-FORK 44022 44022-1164 2
SPRING-FRONT FORK 44026 44026-1270 2
SPRING-FRONT FORK 44026A 44026-1271 2
GUIDE-FORK SPRING 44028 44028-1053 2
GUIDE,SPRING 44029 44029-022 2
HOLDER FORK UPPER-BLK 44039 44039-4006 1
HOLDER-FRONT AXLE 44063 44063-1052 1
BOOT,FORK 49006 49006-1163 2
BOLT,FORK DRAIN 92001 92001-1464 2
BOLT,FLANGED,10X50 92002 92002-1314 4
NUT,FLANGED,10MM,BLAC 92015 92015-1180 4
NUT,FLANGED 92015A 92015-1399 4
WASHER,10.5X35X4,BLAC 92022 92022-4027 2
CIRCLIP 92033 44044-023 2
CIRCLIP,FORK OUTER 92033A 92033-1028 2
CLAMP 92037 92037-1519 2
CONE STERNG BERG LOW 92048 92047-010 1
OIL SEAL 92049 92049-1069 2
"O" RING 92055 44046-025 2
SEAL,STEERING STEM 92093 44010-027 1
SEAL,FORK OUTER 92093A 92093-1167 2
BOLT HEX HEAD 6X8 110 110B0608 2
BOLT-FINE-WS 160 160J1030 2
