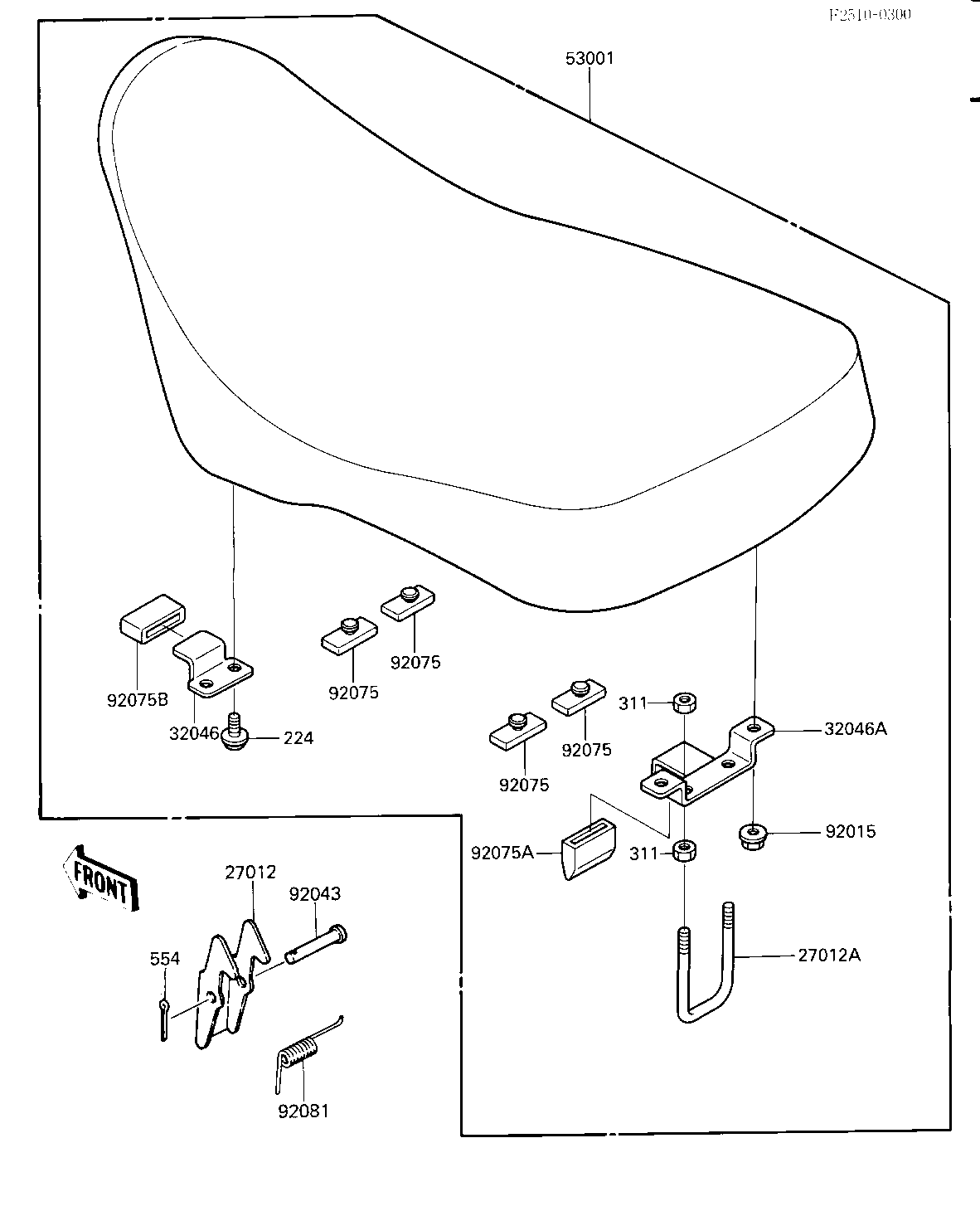

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOOK 27012 27012-4009 1
HOOK,SEAT 27012A 27012-4010 1
BRACKET-SEAT,FR 32046 32046-4018 1
BRACKET,SEAT,RR 32046A 32046-4025 1
SEAT-ASSY 53001 53001-1429 1
NUT-6MM 92015 92015-1078 2
PIN, DUAL SEAT PIVOT 92043 53011-006 1
DAMPER RUBBER,SEAT 92075 92075-1054 4
DAMPER RUBBER,SEAT 92075A 92075-219 1
DAMPER,SEAT 92075B 92075-4039 1
SPRING 92081 92081-4020 1
SCREW,6X14 224 92009-1333 2
NUT 6MM 311 311B0600 4
PIN,SNAP 554 554A0600 1
